Section 107 (Power Control System -- G37 Coupe)
›
IPDM E/R
›
Removal And Installation
›
IPDM E/R (Intelligent Power Distribution Module Engine Room)
›
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

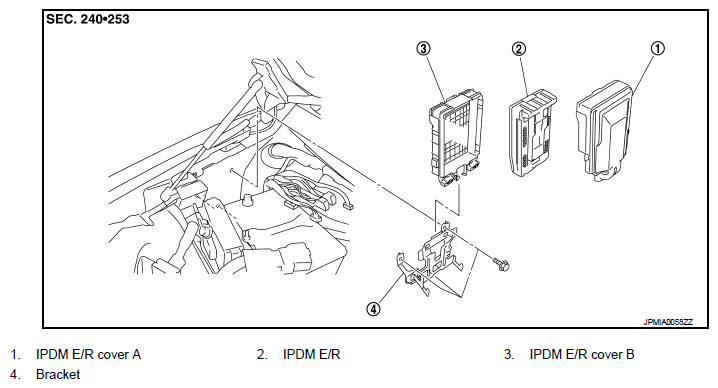

Fig 1: Exploded View Of IPDM E/R Cover A, IPDM E/R, IPDM E/R B And Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
