Exploded View

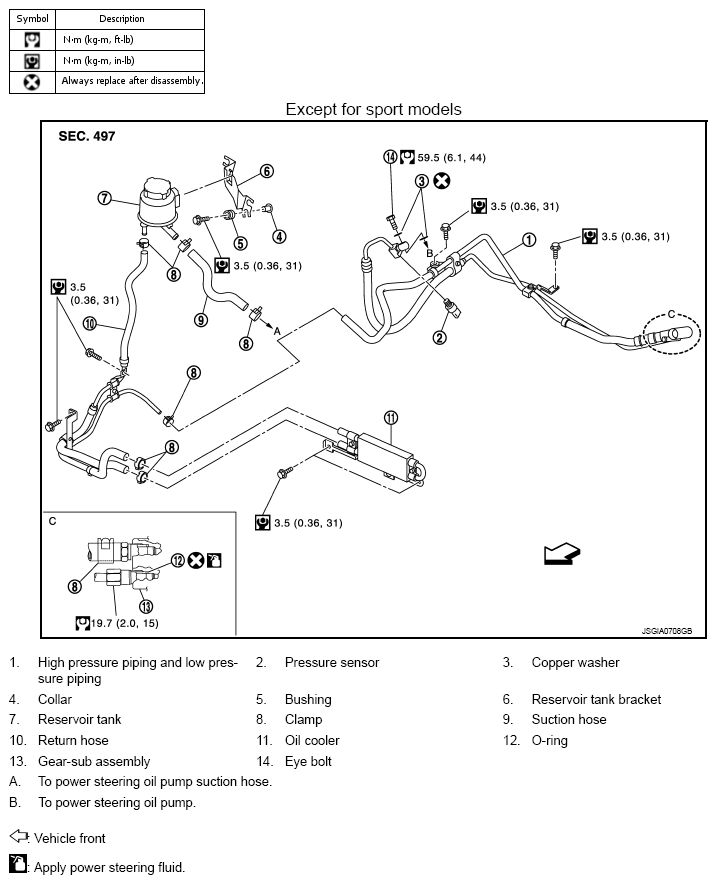

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (Except For Sport Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

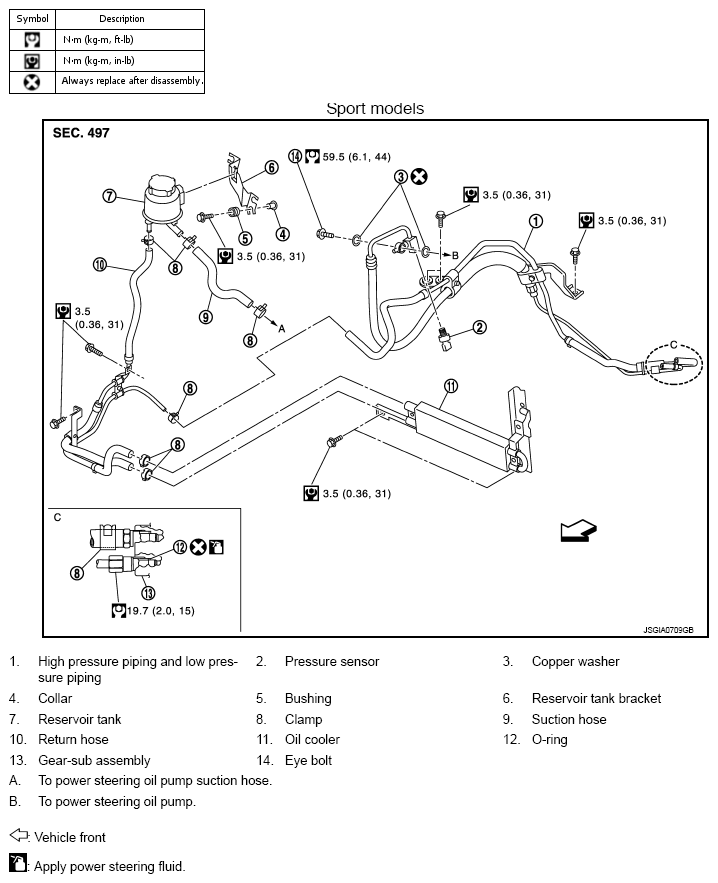

Fig 2: Exploded View Of Hydraulic Line With Torque Specifications (Sport Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
