Exploded View

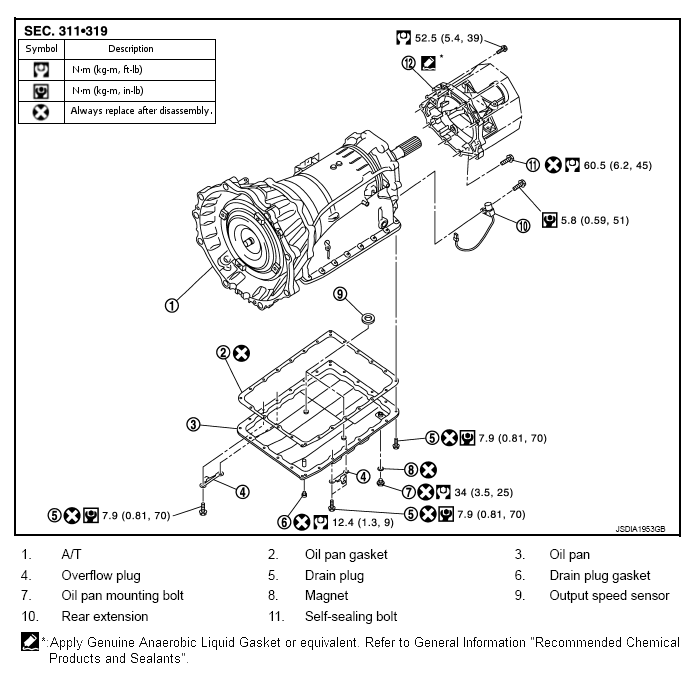

Fig 1: Exploded View Of Output Speed Sensor With Torque Specifications

G07160367

Refer to "COMPONENTS " for symbols not described on the above.
