Exploded View

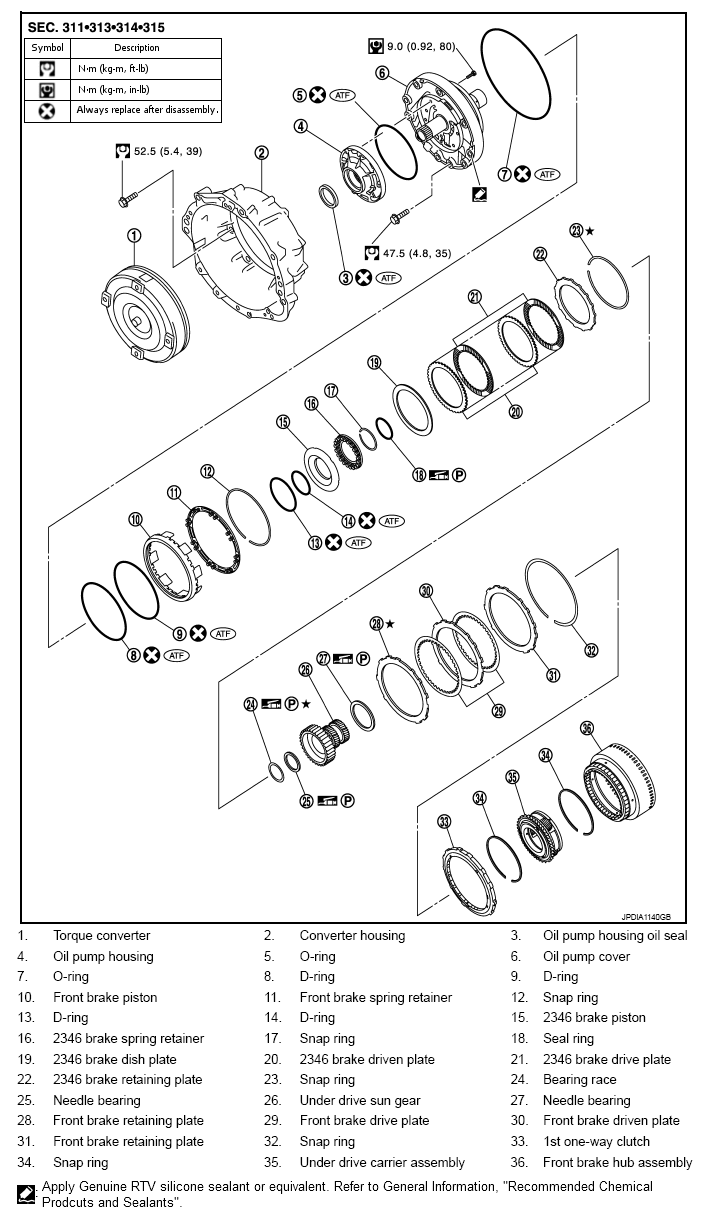

Fig 1: Exploded View Of Transmission Assembly Components With Torque Specifications
G07160404

Refer to "COMPONENTS " for symbols not described on the above.

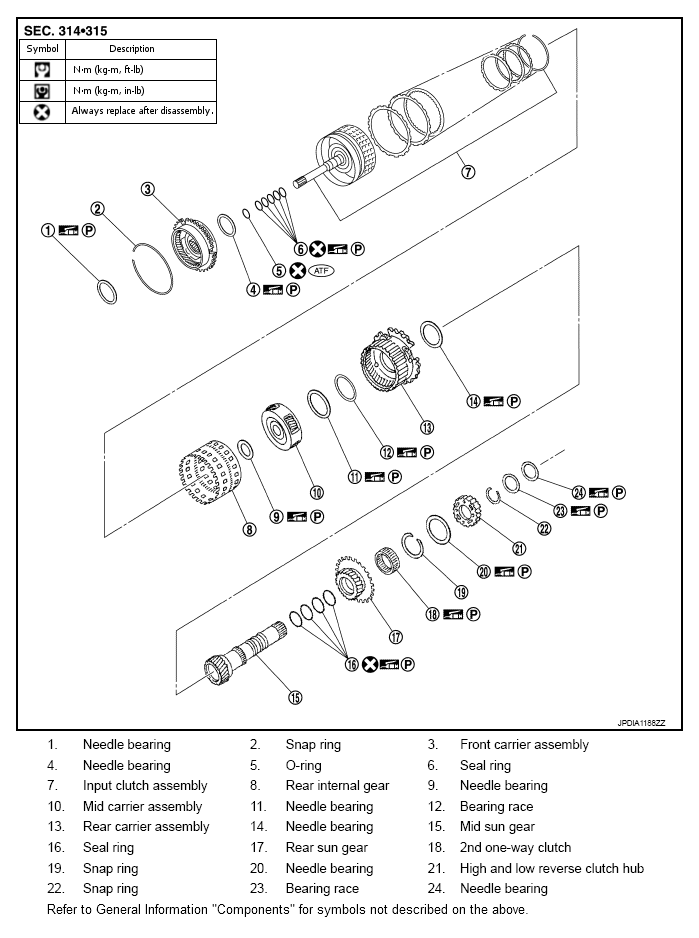

Fig 2: Exploded View Of Transmission Assembly Components
G07160405

Refer to "COMPONENTS " for symbols not described on the above.

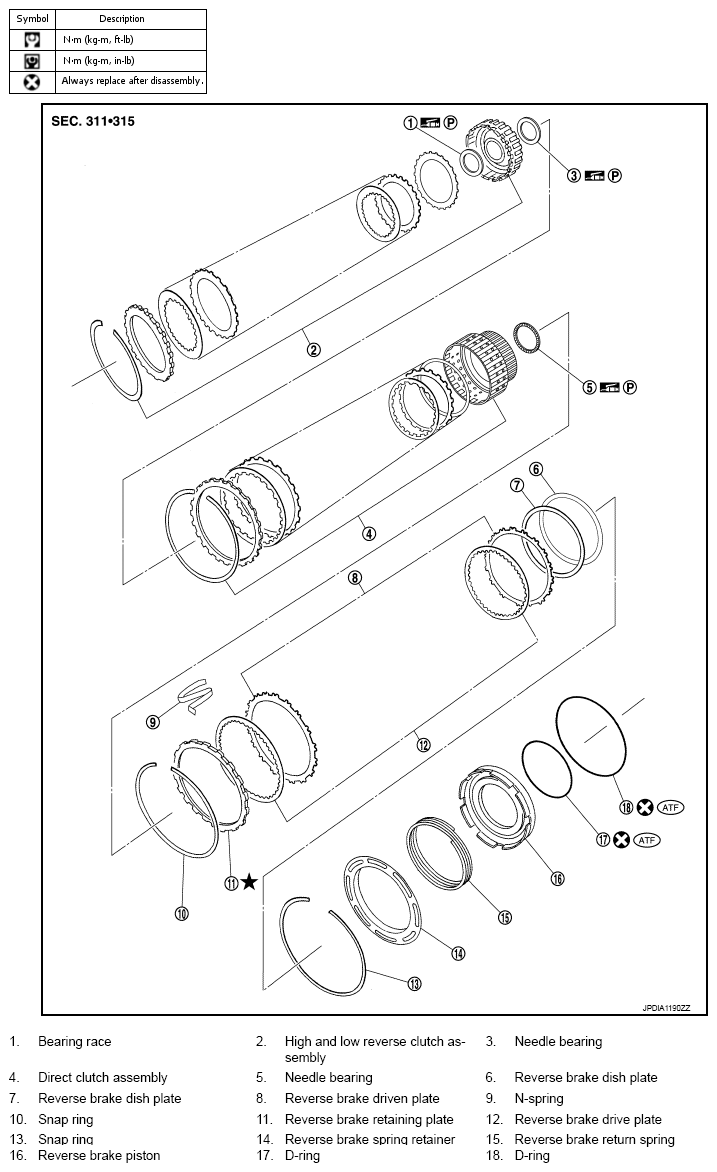

Fig 3: Exploded View Of Transmission Assembly Components
G07160406

Refer to "COMPONENTS " for symbols in the figure.

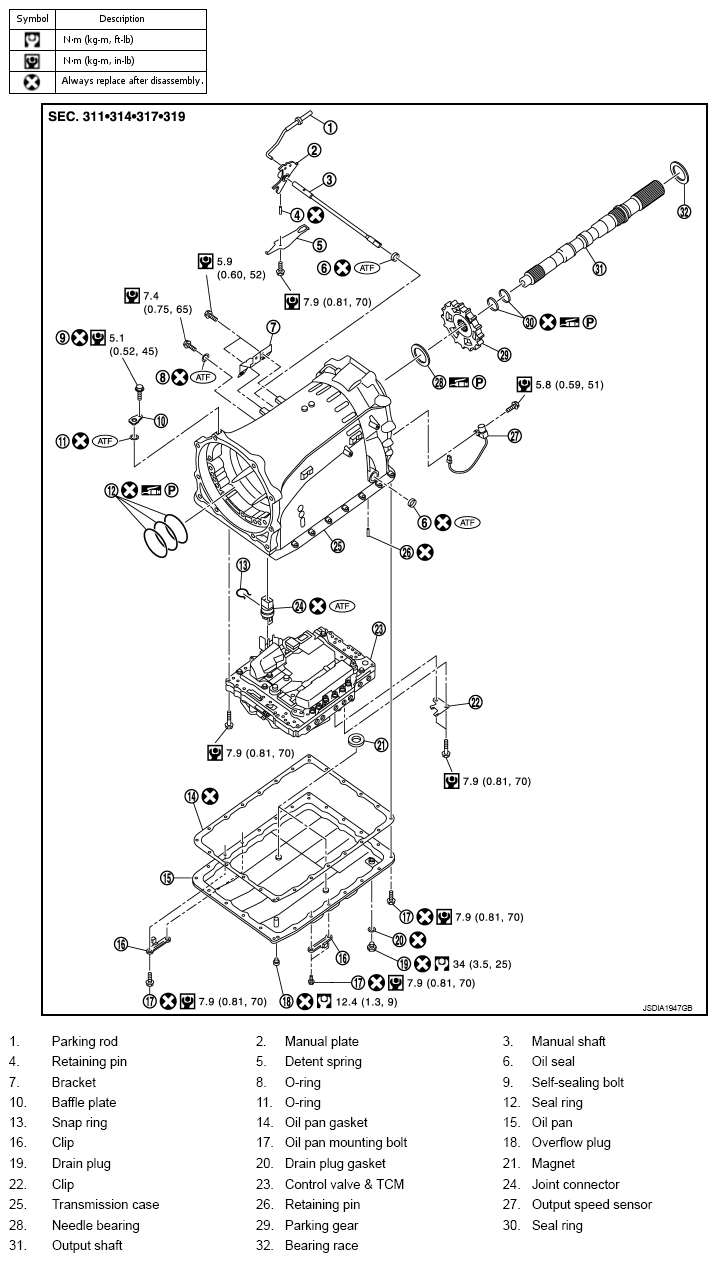

Fig 4: Exploded View Of Transmission Assembly With Torque Specifications
G07160407

Refer to "COMPONENTS " for symbols in the figure.

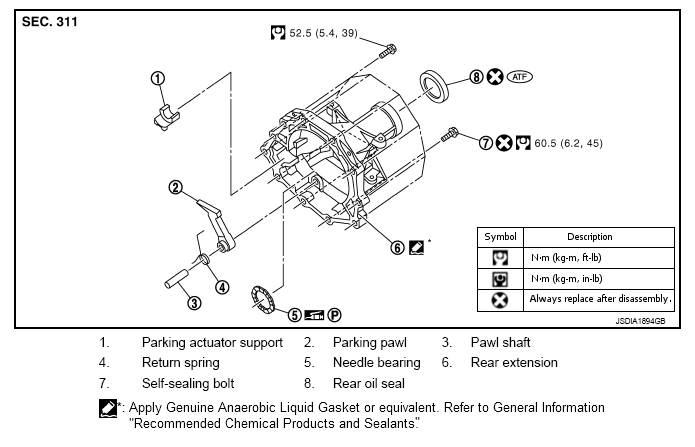

Fig 5: Exploded View Of Transmission Assembly With Torque Specifications
G07160408

Refer to "COMPONENTS " for symbols in the figure.
