Exploded View

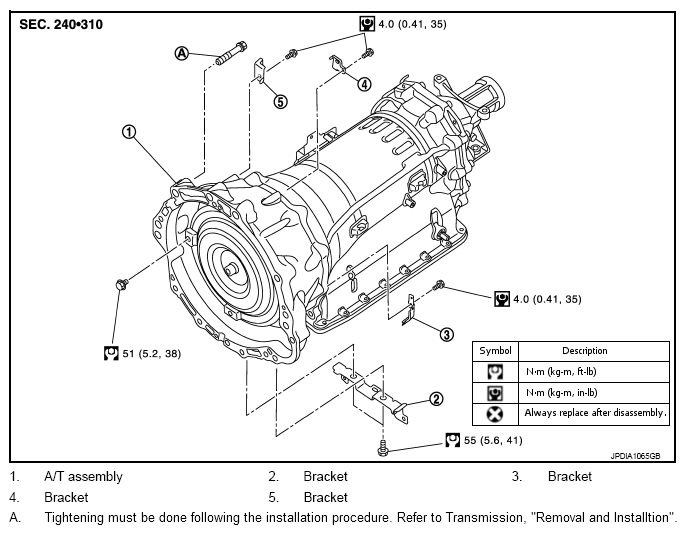

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications

G07160399

Refer to "COMPONENTS " for symbols in the figure.
