Component Parts Location

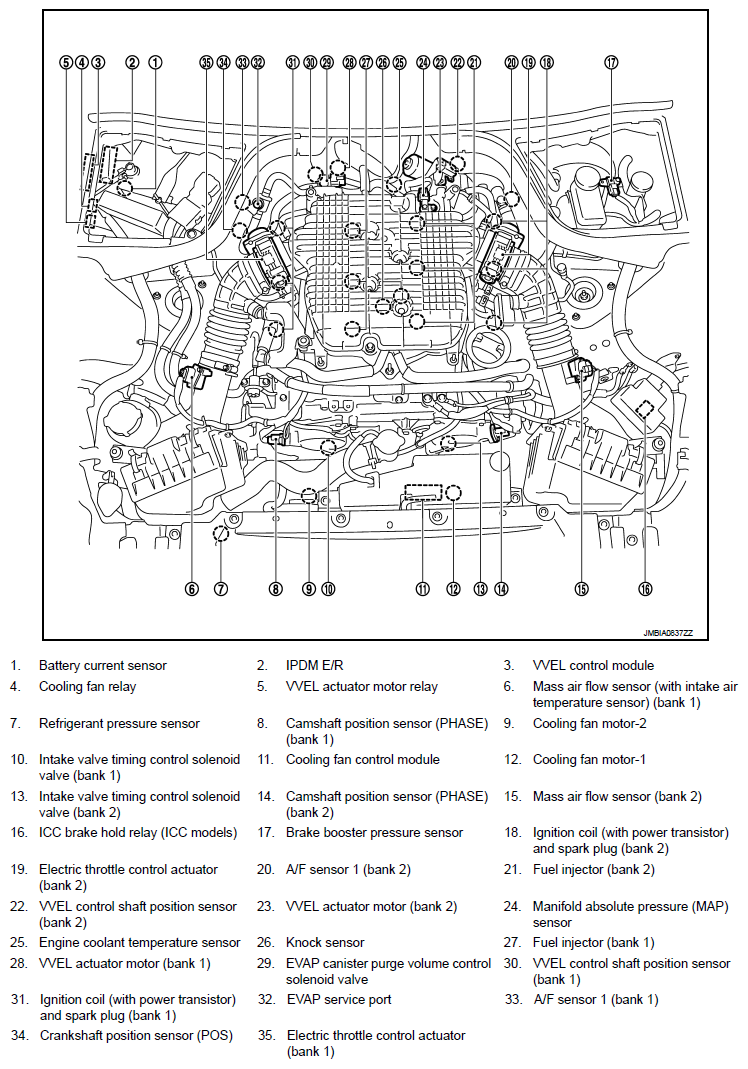

Fig 1: Identifying Automatic Speed Control Device (ASCD) Components Location (1 Of 22)

G07168733

Courtesy of NISSAN MOTOR CO., U.S.A.

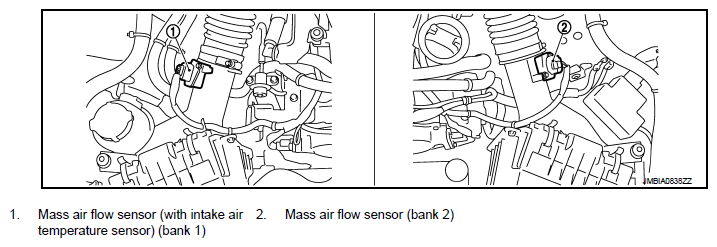

Fig 2: Identifying Automatic Speed Control Device (ASCD) Components Location (2 Of 22)

G07168734

Courtesy of NISSAN MOTOR CO., U.S.A.

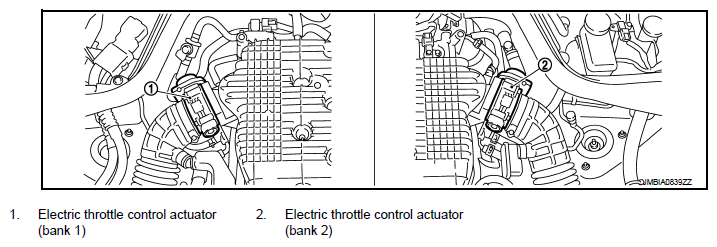

Fig 3: Identifying Automatic Speed Control Device (ASCD) Components Location (3 Of 22)

G07168735

Courtesy of NISSAN MOTOR CO., U.S.A.

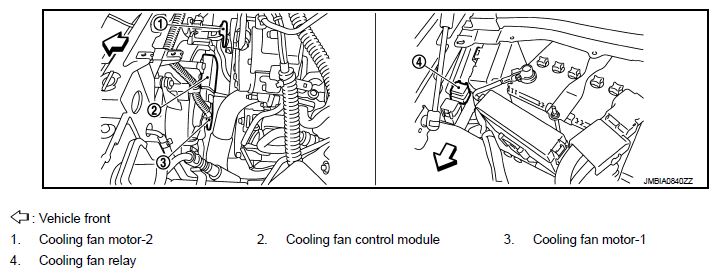

Fig 4: Identifying Automatic Speed Control Device (ASCD) Components Location (4 Of 22)

G07168736

Courtesy of NISSAN MOTOR CO., U.S.A.

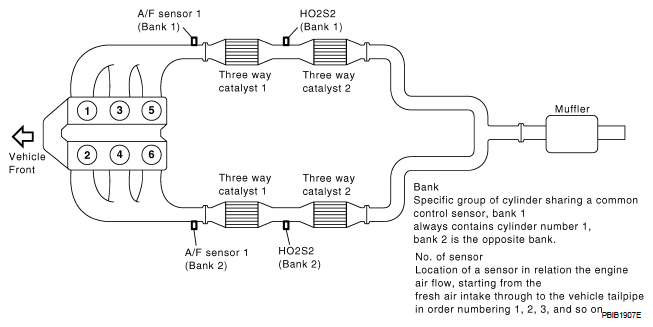

Fig 5: Identifying Automatic Speed Control Device (ASCD) Components Location (5 Of 22)

G07168737

Courtesy of NISSAN MOTOR CO., U.S.A.

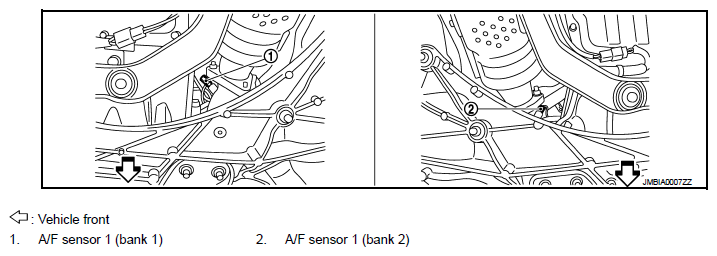

Fig 6: Identifying Automatic Speed Control Device (ASCD) Components Location (6 Of 22)

G07168738

Courtesy of NISSAN MOTOR CO., U.S.A.

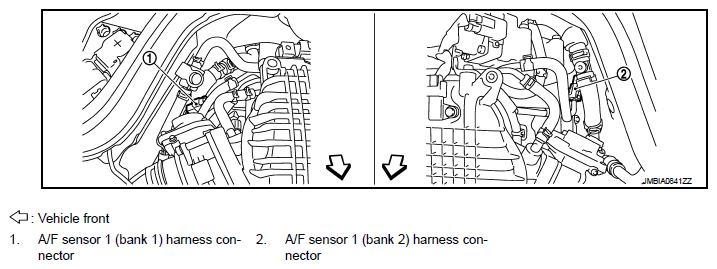

Fig 7: Identifying Automatic Speed Control Device (ASCD) Components Location (7 Of 22)

G07168739

Courtesy of NISSAN MOTOR CO., U.S.A.

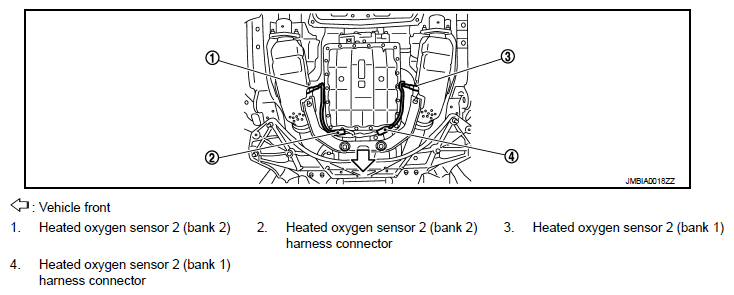

Fig 8: Identifying Automatic Speed Control Device (ASCD) Components Location (8 Of 22)

G07168740

Courtesy of NISSAN MOTOR CO., U.S.A.

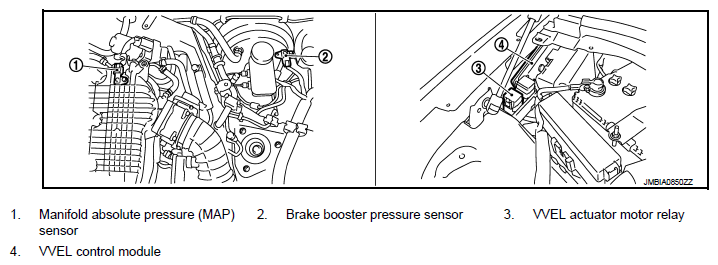

Fig 9: Identifying Automatic Speed Control Device (ASCD) Components Location (9 Of 22)

G07168741

Courtesy of NISSAN MOTOR CO., U.S.A.

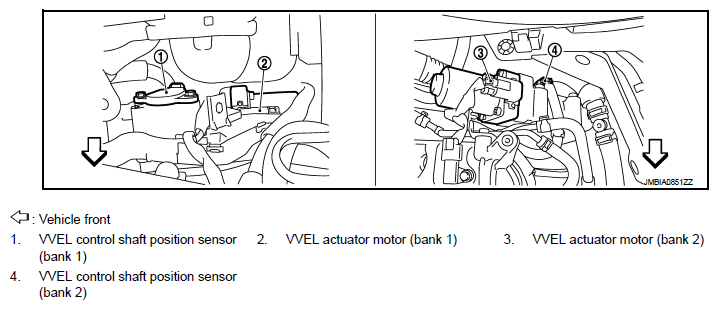

Fig 10: Identifying Automatic Speed Control Device (ASCD) Components Location (10 Of 22)

G07168742

Courtesy of NISSAN MOTOR CO., U.S.A.

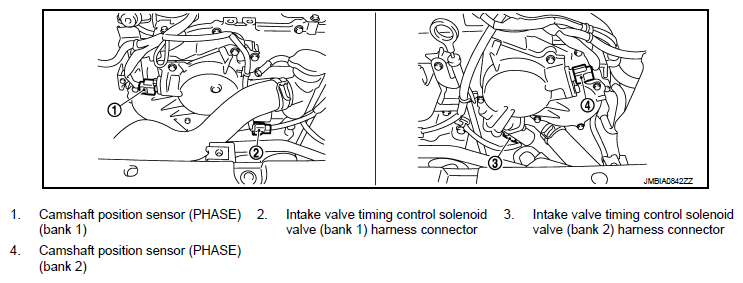

Fig 11: Identifying Automatic Speed Control Device (ASCD) Components Location (11 Of 22)

G07168743

Courtesy of NISSAN MOTOR CO., U.S.A.

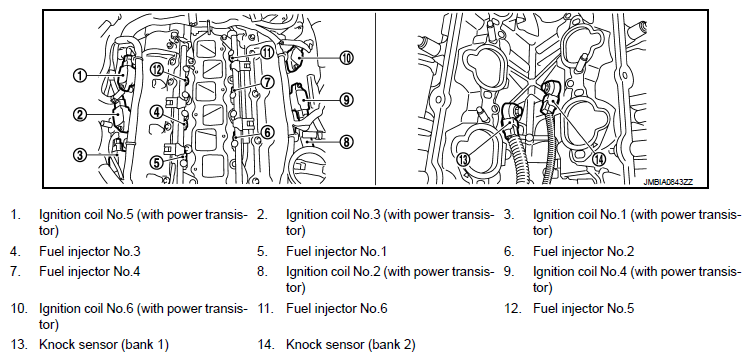

Fig 12: Identifying Automatic Speed Control Device (ASCD) Components Location (12 Of 22)

G07168744

Courtesy of NISSAN MOTOR CO., U.S.A.

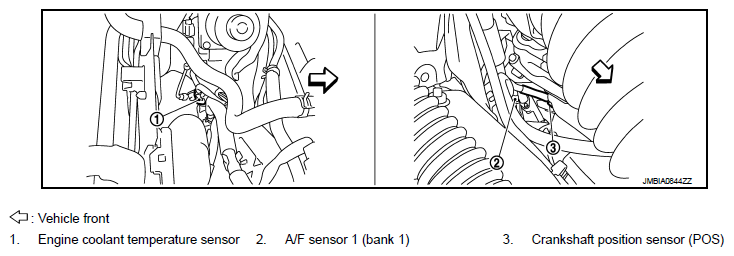

Fig 13: Identifying Automatic Speed Control Device (ASCD) Components Location (13 Of 22)

G07168745

Courtesy of NISSAN MOTOR CO., U.S.A.

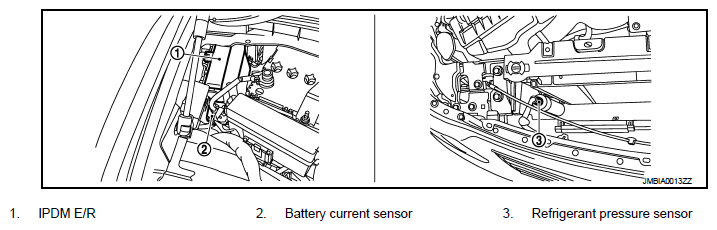

Fig 14: Identifying Automatic Speed Control Device (ASCD) Components Location (14 Of 22)

G07168746

Courtesy of NISSAN MOTOR CO., U.S.A.

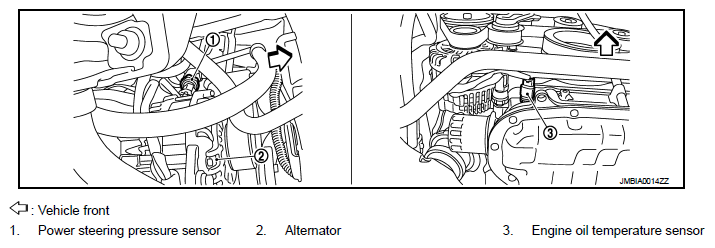

Fig 15: Identifying Automatic Speed Control Device (ASCD) Components Location (15 Of 22)

G07168747

Courtesy of NISSAN MOTOR CO., U.S.A.

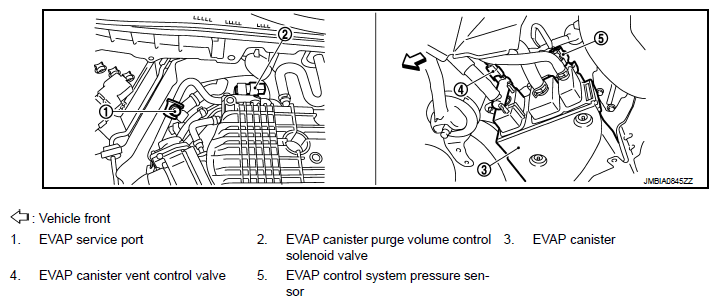

Fig 16: Identifying Automatic Speed Control Device (ASCD) Components Location (16 Of 22)

G07168748

Courtesy of NISSAN MOTOR CO., U.S.A.

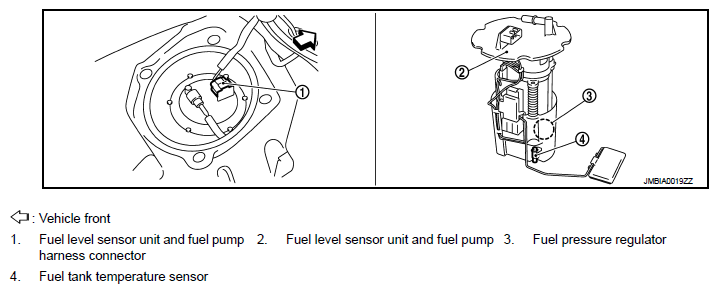

Fig 17: Identifying Automatic Speed Control Device (ASCD) Components Location (17 Of 22)

G07168749

Courtesy of NISSAN MOTOR CO., U.S.A.

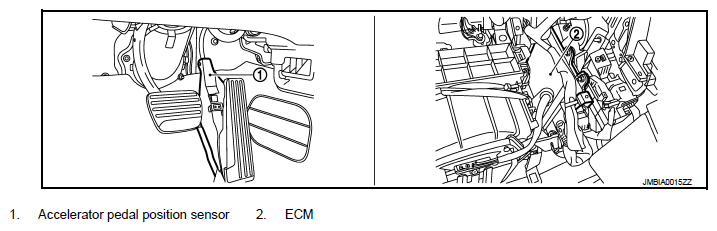

Fig 18: Identifying Automatic Speed Control Device (ASCD) Components Location (18 Of 22)

G07168750

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Automatic Speed Control Device (ASCD) Components Location (19 Of 22)

G07168751

Courtesy of NISSAN MOTOR CO., U.S.A.

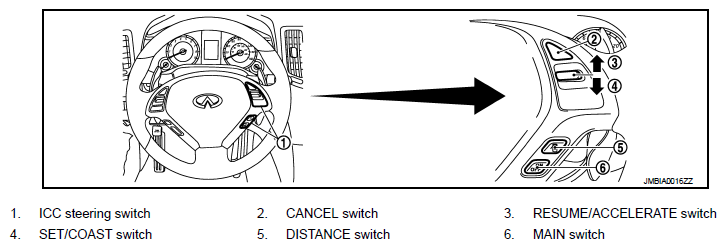

Fig 20: Identifying Automatic Speed Control Device (ASCD) Components Location (20 Of 22)

G07168752

Courtesy of NISSAN MOTOR CO., U.S.A.

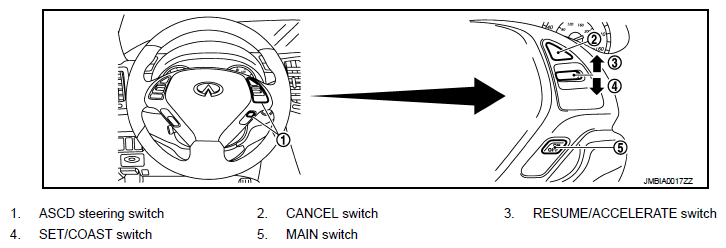

Fig 21: Identifying Automatic Speed Control Device (ASCD) Components Location (21 Of 22)

G07168753

Courtesy of NISSAN MOTOR CO., U.S.A.

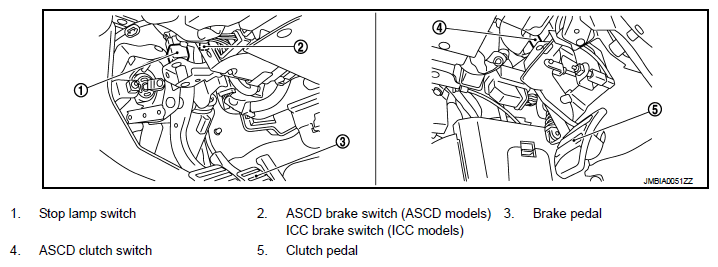

Fig 22: Identifying Automatic Speed Control Device (ASCD) Components Location (22 Of 22)

G07168754

Courtesy of NISSAN MOTOR CO., U.S.A.
