Component Parts Location

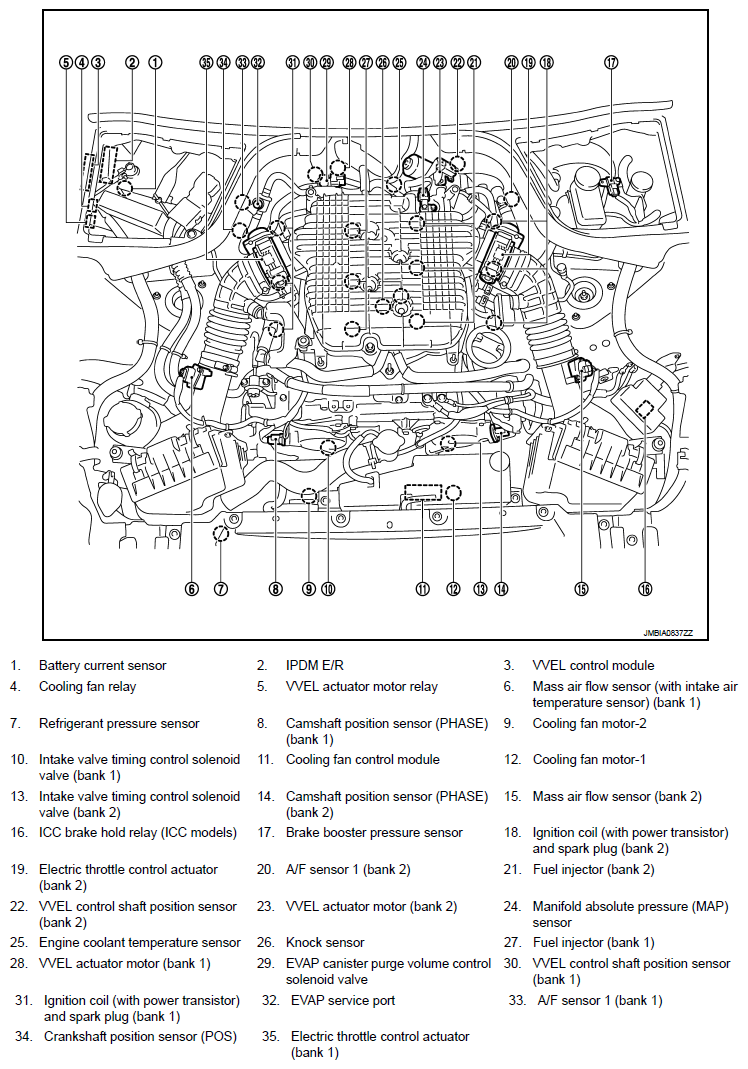

Fig 1: Identifying Intake Valve Timing Control Components Location (1 Of 22)

G07168829

Courtesy of NISSAN MOTOR CO., U.S.A.

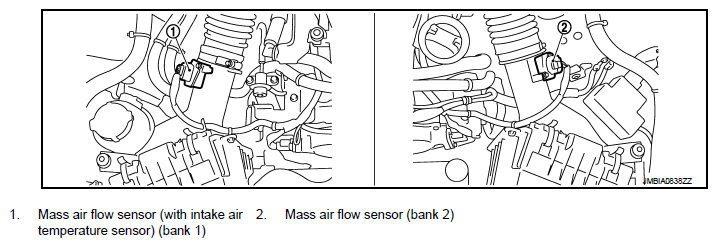

Fig 2: Identifying Intake Valve Timing Control Components Location (2 Of 22)

G07168830

Courtesy of NISSAN MOTOR CO., U.S.A.

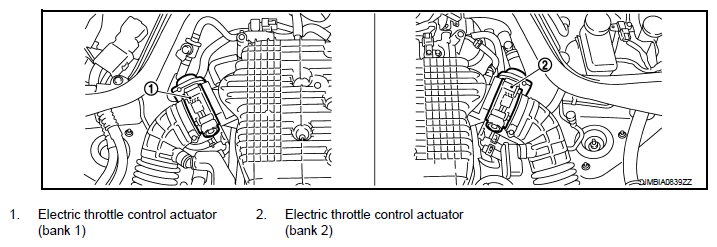

Fig 3: Identifying Intake Valve Timing Control Components Location (3 Of 22)

G07168831

Courtesy of NISSAN MOTOR CO., U.S.A.

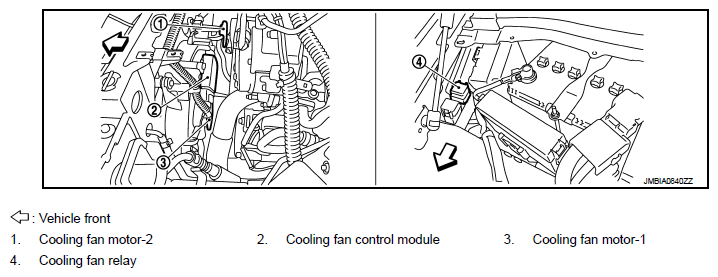

Fig 4: Identifying Intake Valve Timing Control Components Location (4 Of 22)

G07168832

Courtesy of NISSAN MOTOR CO., U.S.A.

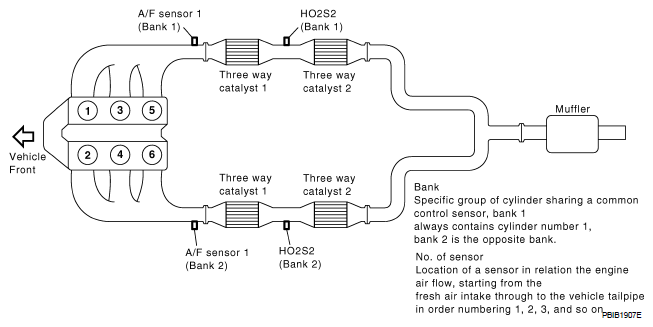

Fig 5: Identifying Intake Valve Timing Control Components Location (5 Of 22)

G07168833

Courtesy of NISSAN MOTOR CO., U.S.A.

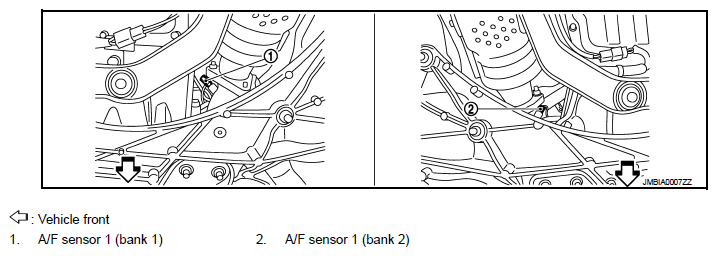

Fig 6: Identifying Intake Valve Timing Control Components Location (6 Of 22)

G07168834

Courtesy of NISSAN MOTOR CO., U.S.A.

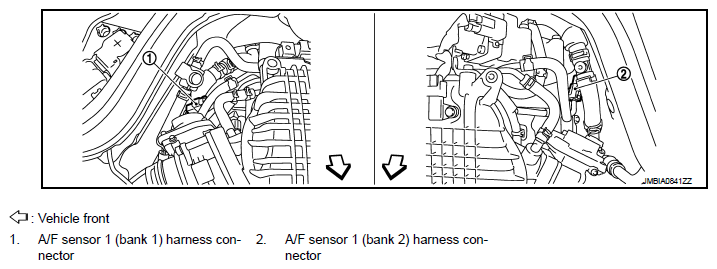

Fig 7: Identifying Intake Valve Timing Control Components Location (7 Of 22)

G07168835

Courtesy of NISSAN MOTOR CO., U.S.A.

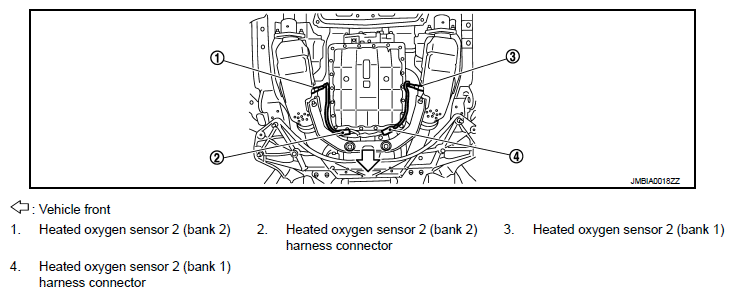

Fig 8: Identifying Intake Valve Timing Control Components Location (8 Of 22)

G07168836

Courtesy of NISSAN MOTOR CO., U.S.A.

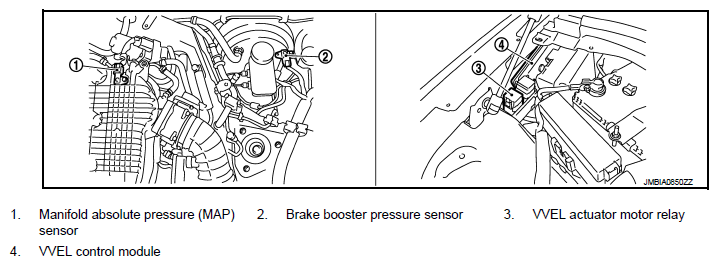

Fig 9: Identifying Intake Valve Timing Control Components Location (9 Of 22)

G07168837

Courtesy of NISSAN MOTOR CO., U.S.A.

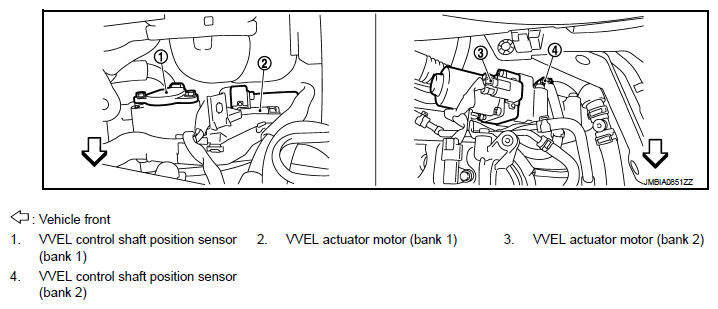

Fig 10: Identifying Intake Valve Timing Control Components Location (10 Of 22)

G07168838

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intake Valve Timing Control Components Location (11 Of 22)

G07168839

Courtesy of NISSAN MOTOR CO., U.S.A.

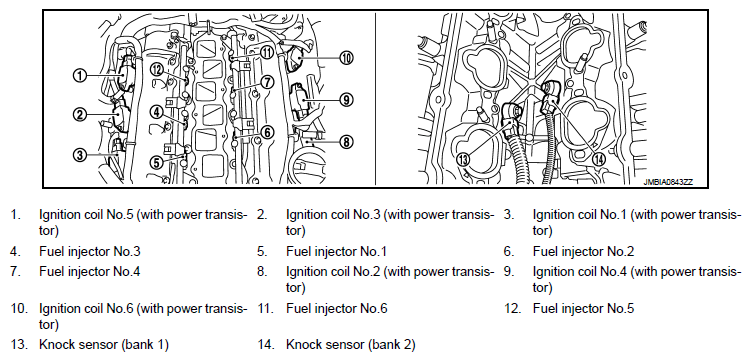

Fig 12: Identifying Intake Valve Timing Control Components Location (12 Of 22)

G07168840

Courtesy of NISSAN MOTOR CO., U.S.A.

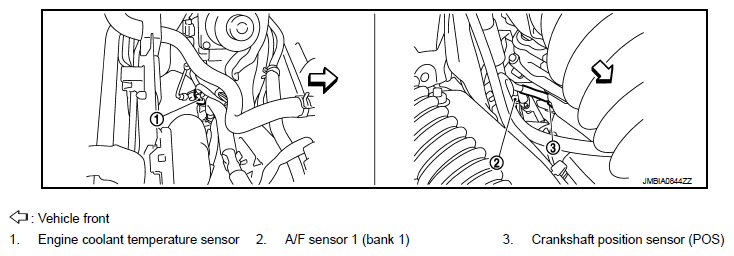

Fig 13: Identifying Intake Valve Timing Control Components Location (13 Of 22)

G07168841

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intake Valve Timing Control Components Location (14 Of 22)

G07168842

Courtesy of NISSAN MOTOR CO., U.S.A.

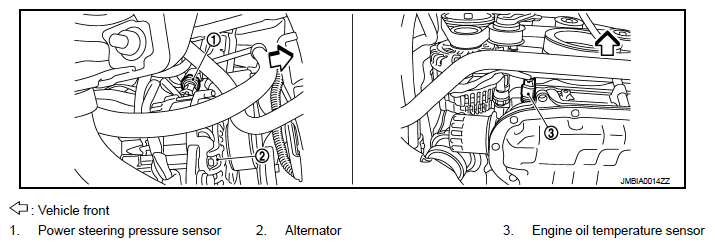

Fig 15: Identifying Intake Valve Timing Control Components Location (15 Of 22)

G07168843

Courtesy of NISSAN MOTOR CO., U.S.A.

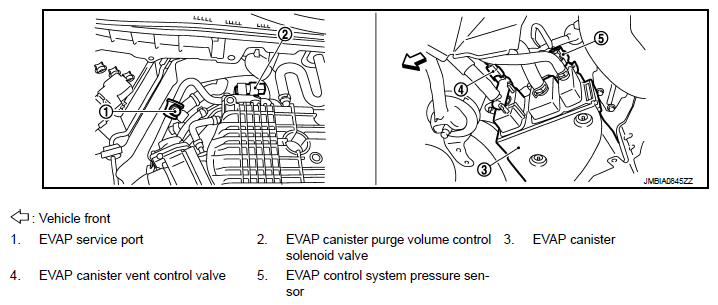

Fig 16: Identifying Intake Valve Timing Control Components Location (16 Of 22)

G07168844

Courtesy of NISSAN MOTOR CO., U.S.A.

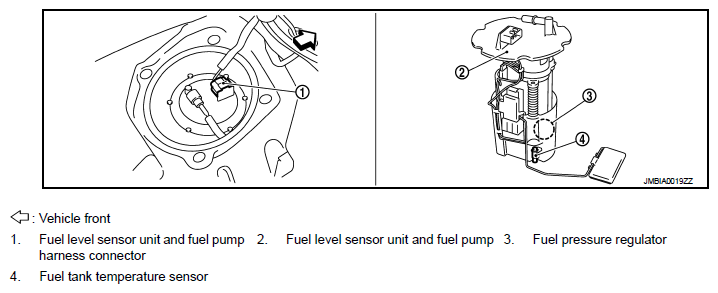

Fig 17: Identifying Intake Valve Timing Control Components Location (17 Of 22)

G07168845

Courtesy of NISSAN MOTOR CO., U.S.A.

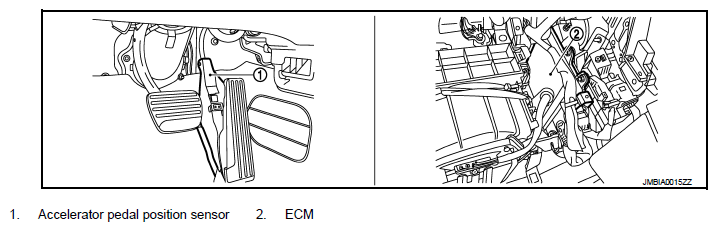

Fig 18: Identifying Intake Valve Timing Control Components Location (18 Of 22)

G07168846

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Intake Valve Timing Control Components Location (19 Of 22)

G07168847

Courtesy of NISSAN MOTOR CO., U.S.A.

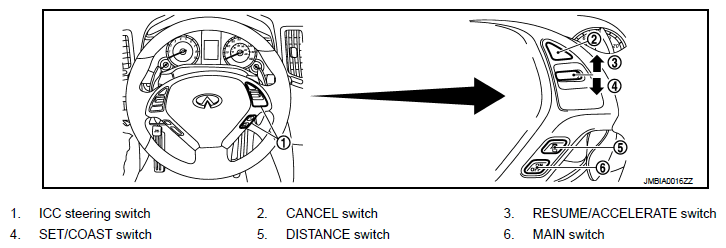

Fig 20: Identifying Intake Valve Timing Control Components Location (20 Of 22)

G07168848

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Intake Valve Timing Control Components Location (21 Of 22)

G07168849

Courtesy of NISSAN MOTOR CO., U.S.A.

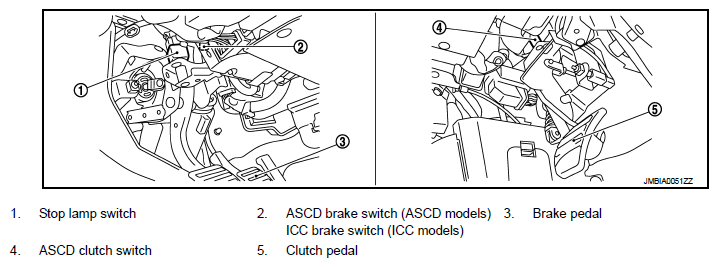

Fig 22: Identifying Intake Valve Timing Control Components Location (22 Of 22)

G07168850

Courtesy of NISSAN MOTOR CO., U.S.A.
