Component Parts Location

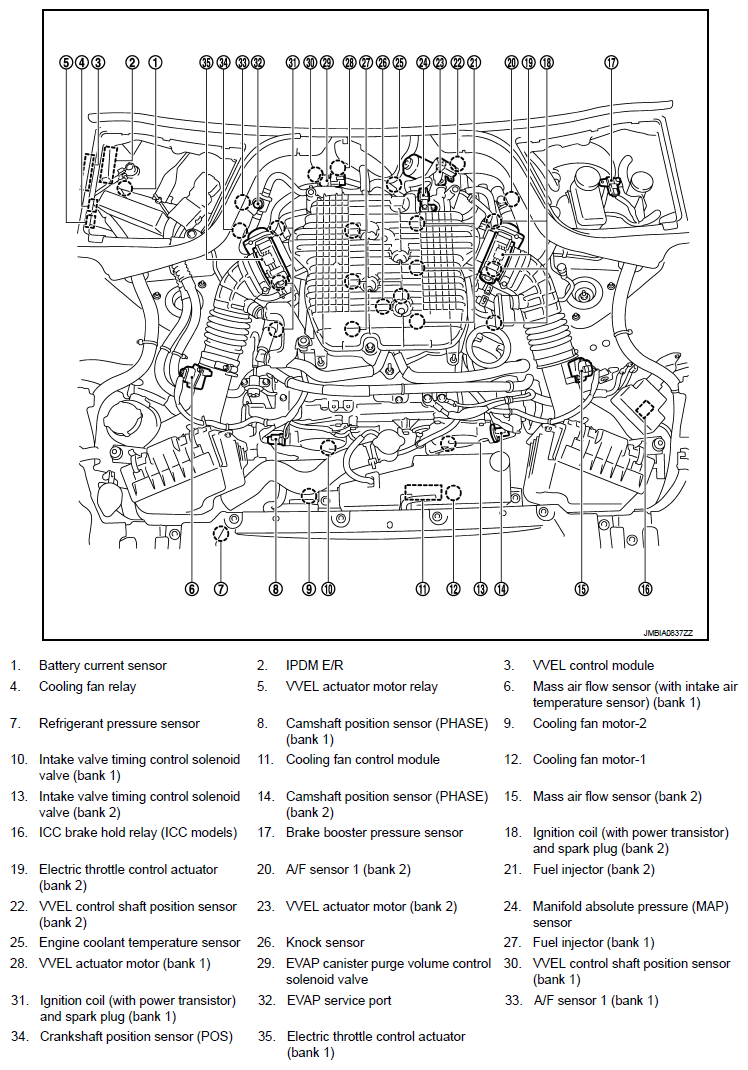

Fig 1: Identifying VVEL System Components Location (1 Of 22)

G07168853

Courtesy of NISSAN MOTOR CO., U.S.A.

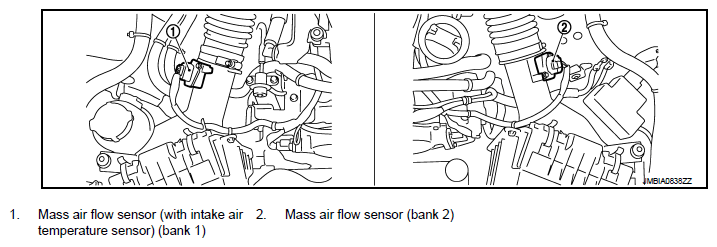

Fig 2: Identifying VVEL System Components Location (2 Of 22)

G07168854

Courtesy of NISSAN MOTOR CO., U.S.A.

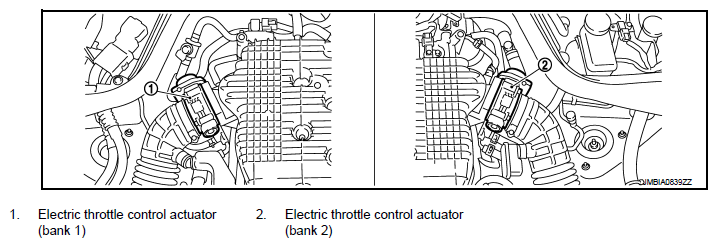

Fig 3: Identifying VVEL System Components Location (3 Of 22)

G07168855

Courtesy of NISSAN MOTOR CO., U.S.A.

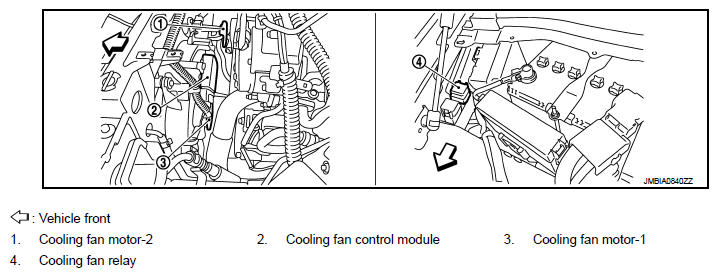

Fig 4: Identifying VVEL System Components Location (4 Of 22)

G07168856

Courtesy of NISSAN MOTOR CO., U.S.A.

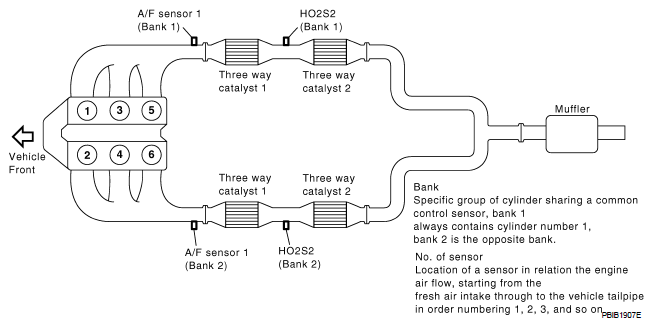

Fig 5: Identifying VVEL System Components Location (5 Of 22)

G07168857

Courtesy of NISSAN MOTOR CO., U.S.A.

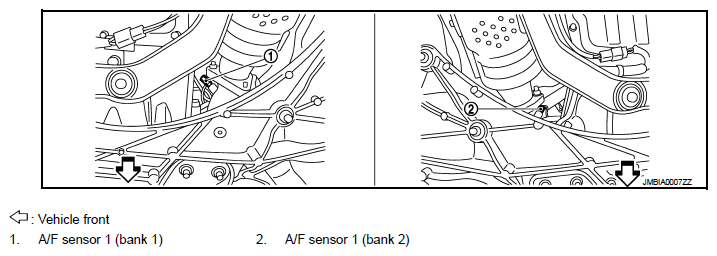

Fig 6: Identifying VVEL System Components Location (6 Of 22)

G07168858

Courtesy of NISSAN MOTOR CO., U.S.A.

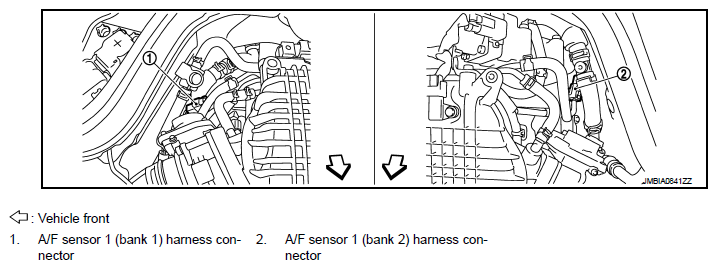

Fig 7: Identifying VVEL System Components Location (7 Of 22)

G07168859

Courtesy of NISSAN MOTOR CO., U.S.A.

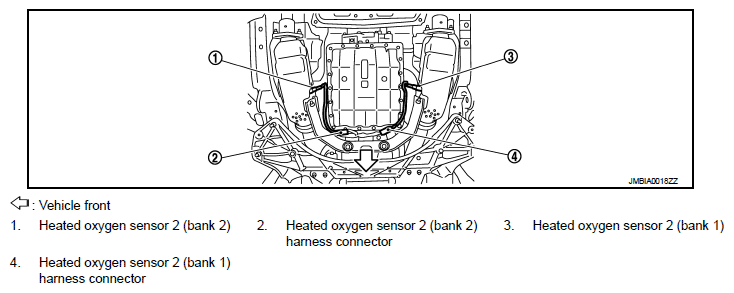

Fig 8: Identifying VVEL System Components Location (8 Of 22)

G07168860

Courtesy of NISSAN MOTOR CO., U.S.A.

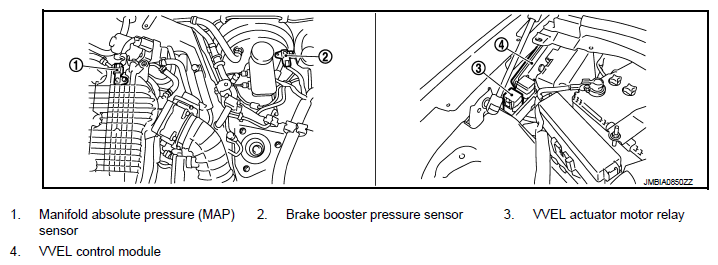

Fig 9: Identifying VVEL System Components Location (9 Of 22)

G07168861

Courtesy of NISSAN MOTOR CO., U.S.A.

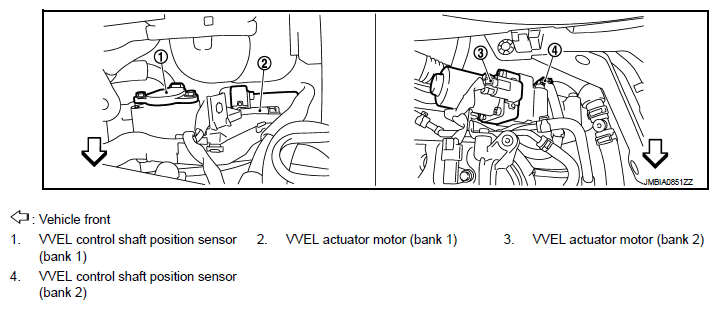

Fig 10: Identifying VVEL System Components Location (10 Of 22)

G07168862

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying VVEL System Components Location (11 Of 22)

G07168863

Courtesy of NISSAN MOTOR CO., U.S.A.

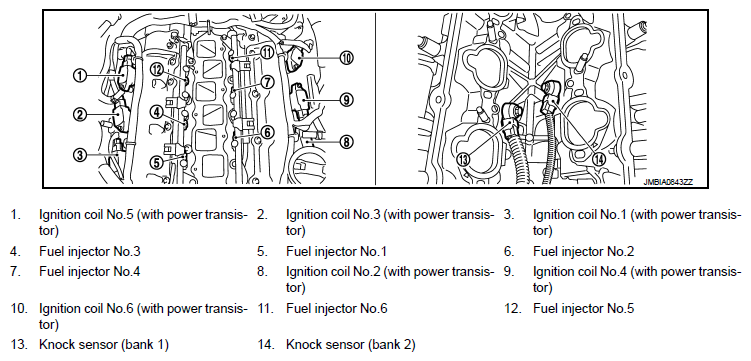

Fig 12: Identifying VVEL System Components Location (12 Of 22)

G07168864

Courtesy of NISSAN MOTOR CO., U.S.A.

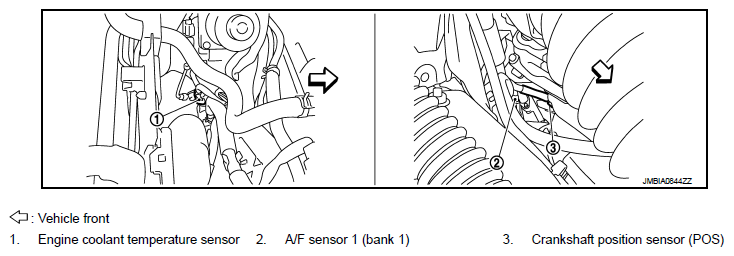

Fig 13: Identifying VVEL System Components Location (13 Of 22)

G07168865

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying VVEL System Components Location (14 Of 22)

G07168866

Courtesy of NISSAN MOTOR CO., U.S.A.

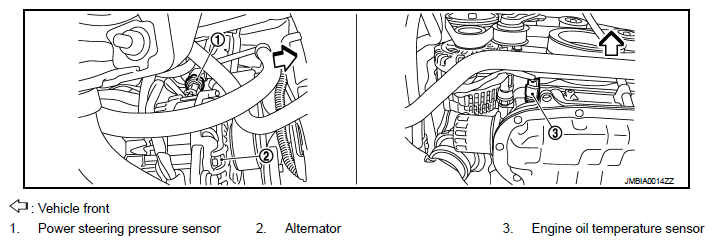

Fig 15: Identifying VVEL System Components Location (15 Of 22)

G07168867

Courtesy of NISSAN MOTOR CO., U.S.A.

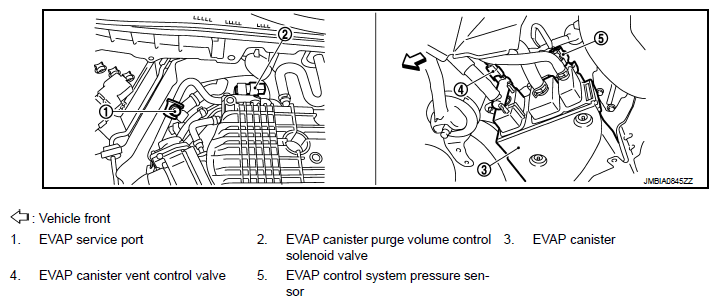

Fig 16: Identifying VVEL System Components Location (16 Of 22)

G07168868

Courtesy of NISSAN MOTOR CO., U.S.A.

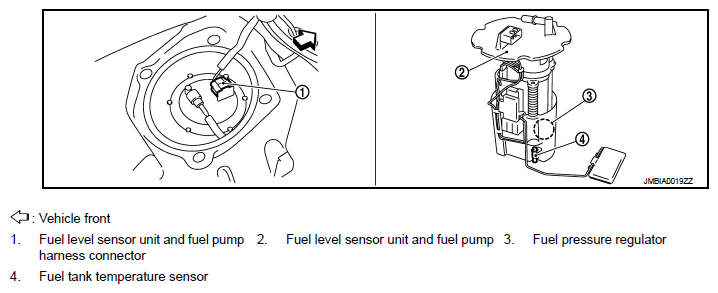

Fig 17: Identifying VVEL System Components Location (17 Of 22)

G07168869

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying VVEL System Components Location (18 Of 22)

G07168870

Courtesy of NISSAN MOTOR CO., U.S.A.

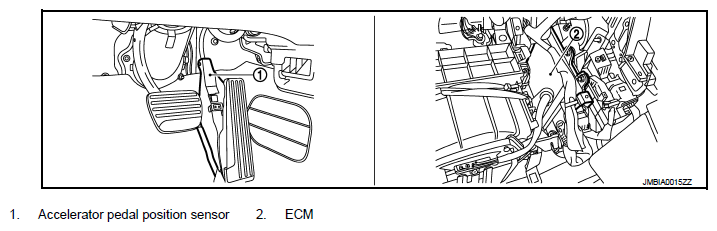

Fig 19: Identifying VVEL System Components Location (19 Of 22)

G07168871

Courtesy of NISSAN MOTOR CO., U.S.A.

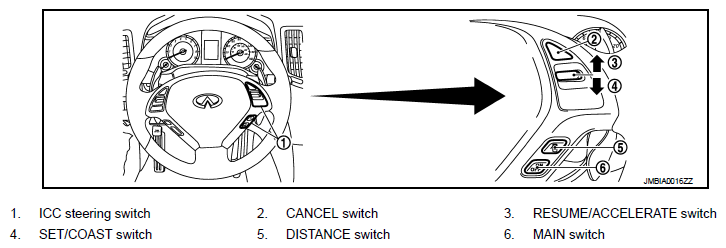

Fig 20: Identifying VVEL System Components Location (20 Of 22)

G07168872

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying VVEL System Components Location (21 Of 22)

G07168873

Courtesy of NISSAN MOTOR CO., U.S.A.

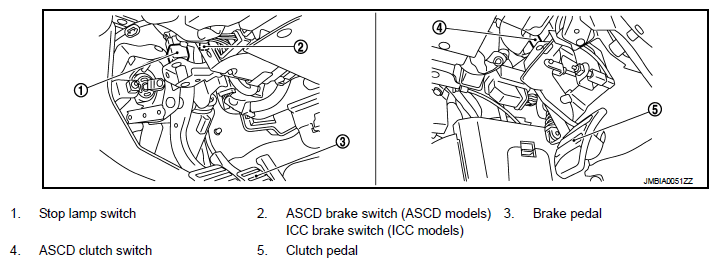

Fig 22: Identifying VVEL System Components Location (22 Of 22)

G07168874

Courtesy of NISSAN MOTOR CO., U.S.A.
