Component Parts Location

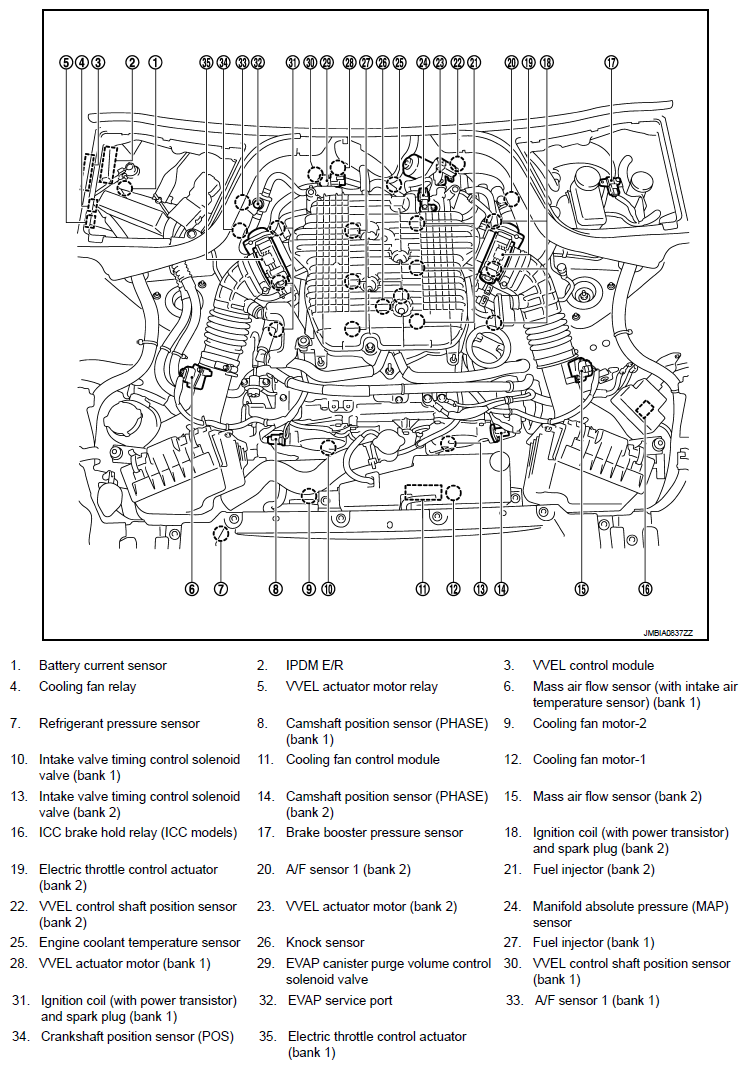

Fig 1: Identifying Air Conditioning Cut Control Components Location (1 Of 22)

G07168710

Courtesy of NISSAN MOTOR CO., U.S.A.

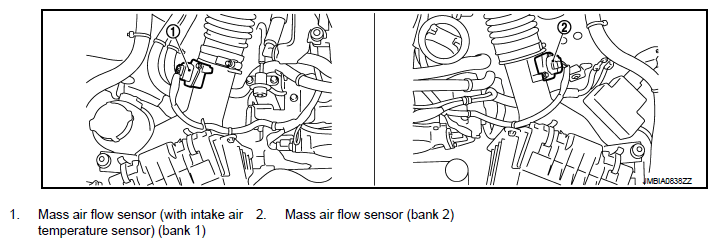

Fig 2: Identifying Air Conditioning Cut Control Components Location (2 Of 22)

G07168711

Courtesy of NISSAN MOTOR CO., U.S.A.

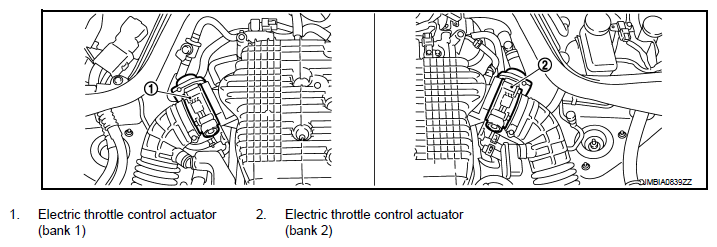

Fig 3: Identifying Air Conditioning Cut Control Components Location (3 Of 22)

G07168712

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Air Conditioning Cut Control Components Location (4 Of 22)

G07168713

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Air Conditioning Cut Control Components Location (5 Of 22)

G07168714

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Air Conditioning Cut Control Components Location (6 Of 22)

G07168715

Courtesy of NISSAN MOTOR CO., U.S.A.

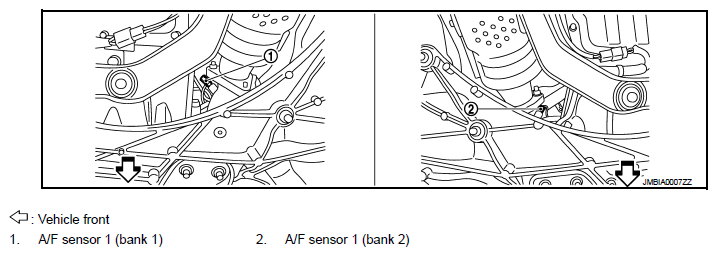

Fig 7: Identifying Air Conditioning Cut Control Components Location (7 Of 22)

G07168716

Courtesy of NISSAN MOTOR CO., U.S.A.

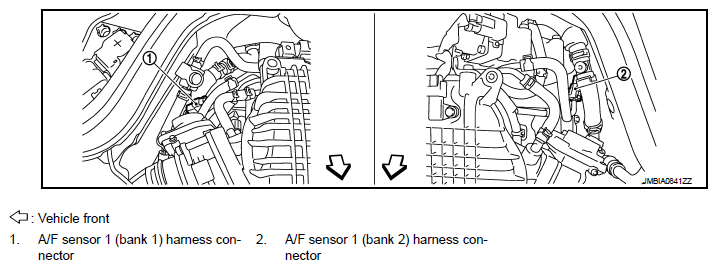

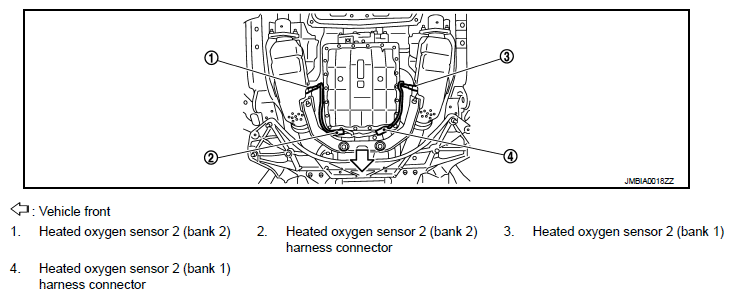

Fig 8: Identifying Air Conditioning Cut Control Components Location (8 Of 22)

G07168717

Courtesy of NISSAN MOTOR CO., U.S.A.

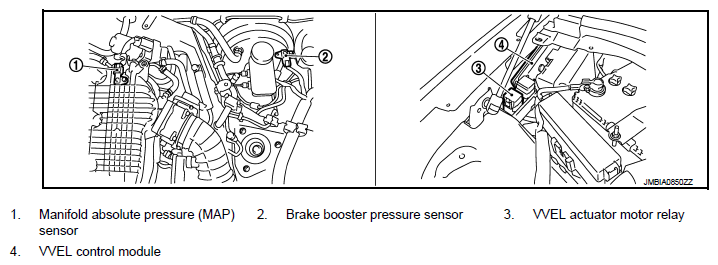

Fig 9: Identifying Air Conditioning Cut Control Components Location (9 Of 22)

G07168718

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Air Conditioning Cut Control Components Location (10 Of 22)

G07168719

Courtesy of NISSAN MOTOR CO., U.S.A.

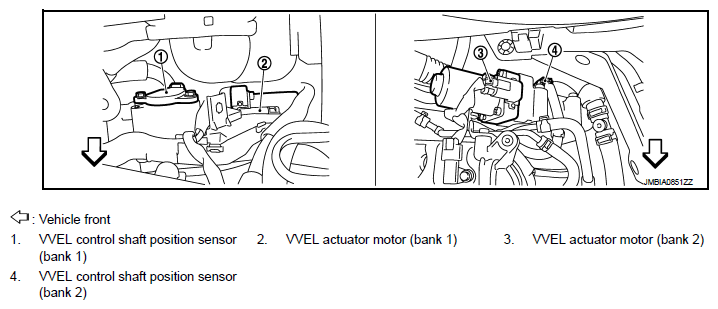

Fig 11: Identifying Air Conditioning Cut Control Components Location (11 Of 22)

G07168720

Courtesy of NISSAN MOTOR CO., U.S.A.

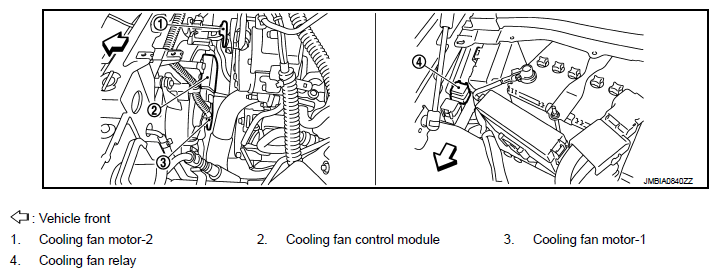

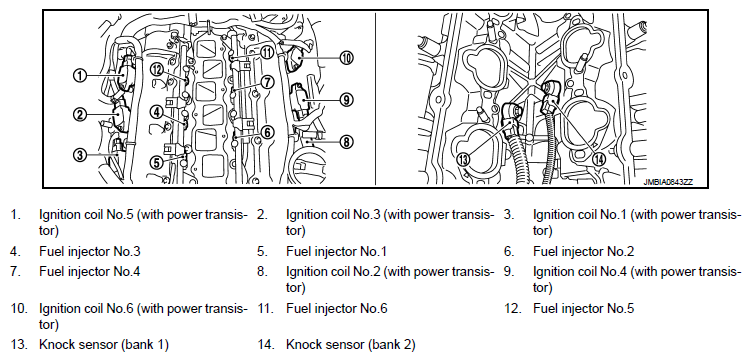

Fig 12: Identifying Air Conditioning Cut Control Components Location (12 Of 22)

G07168721

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Air Conditioning Cut Control Components Location (13 Of 22)

G07168722

Courtesy of NISSAN MOTOR CO., U.S.A.

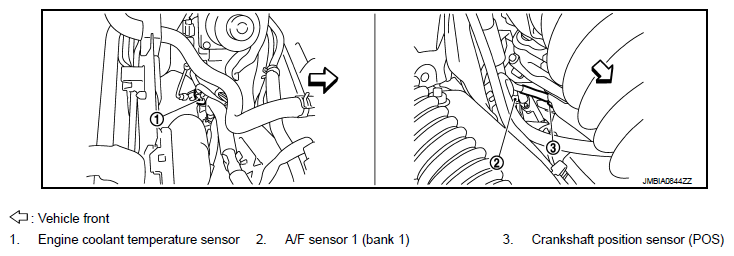

Fig 14: Identifying Air Conditioning Cut Control Components Location (14 Of 22)

G07168723

Courtesy of NISSAN MOTOR CO., U.S.A.

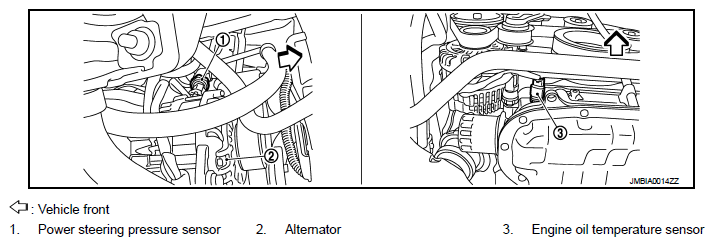

Fig 15: Identifying Air Conditioning Cut Control Components Location (15 Of 22)

G07168724

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Air Conditioning Cut Control Components Location (16 Of 22)

G07168725

Courtesy of NISSAN MOTOR CO., U.S.A.

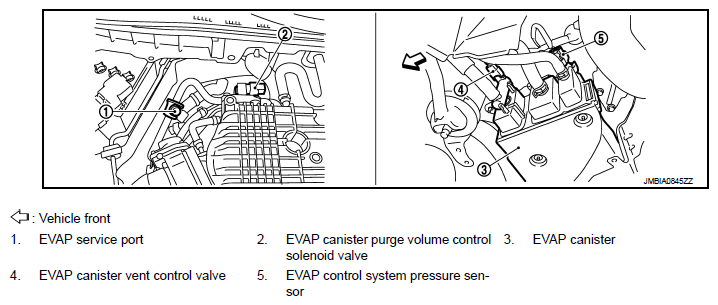

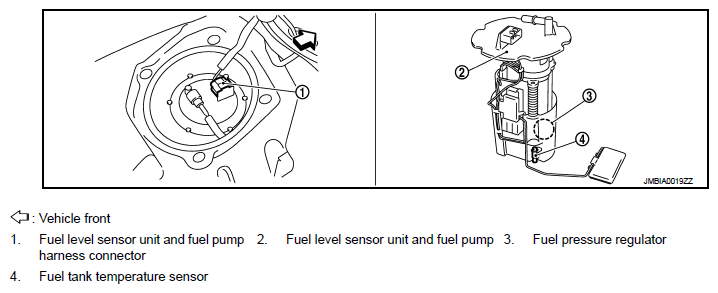

Fig 17: Identifying Air Conditioning Cut Control Components Location (17 Of 22)

G07168726

Courtesy of NISSAN MOTOR CO., U.S.A.

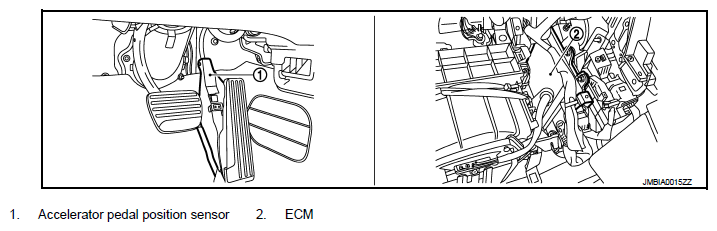

Fig 18: Identifying Air Conditioning Cut Control Components Location (18 Of 22)

G07168727

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Air Conditioning Cut Control Components Location (19 Of 22)

G07168728

Courtesy of NISSAN MOTOR CO., U.S.A.

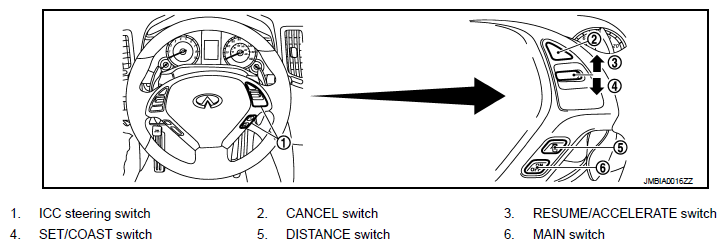

Fig 20: Identifying Air Conditioning Cut Control Components Location (20 Of 22)

G07168729

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Air Conditioning Cut Control Components Location (21 Of 22)

G07168730

Courtesy of NISSAN MOTOR CO., U.S.A.

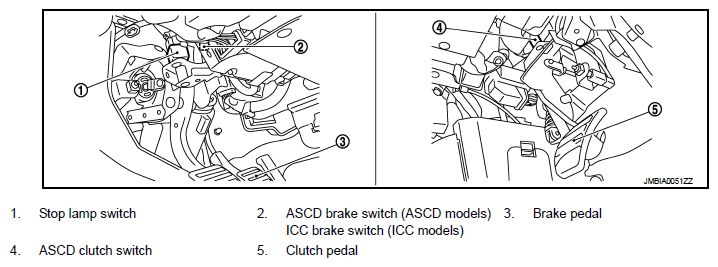

Fig 22: Identifying Air Conditioning Cut Control Components Location (22 Of 22)

G07168731

Courtesy of NISSAN MOTOR CO., U.S.A.
