Component Parts Location

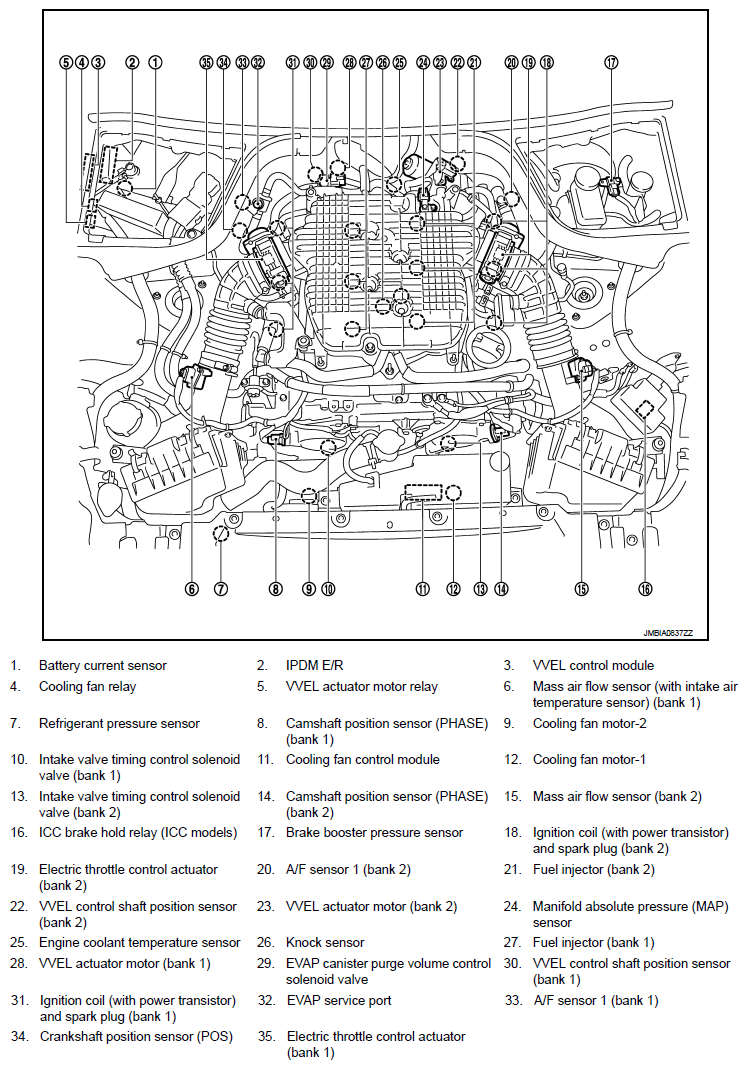

Fig 1: Identifying Cooling Fan Control Components Location (1 Of 22)

G07168756

Courtesy of NISSAN MOTOR CO., U.S.A.

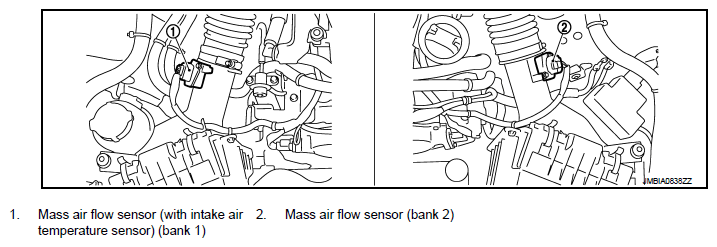

Fig 2: Identifying Cooling Fan Control Components Location (2 Of 22)

G07168757

Courtesy of NISSAN MOTOR CO., U.S.A.

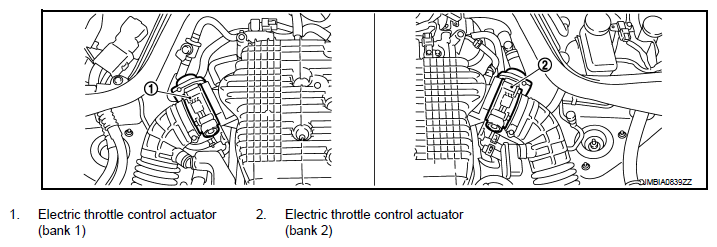

Fig 3: Identifying Cooling Fan Control Components Location (3 Of 22)

G07168758

Courtesy of NISSAN MOTOR CO., U.S.A.

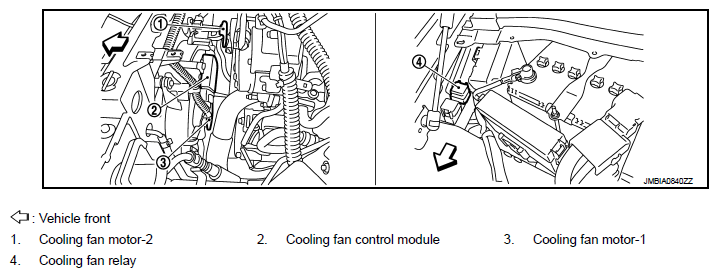

Fig 4: Identifying Cooling Fan Control Components Location (4 Of 22)

G07168759

Courtesy of NISSAN MOTOR CO., U.S.A.

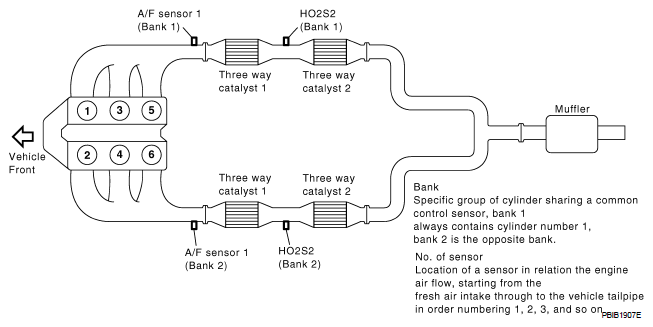

Fig 5: Identifying Cooling Fan Control Components Location (5 Of 22)

G07168760

Courtesy of NISSAN MOTOR CO., U.S.A.

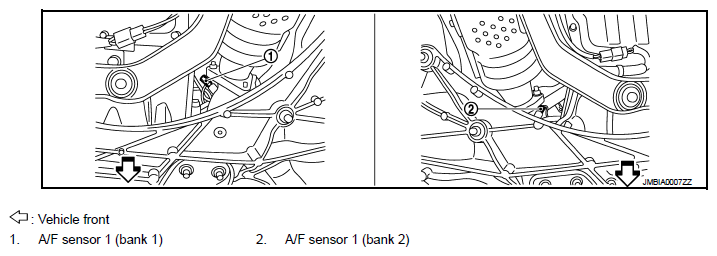

Fig 6: Identifying Cooling Fan Control Components Location (6 Of 22)

G07168761

Courtesy of NISSAN MOTOR CO., U.S.A.

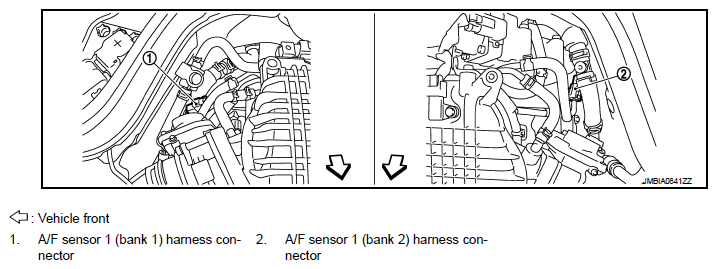

Fig 7: Identifying Cooling Fan Control Components Location (7 Of 22)

G07168762

Courtesy of NISSAN MOTOR CO., U.S.A.

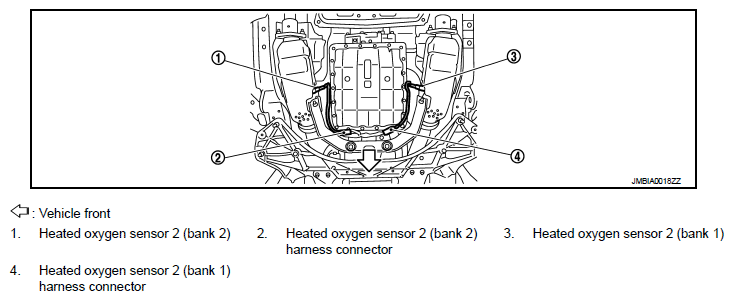

Fig 8: Identifying Cooling Fan Control Components Location (8 Of 22)

G07168763

Courtesy of NISSAN MOTOR CO., U.S.A.

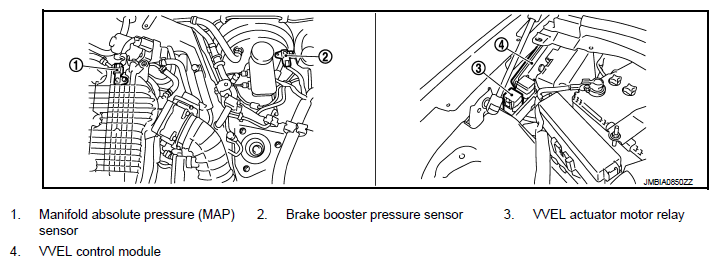

Fig 9: Identifying Cooling Fan Control Components Location (9 Of 22)

G07168764

Courtesy of NISSAN MOTOR CO., U.S.A.

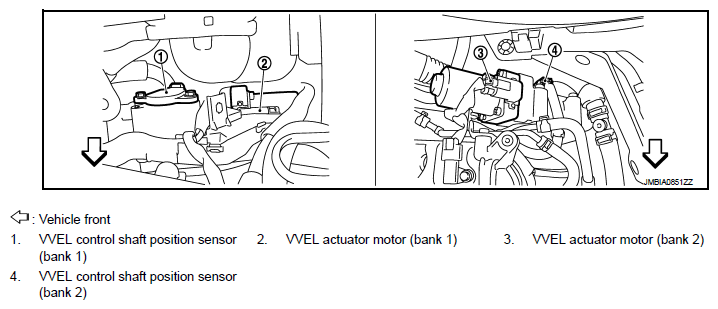

Fig 10: Identifying Cooling Fan Control Components Location (10 Of 22)

G07168765

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Cooling Fan Control Components Location (11 Of 22)

G07168766

Courtesy of NISSAN MOTOR CO., U.S.A.

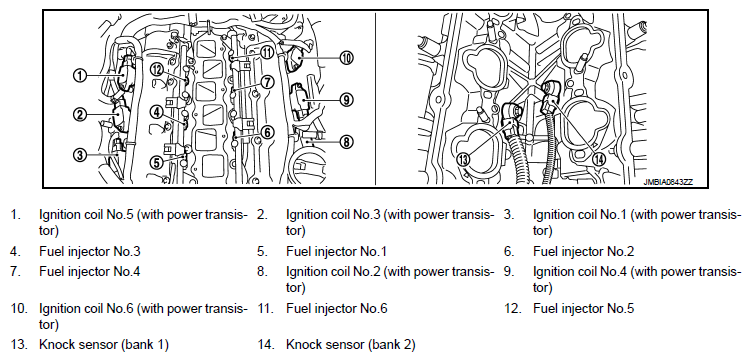

Fig 12: Identifying Cooling Fan Control Components Location (12 Of 22)

G07168767

Courtesy of NISSAN MOTOR CO., U.S.A.

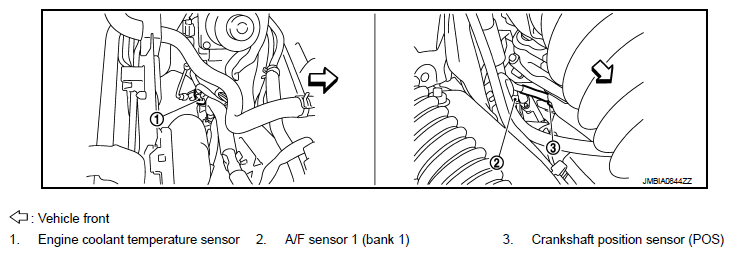

Fig 13: Identifying Cooling Fan Control Components Location (13 Of 22)

G07168768

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Cooling Fan Control Components Location (14 Of 22)

G07168769

Courtesy of NISSAN MOTOR CO., U.S.A.

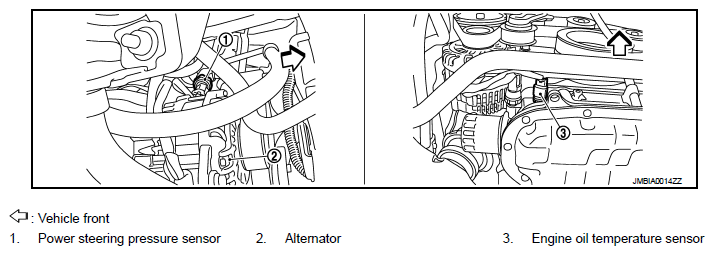

Fig 15: Identifying Cooling Fan Control Components Location (15 Of 22)

G07168770

Courtesy of NISSAN MOTOR CO., U.S.A.

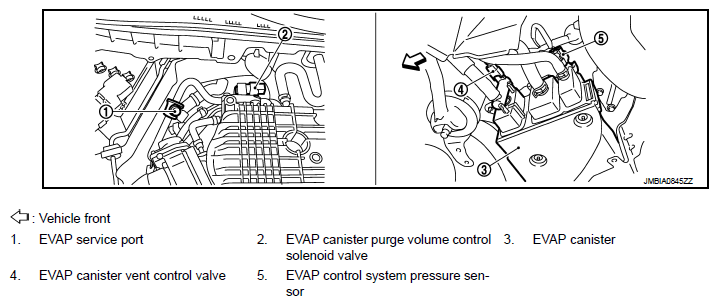

Fig 16: Identifying Cooling Fan Control Components Location (16 Of 22)

G07168771

Courtesy of NISSAN MOTOR CO., U.S.A.

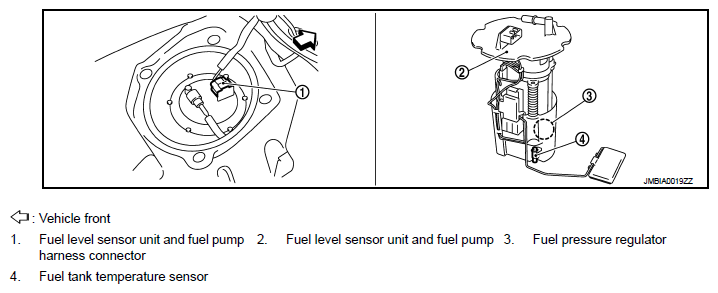

Fig 17: Identifying Cooling Fan Control Components Location (17 Of 22)

G07168772

Courtesy of NISSAN MOTOR CO., U.S.A.

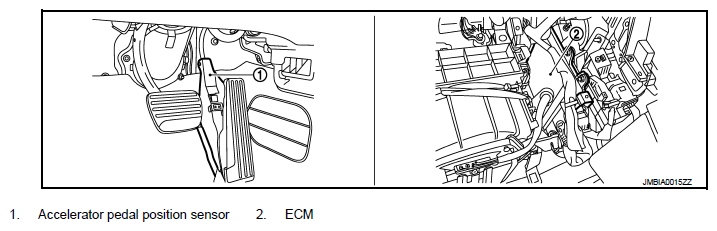

Fig 18: Identifying Cooling Fan Control Components Location (18 Of 22)

G07168773

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Cooling Fan Control Components Location (19 Of 22)

G07168774

Courtesy of NISSAN MOTOR CO., U.S.A.

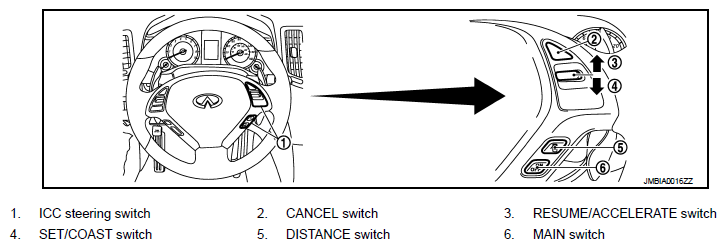

Fig 20: Identifying Cooling Fan Control Components Location (20 Of 22)

G07168775

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Cooling Fan Control Components Location (21 Of 22)

G07168776

Courtesy of NISSAN MOTOR CO., U.S.A.

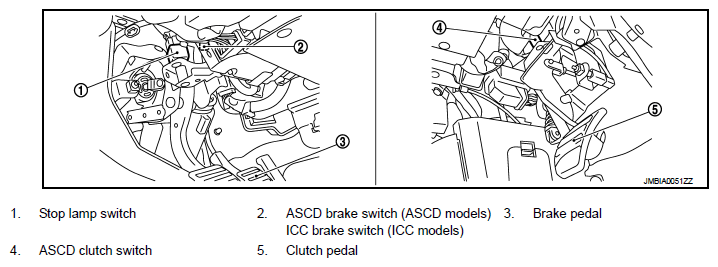

Fig 22: Identifying Cooling Fan Control Components Location (22 Of 22)

G07168777

Courtesy of NISSAN MOTOR CO., U.S.A.
