Component Parts Location

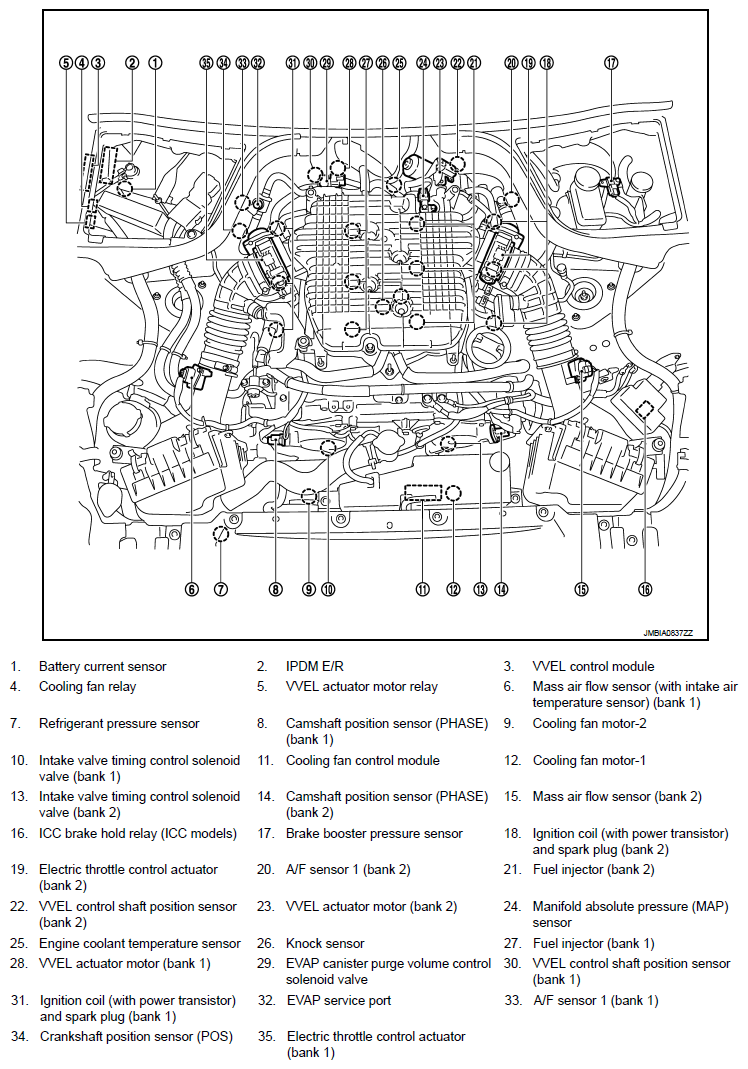

Fig 1: Identifying Electric Ignition System Components Location (1 Of 22)

G07168687

Courtesy of NISSAN MOTOR CO., U.S.A.

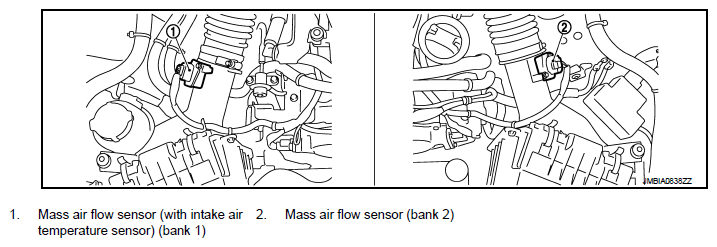

Fig 2: Identifying Electric Ignition System Components Location (2 Of 22)

G07168688

Courtesy of NISSAN MOTOR CO., U.S.A.

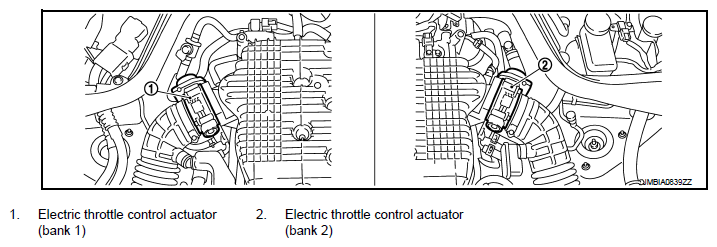

Fig 3: Identifying Electric Ignition System Components Location (3 Of 22)

G07168689

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Electric Ignition System Components Location (4 Of 22)

G07168690

Courtesy of NISSAN MOTOR CO., U.S.A.

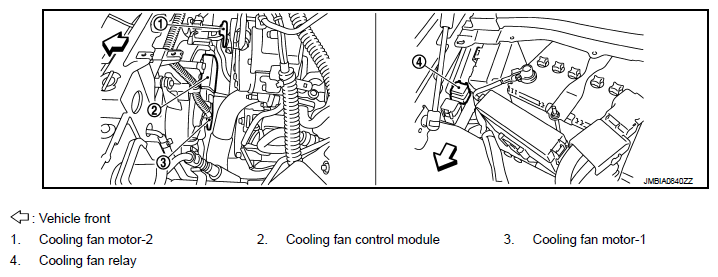

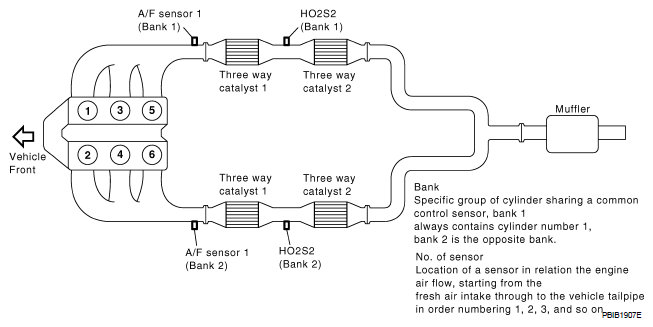

Fig 5: Identifying Electric Ignition System Components Location (5 Of 22)

G07168691

Courtesy of NISSAN MOTOR CO., U.S.A.

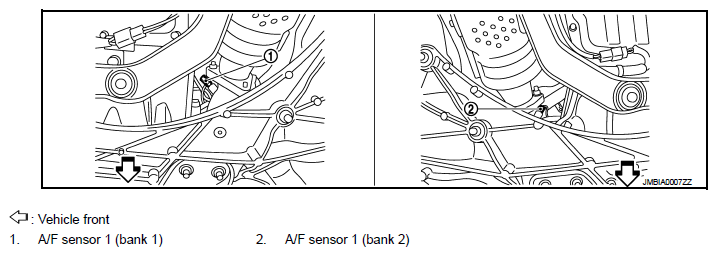

Fig 6: Identifying Electric Ignition System Components Location (6 Of 22)

G07168692

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Electric Ignition System Components Location (7 Of 22)

G07168693

Courtesy of NISSAN MOTOR CO., U.S.A.

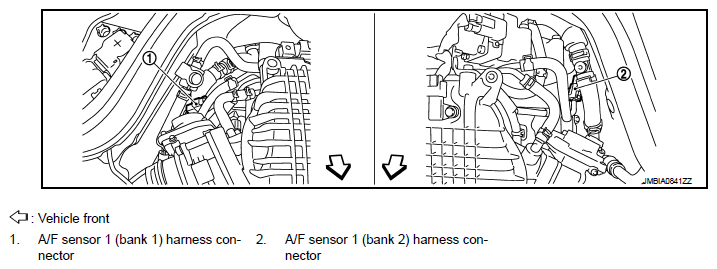

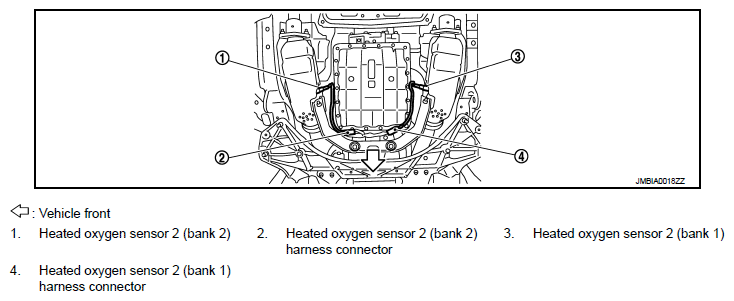

Fig 8: Identifying Electric Ignition System Components Location (8 Of 22)

G07168694

Courtesy of NISSAN MOTOR CO., U.S.A.

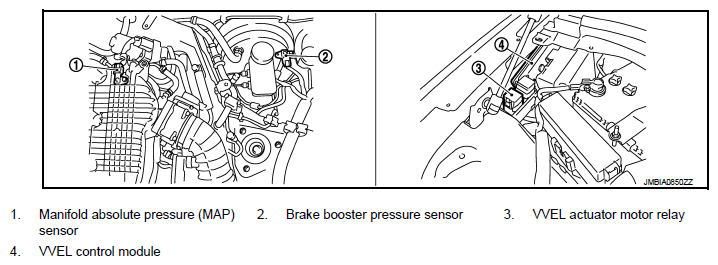

Fig 9: Identifying Electric Ignition System Components Location (9 Of 22)

G07168695

Courtesy of NISSAN MOTOR CO., U.S.A.

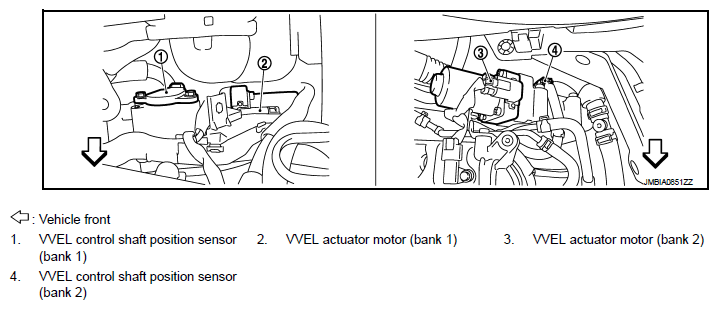

Fig 10: Identifying Electric Ignition System Components Location (10 Of 22)

G07168696

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Electric Ignition System Components Location (11 Of 22)

G07168697

Courtesy of NISSAN MOTOR CO., U.S.A.

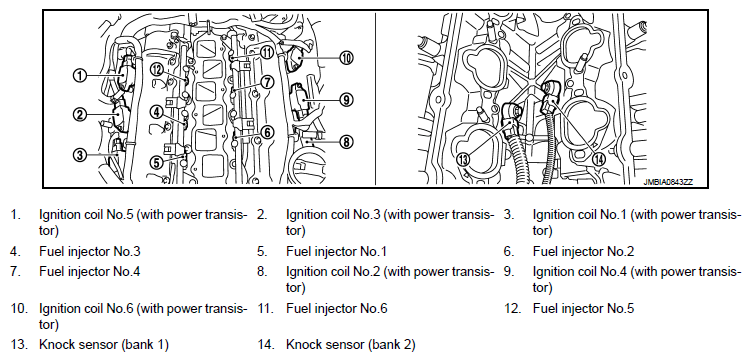

Fig 12: Identifying Electric Ignition System Components Location (12 Of 22)

G07168698

Courtesy of NISSAN MOTOR CO., U.S.A.

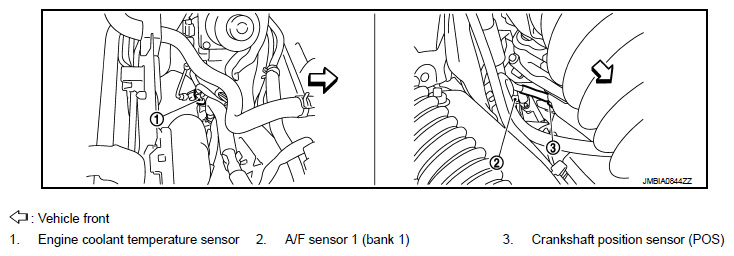

Fig 13: Identifying Electric Ignition System Components Location (13 Of 22)

G07168699

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Electric Ignition System Components Location (14 Of 22)

G07168700

Courtesy of NISSAN MOTOR CO., U.S.A.

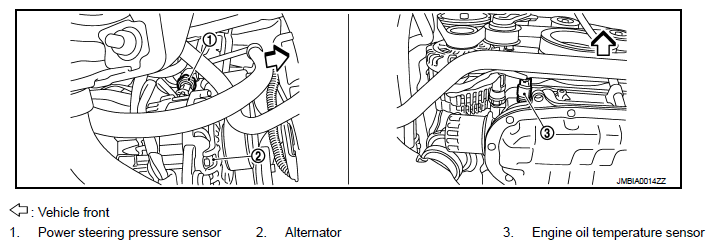

Fig 15: Identifying Electric Ignition System Components Location (15 Of 22)

G07168701

Courtesy of NISSAN MOTOR CO., U.S.A.

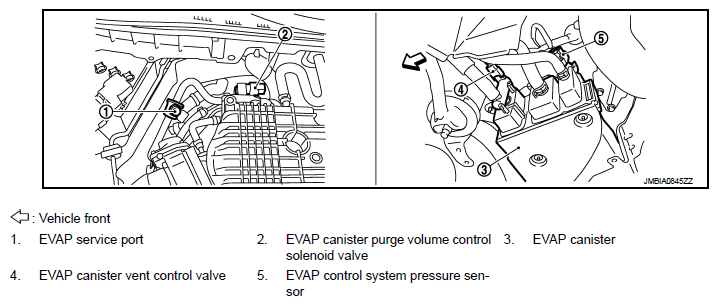

Fig 16: Identifying Electric Ignition System Components Location (16 Of 22)

G07168702

Courtesy of NISSAN MOTOR CO., U.S.A.

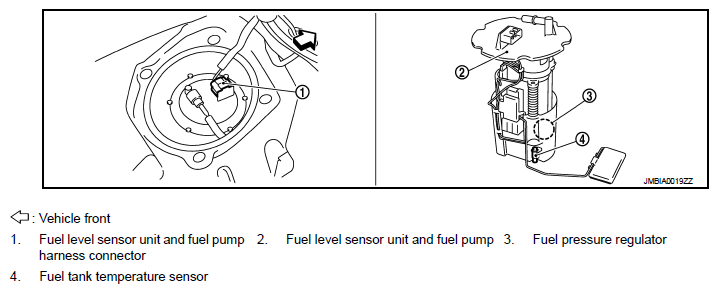

Fig 17: Identifying Electric Ignition System Components Location (17 Of 22)

G07168703

Courtesy of NISSAN MOTOR CO., U.S.A.

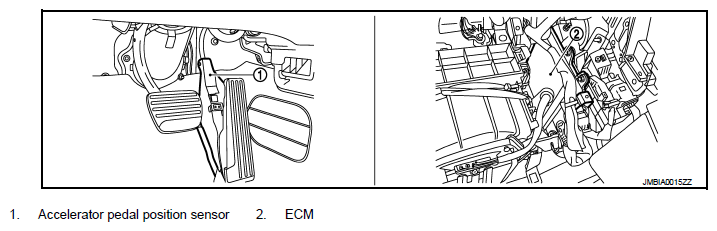

Fig 18: Identifying Electric Ignition System Components Location (18 Of 22)

G07168704

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Electric Ignition System Components Location (19 Of 22)

G07168705

Courtesy of NISSAN MOTOR CO., U.S.A.

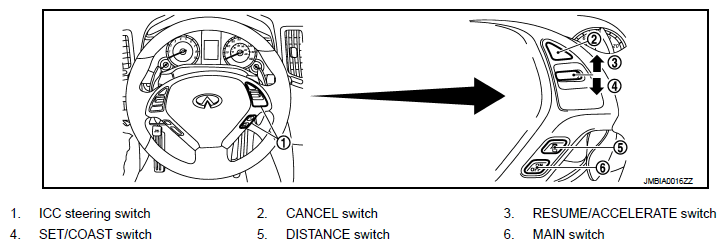

Fig 20: Identifying Electric Ignition System Components Location (20 Of 22)

G07168706

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Electric Ignition System Components Location (21 Of 22)

G07168707

Courtesy of NISSAN MOTOR CO., U.S.A.

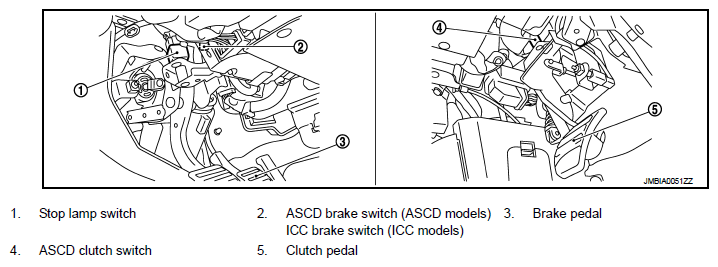

Fig 22: Identifying Electric Ignition System Components Location (22 Of 22)

G07168708

Courtesy of NISSAN MOTOR CO., U.S.A.
