Section 12 (Engine Cooling System -- G37 Convertible)
›
System Description
›
Description
›
Engine Cooling System
Engine Cooling System
WARNING:
This page is about a different variant/trim than selected.

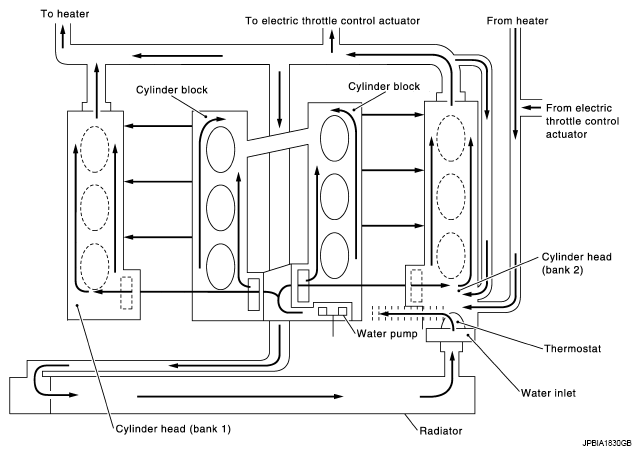

Fig 1: Engine Cooling System Flow Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
