Component Parts Location

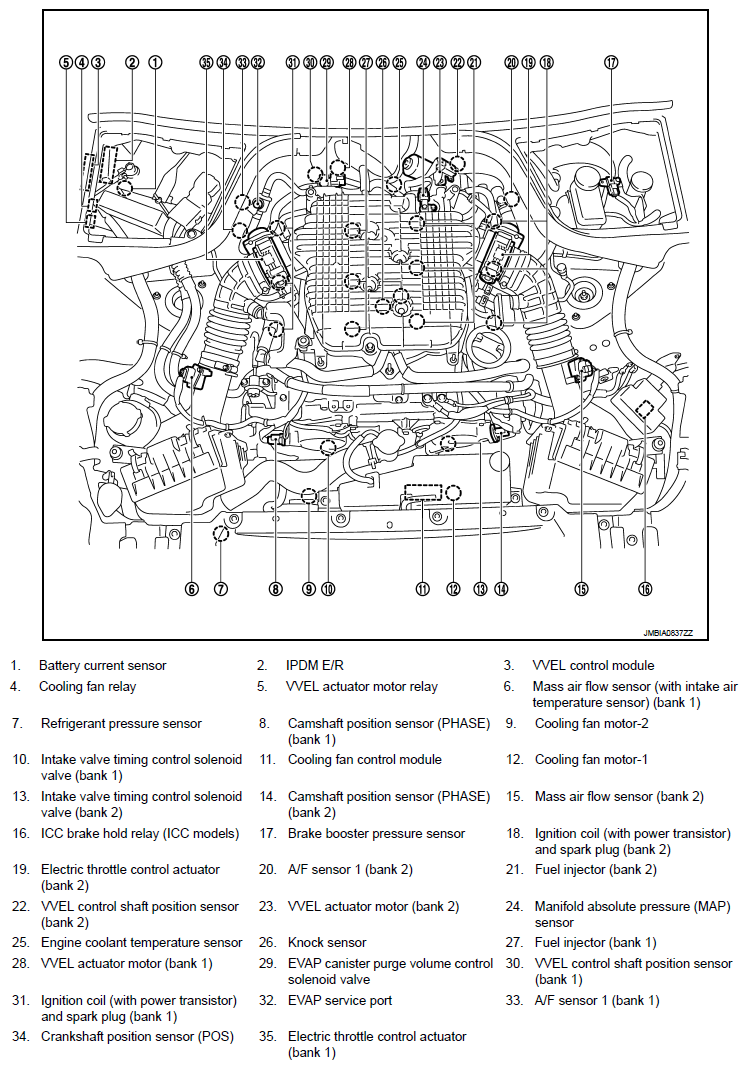

Fig 1: Identifying Engine Control System Components Location (1 Of 4)

G07011965

Courtesy of NISSAN MOTOR CO., U.S.A.

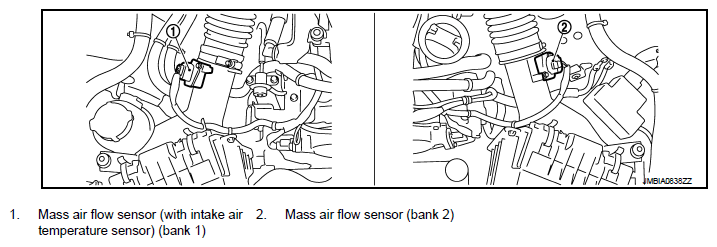

Fig 2: Identifying Engine Control System Components Location (2 Of 4)

G07011966

Courtesy of NISSAN MOTOR CO., U.S.A.

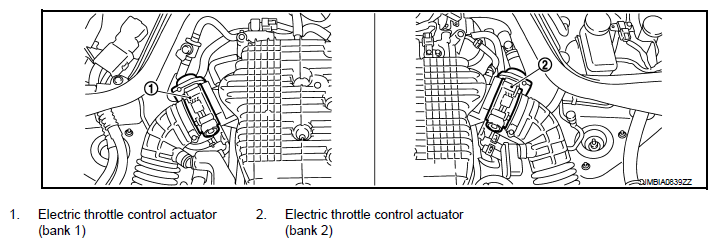

Fig 3: Identifying Engine Control System Components Location (3 Of 4)

G07011967

Courtesy of NISSAN MOTOR CO., U.S.A.

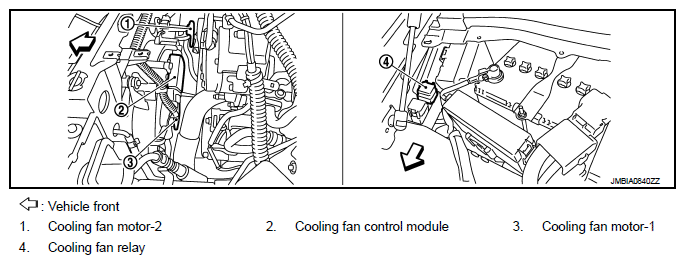

Fig 4: Identifying Engine Control System Components Location (4 Of 4)

G07011968

Courtesy of NISSAN MOTOR CO., U.S.A.

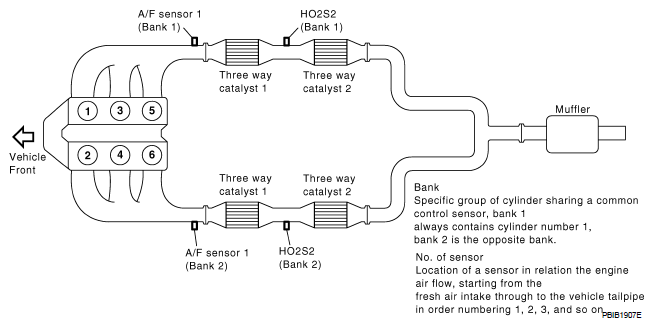

Fig 5: Identifying Engine Control System Three Way Catalyst Converter And Muffler

G07011969

Courtesy of NISSAN MOTOR CO., U.S.A.

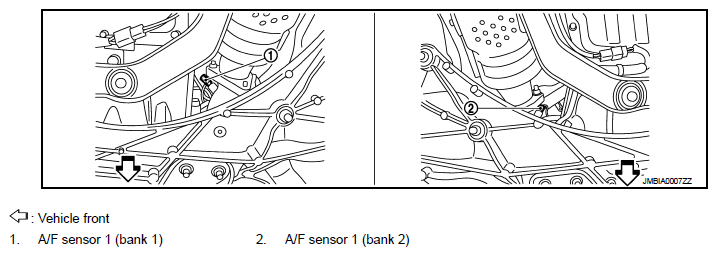

Fig 6: Identifying Engine Control System Components Location (1 Of 17)

G07011970

Courtesy of NISSAN MOTOR CO., U.S.A.

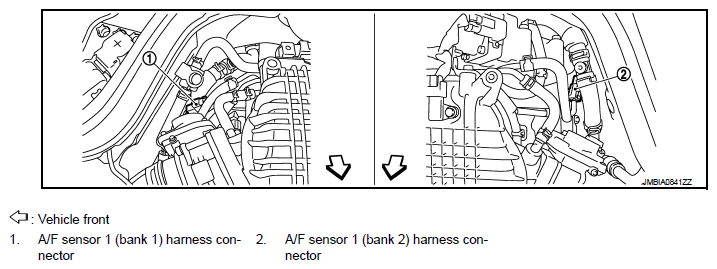

Fig 7: Identifying Engine Control System Components Location (2 Of 17)

G07011971

Courtesy of NISSAN MOTOR CO., U.S.A.

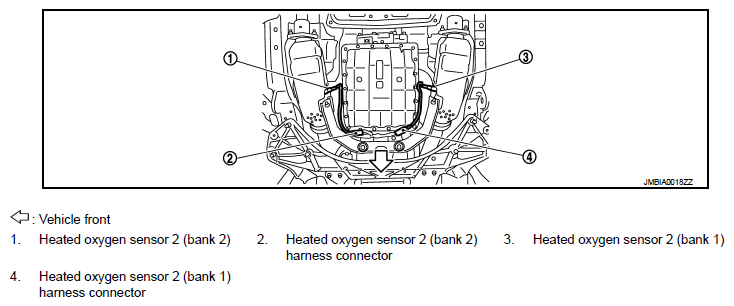

Fig 8: Identifying Engine Control System Components Location (3 Of 17)

G07011972

Courtesy of NISSAN MOTOR CO., U.S.A.

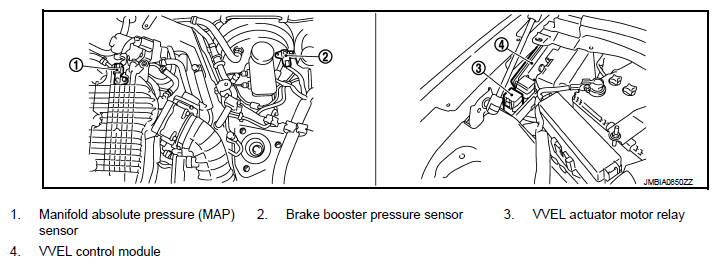

Fig 9: Identifying Engine Control System Components Location (4 Of 17)

G07011973

Courtesy of NISSAN MOTOR CO., U.S.A.

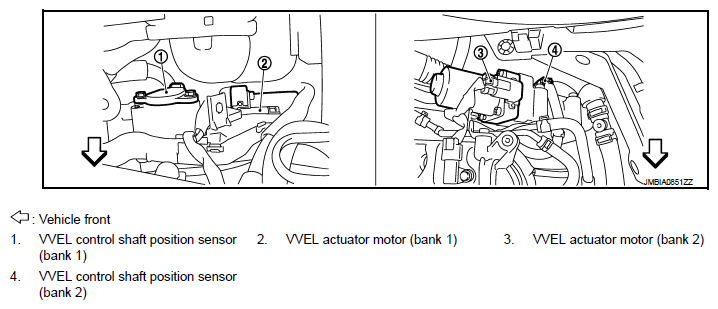

Fig 10: Identifying Engine Control System Components Location (5 Of 17)

G07011974

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Engine Control System Components Location (6 Of 17)

G07011975

Courtesy of NISSAN MOTOR CO., U.S.A.

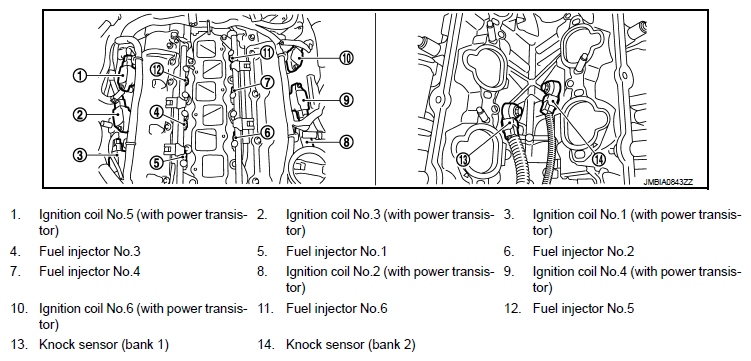

Fig 12: Identifying Engine Control System Components Location (7 Of 17)

G07011976

Courtesy of NISSAN MOTOR CO., U.S.A.

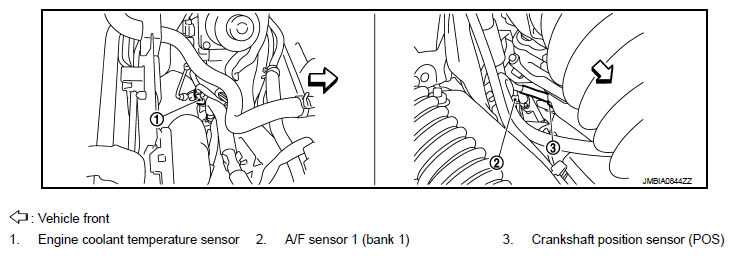

Fig 13: Identifying Engine Control System Components Location (8 Of 17)

G07011977

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Components Location (9 Of 17)

G07011978

Courtesy of NISSAN MOTOR CO., U.S.A.

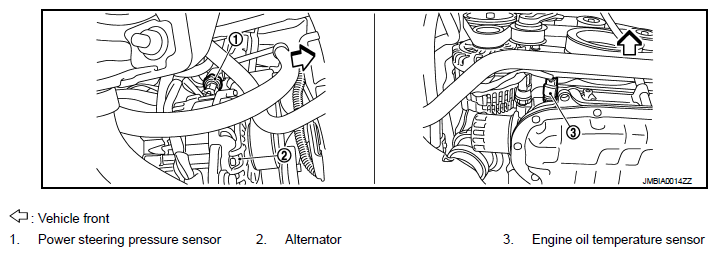

Fig 15: Identifying Engine Control System Components Location (10 Of 17)

G07011979

Courtesy of NISSAN MOTOR CO., U.S.A.

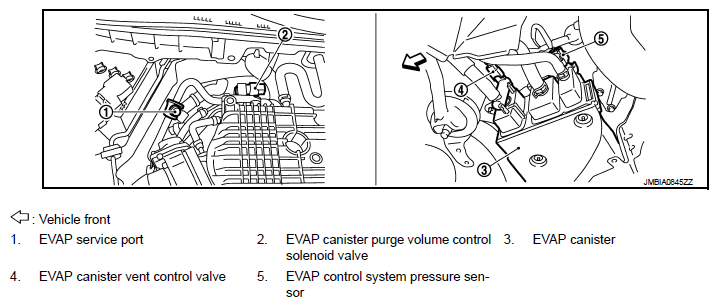

Fig 16: Identifying Engine Control System Components Location (11 Of 17)

G07011980

Courtesy of NISSAN MOTOR CO., U.S.A.

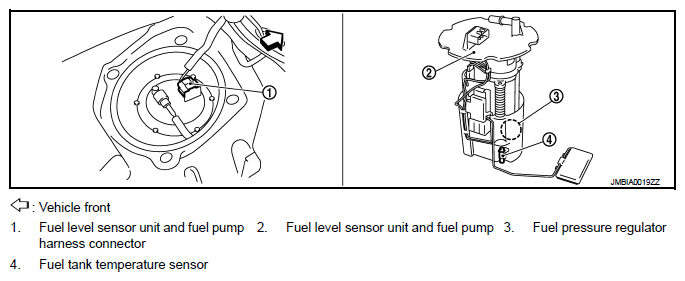

Fig 17: Identifying Engine Control System Components Location (12 Of 17)

G07011981

Courtesy of NISSAN MOTOR CO., U.S.A.

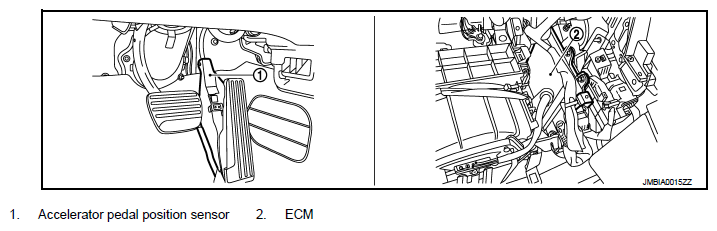

Fig 18: Identifying Engine Control System Components Location (13 Of 17)

G07011982

Courtesy of NISSAN MOTOR CO., U.S.A.

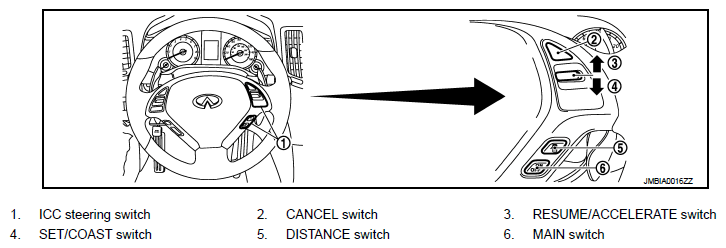

Fig 19: Identifying Engine Control System Components Location (14 Of 17)

G07011983

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Engine Control System Components Location (15 Of 17)

G07011984

Courtesy of NISSAN MOTOR CO., U.S.A.

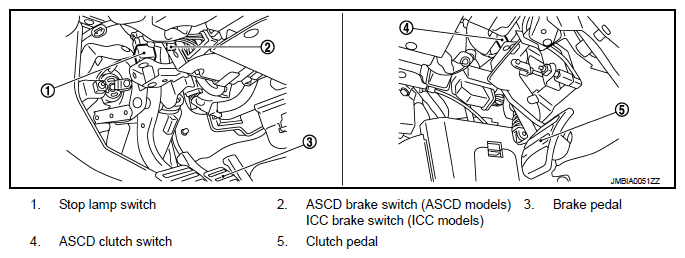

Fig 21: Identifying Engine Control System Components Location (16 Of 17)

G07011985

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 22: Identifying Engine Control System Components Location (17 Of 17)

G07011986

Courtesy of NISSAN MOTOR CO., U.S.A.
