Automatic Drive Positioner -- M37/M56
›
System Description
›
System
›
Entry Assist Function
›
ENTRY ASSIST FUNCTION : System Diagram
ENTRY ASSIST FUNCTION : System Diagram

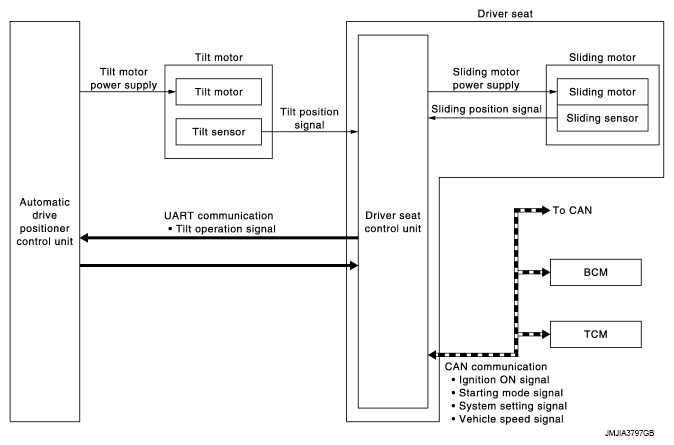

Fig 1: Entry Assist Function System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
