Component Description

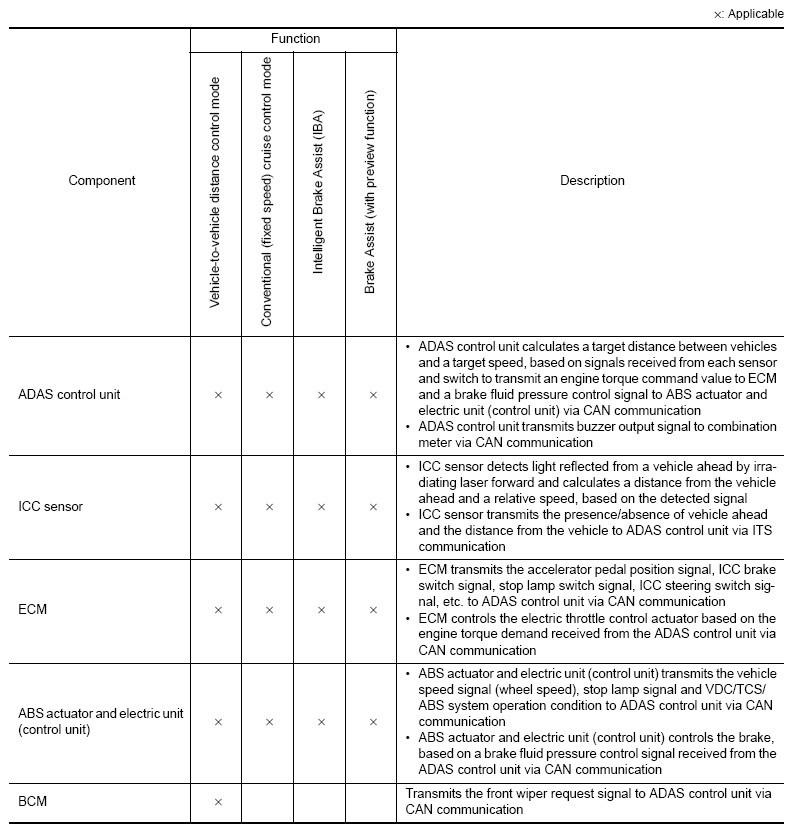

Fig 1: Brake Control System Components Description Chart (Intelligent Brake Assist) (1 Of 2)
G07019522Courtesy of NISSAN MOTOR CO., U.S.A.

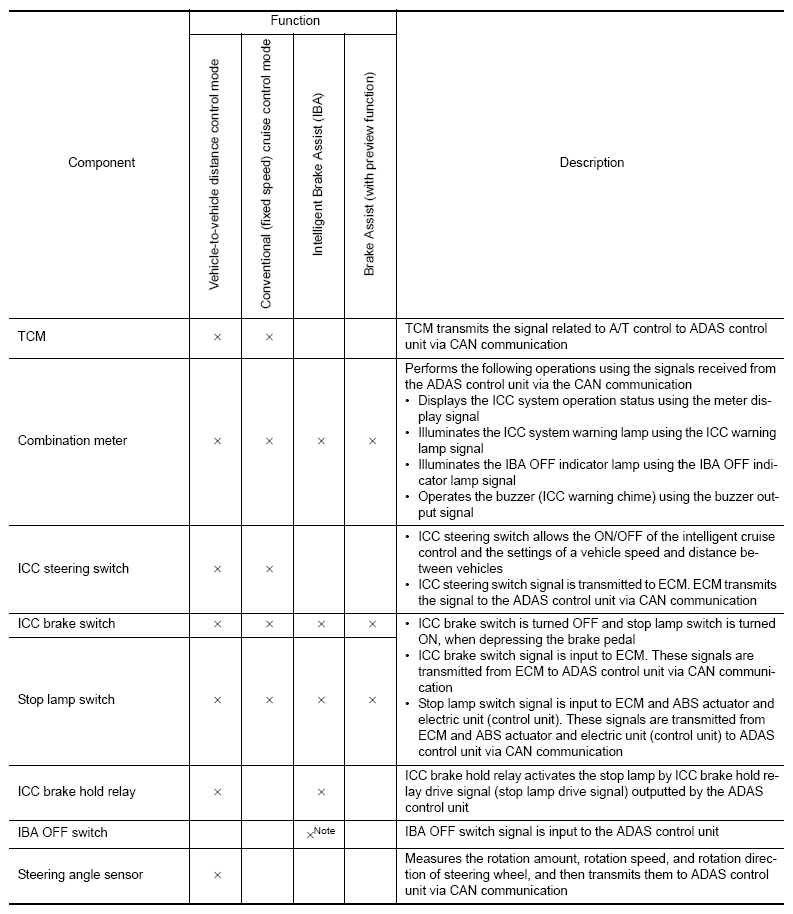

Fig 2: Brake Control System Components Description Chart (Intelligent Brake Assist) (2 Of 2)
G07019523Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Only IBA system uses
