Exploded View

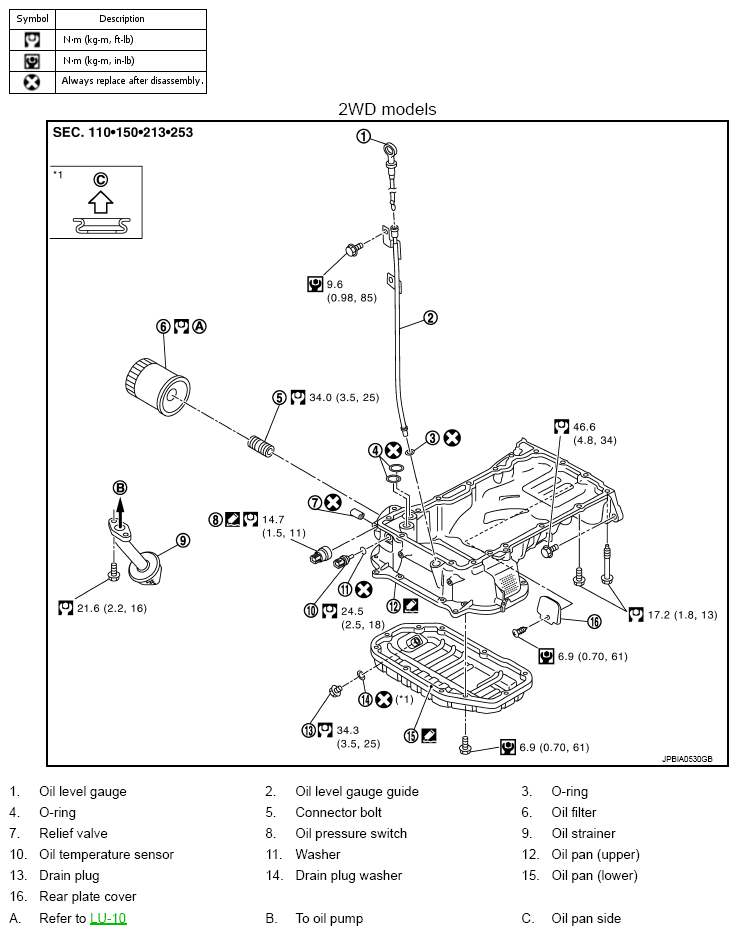

Fig 1: Exploded View Of Oil Pan With Torque Specifications - 2WD Model (Lower)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

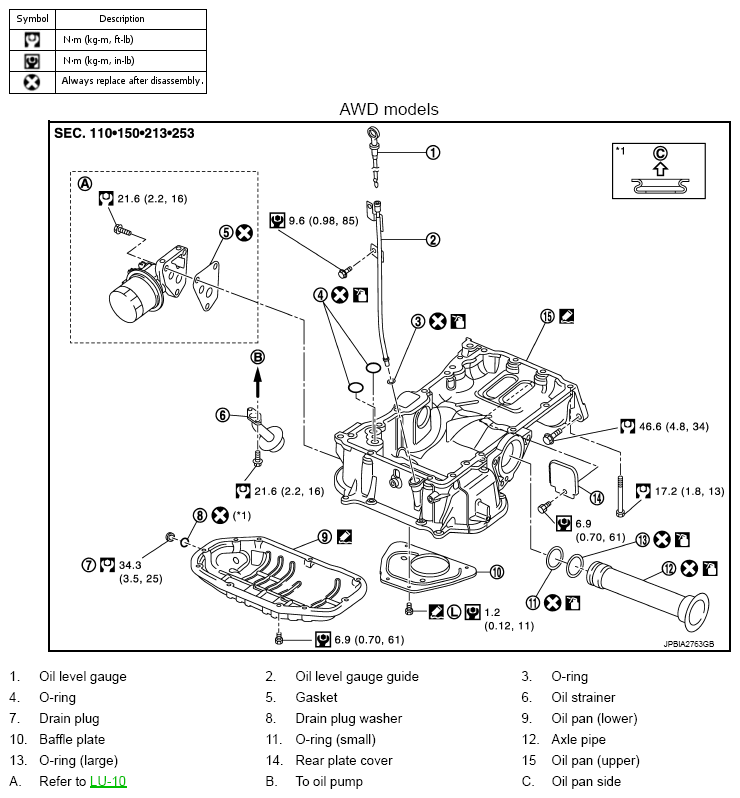

Fig 2: Exploded View Of Oil Pan With Torque Specifications - AWD Model (Lower)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
