System - Engine Mechanical & Other

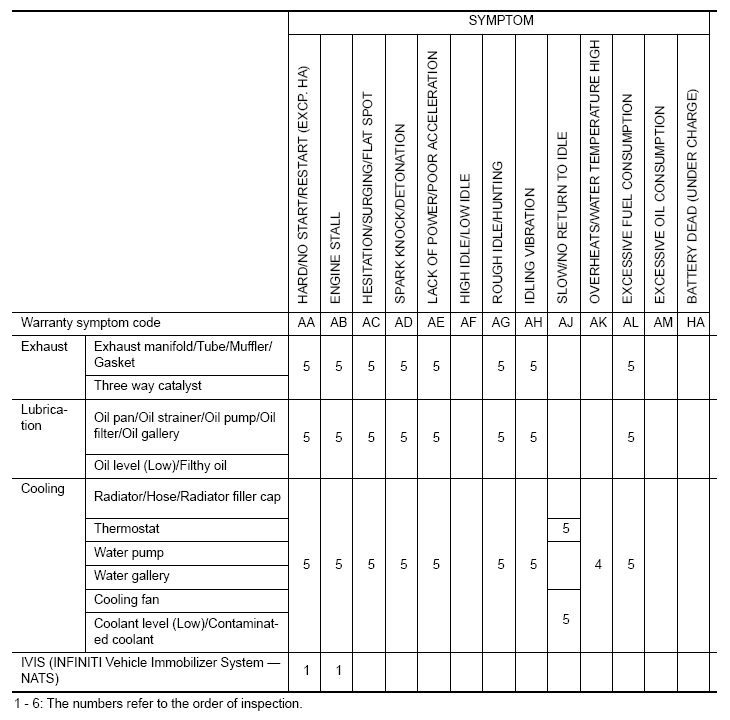

Fig 1: Engine Control System Symptoms Table (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Engine Control System Symptoms Table (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
