Engine Control System - Introduction
›
System Description
›
System
›
Cooling Fan Control
›
COOLING FAN CONTROL : System Diagram
COOLING FAN CONTROL : System Diagram

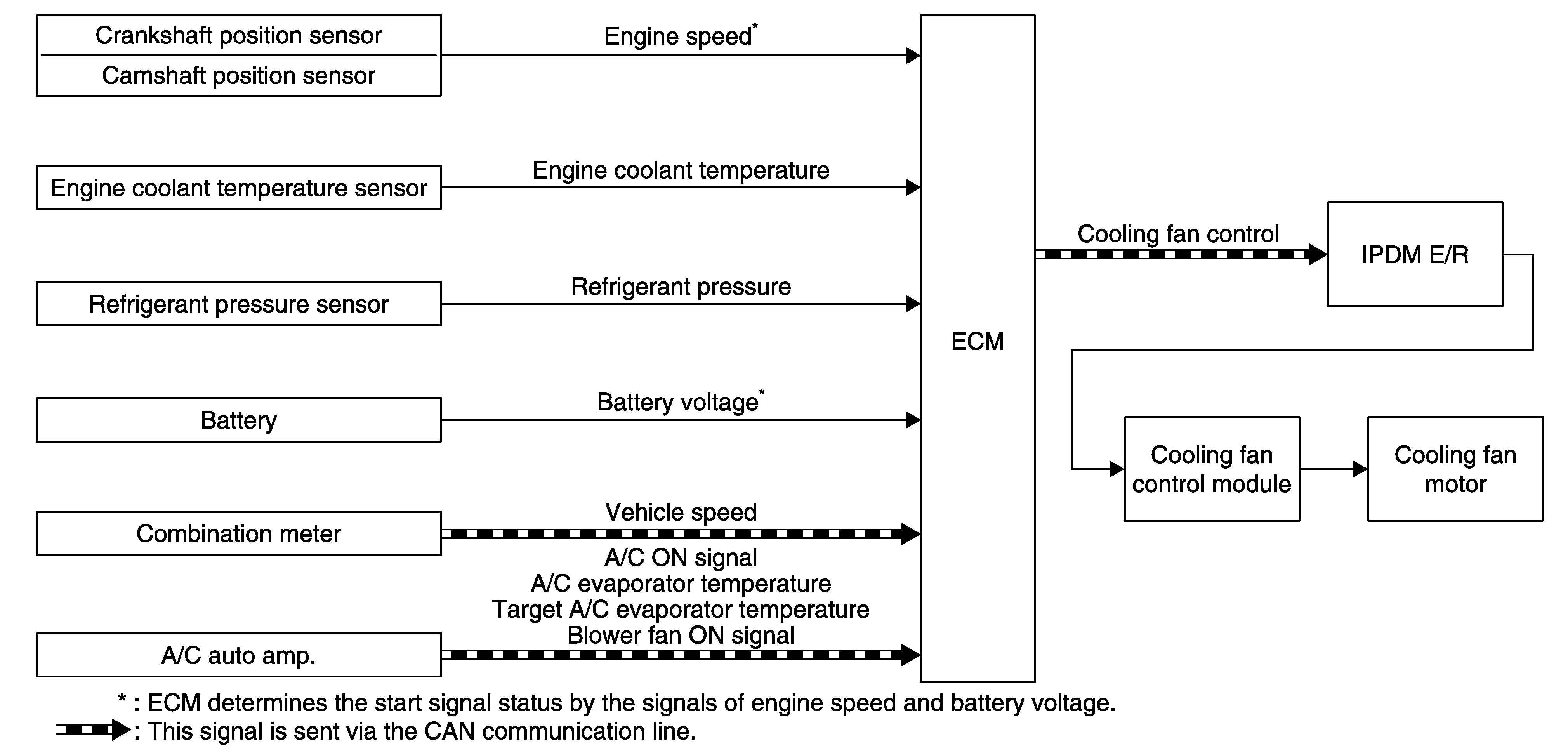

Fig 1: Cooling Fan Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
