Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear console assembly. Refer to "REMOVAL AND INSTALLATION ".
Remove rear console rear finisher.
Pull back rear console rear finisher, and then disengage metal clips.

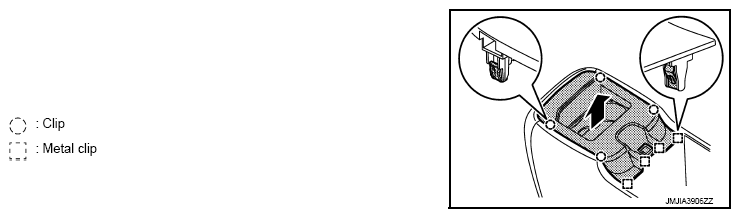

Fig 1: Removing Rear Console Rear Finisher
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear console mask.
1. Open the rear console lid assembly.
2. Remove rear console hinge mask fixing pawls with remover tool (A).
3. Pull rear console hinge mask up and back.

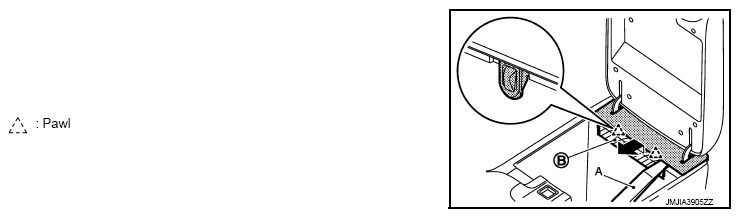

  Fig 2: Removing Rear Console Hinge Mask Fixing Pawls
  Courtesy of NISSAN MOTOR CO., U.S.A.

  CAUTION: Apply protective tape (B) on the part to protect it from damage.
Remove console lid assembly mounting screws (A), and then remove console lid assembly.
Remove rear cup holder assembly.
1. Open the rear console lid assembly.
2. Pull upward to release rear cup holder assembly fixing clips and metal clips from rear console assembly.
3. Pull rear console mask up and back.

  Fig 3: Removing Console Lid Assembly Mounting Screws
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear console front finisher.
1. Remove screws (A).
2. Pull rear console front finisher, and then disengage metal clips.

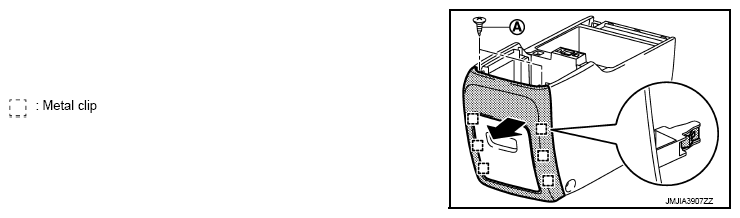

  Fig 4: Pulling Rear Console Front Finisher
