Drive Plate Deflection

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check drive plate and signal plate (A) for deformation or damage.

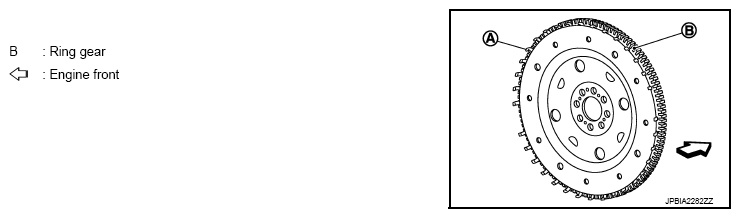

Fig 1: Identifying Signal Plate
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Never disassemble drive plate.
- Never place drive plate with signal plate facing down.
- When handling signal plate, take care not to damage or scratch it.
- Handle signal plate in a manner that prevents it from becoming magnetized.
If damage is found, replace drive plate.
Measure the deflection of drive plate contact surface to torque converter with a dial indicator (A).
Measure the deflection at the area (B).
Limit: 0.35 mm (0.0138 in) or less .

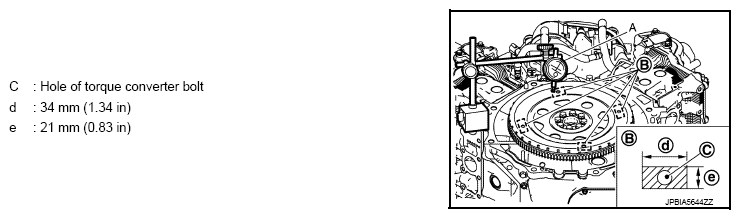

Fig 2: Measuring Deflection Of Drive Plate Contact Surface Using Dial Indicator
Courtesy of NISSAN NORTH AMERICA, INC.
If measured value is out of the standard, replace drive plate.
