Exploded View

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

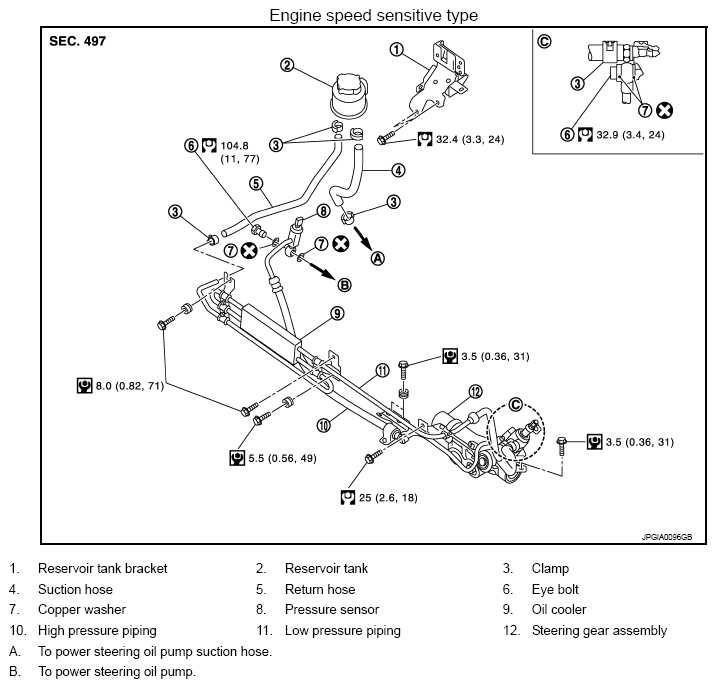

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (Engine Speed Sensitive Type)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

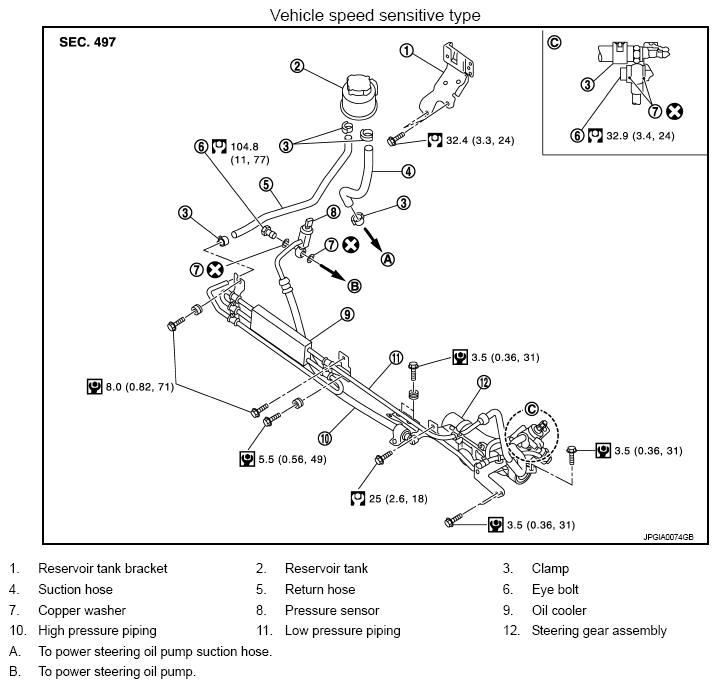

Fig 2: Exploded View Of Hydraulic Line With Torque Specifications (Vehicle Speed Sensitive Type)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
