Section 85 (Engine Lubrication System)
›
System Description
›
Lubrication System
›
Engine Lubrication System
Engine Lubrication System
WARNING:
This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

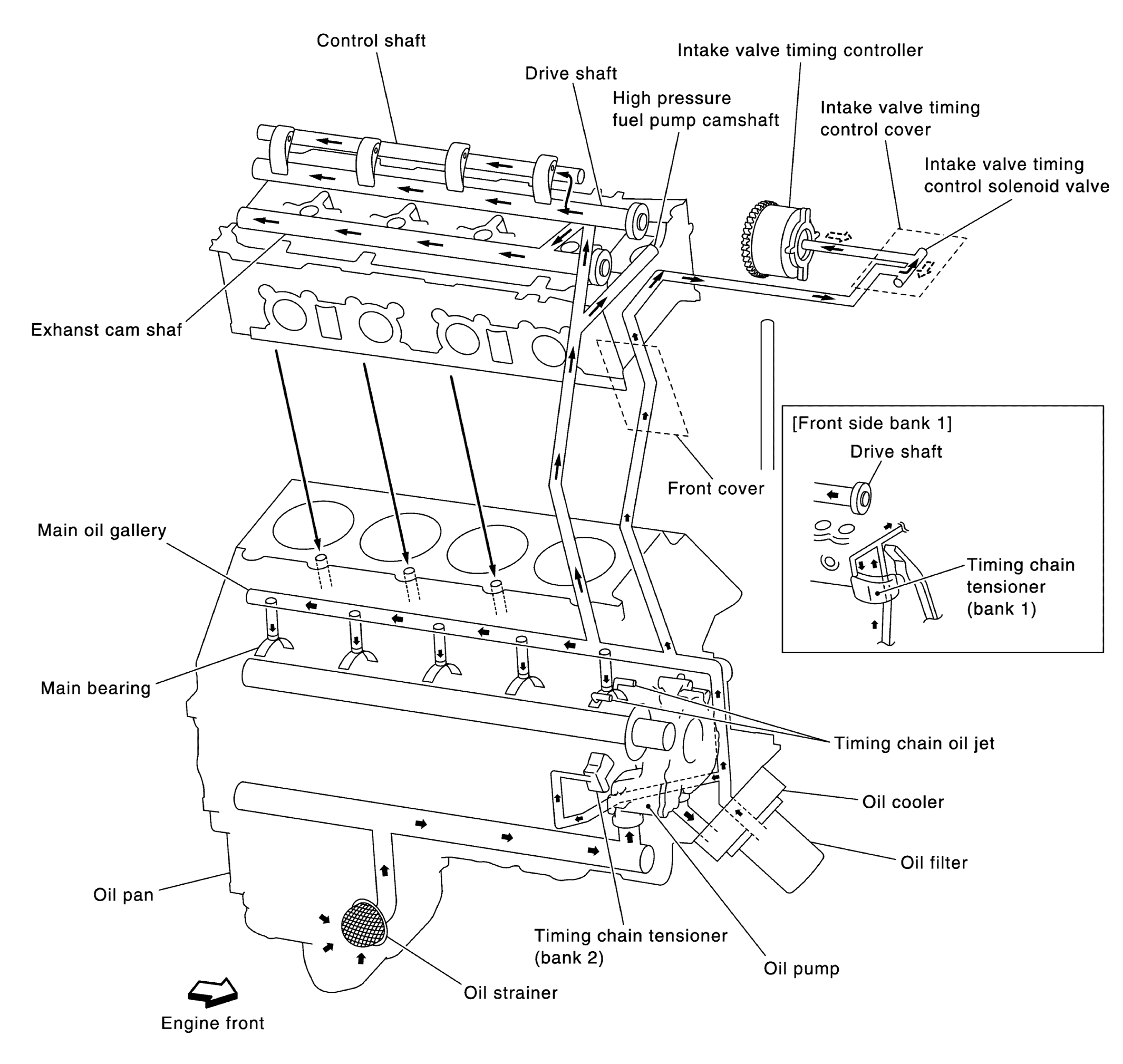

Fig 1: Engine Lubrication System Flow Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
