Work Support

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Work support items	Description
CAUSE OF AUTO-CANCEL 1	Displays causes of automatic system cancellation occurred during control of the following systems Vehicle-to-vehicle distance control mode Conventional (fixed speed) cruise control mode Distance Control Assist (DCA)
CAUSE OF AUTO-CANCEL 2	Displays causes of automatic system cancellation occurred during control of the following systems Lane Departure Prevention (LDP) Blind Spot Intervention

NOTE:

Causes of the maximum five cancellations (system cancel) are displayed.
The displayed cancellation causes display the number of the ignition switch ON/OFF up to 254. It is fixed to 254 if it is over 254. It returns to 0 when the same cancellation cause is detected again.

Display Items for The Cause of Automatic Cancellation 1

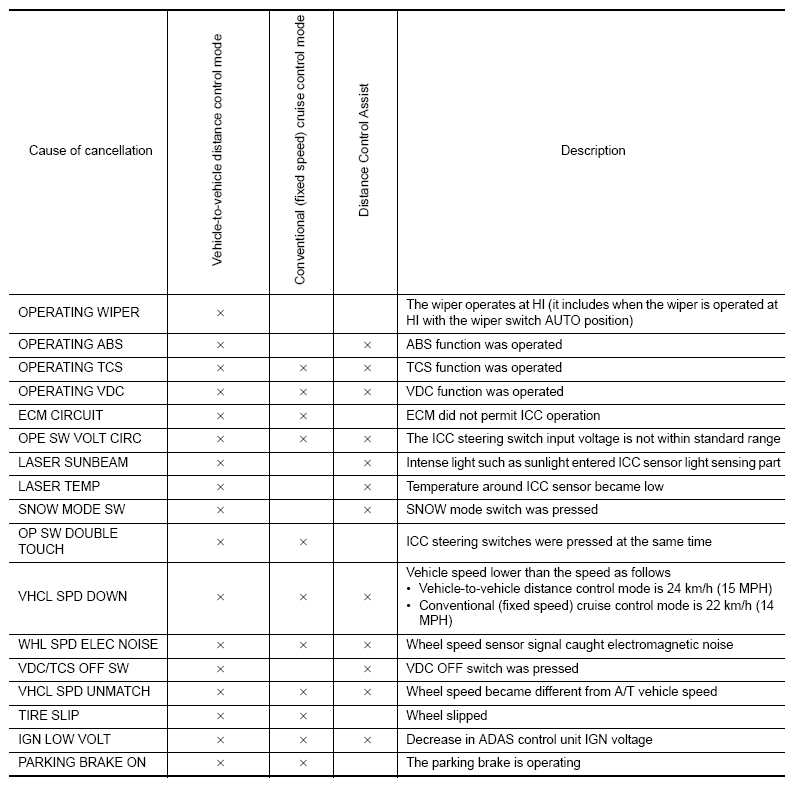

Fig 1: Causes Of Automatic Cancellation 1 Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

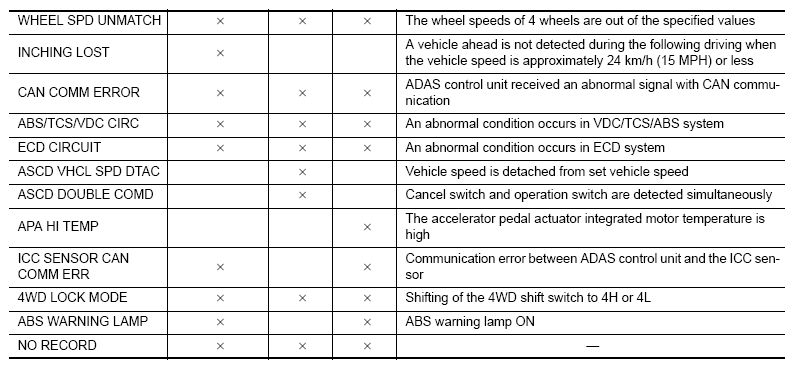

Fig 2: Causes Of Automatic Cancellation 1 Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Display Items for The Cause of Automatic Cancellation 2

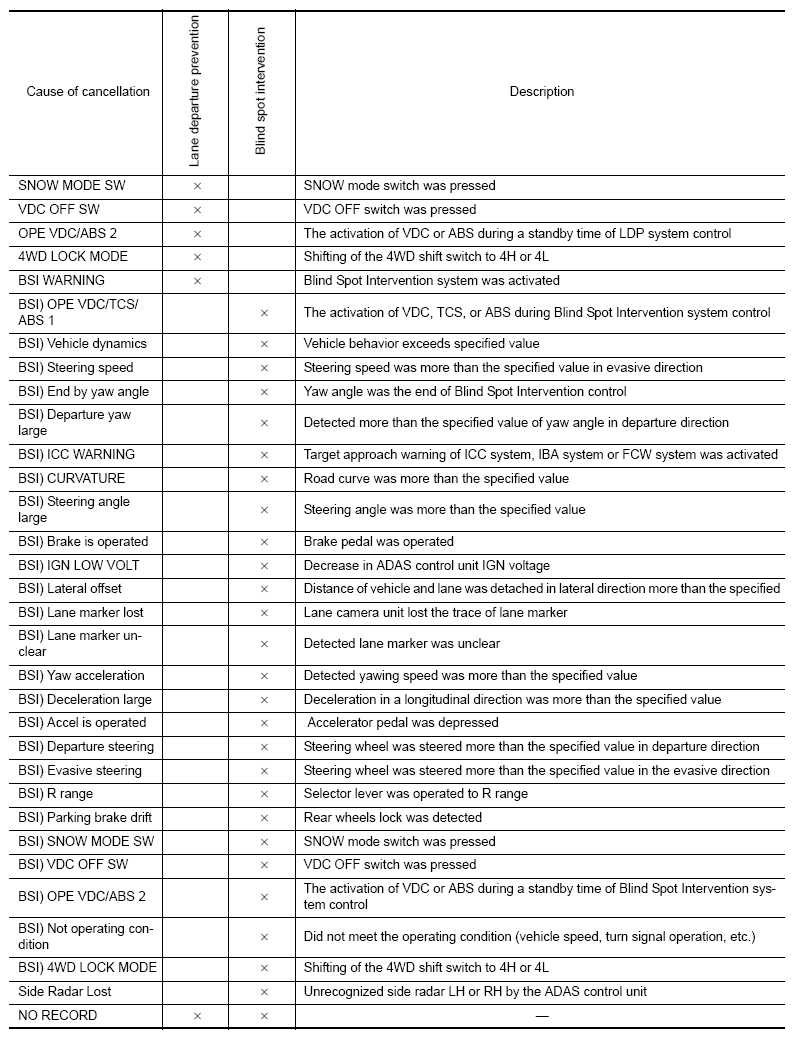

Fig 3: Causes Of Automatic Cancellation 2 Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

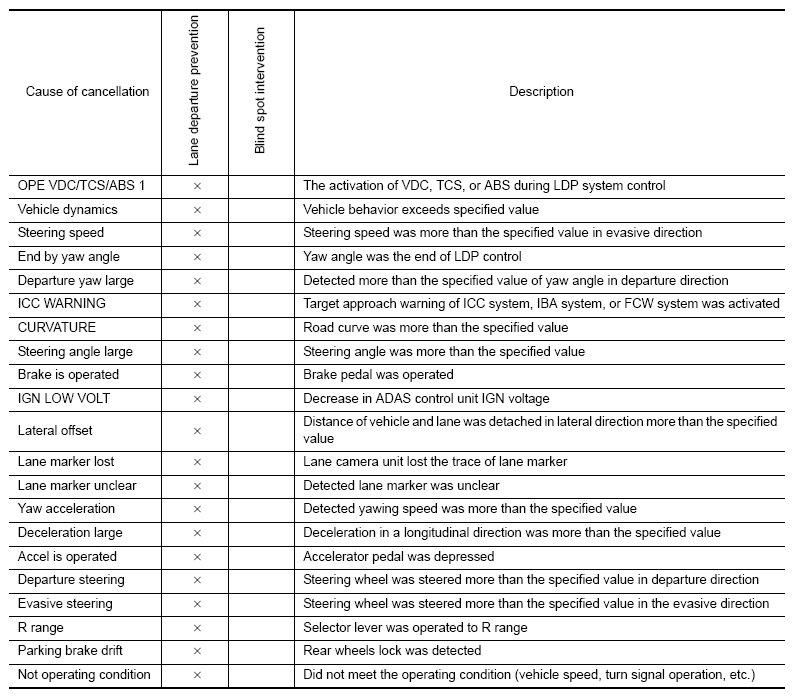

Fig 4: Causes Of Automatic Cancellation 2 Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
