Automatic Transmission -- M37/M56
›
System Description
›
Structure And Operation
›
Cross-Sectional View
›
2WD Models
2WD Models

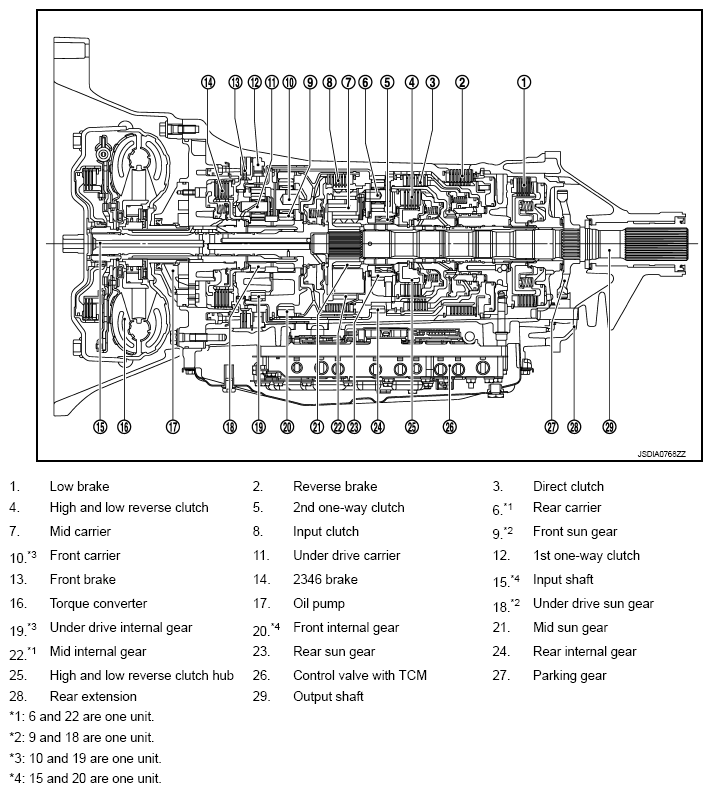

Fig 1: Cross-Sectional View Of Transmission Assembly (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
