Automatic Transmission -- M37/M56
›
System Description
›
Structure And Operation
›
Cross-Sectional View
›
AWD Models
AWD Models

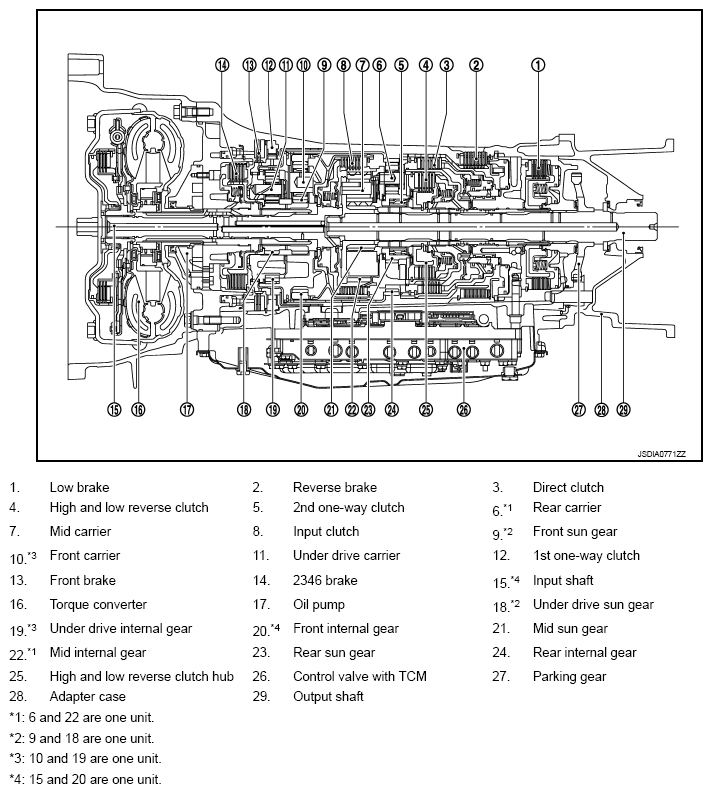

Fig 1: Cross-Sectional View Of Transmission Assembly (AWD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
