Engine Control System - Introduction
›
System Description
›
System
›
Engine Control System
›
ENGINE CONTROL SYSTEM : System Diagram
ENGINE CONTROL SYSTEM : System Diagram

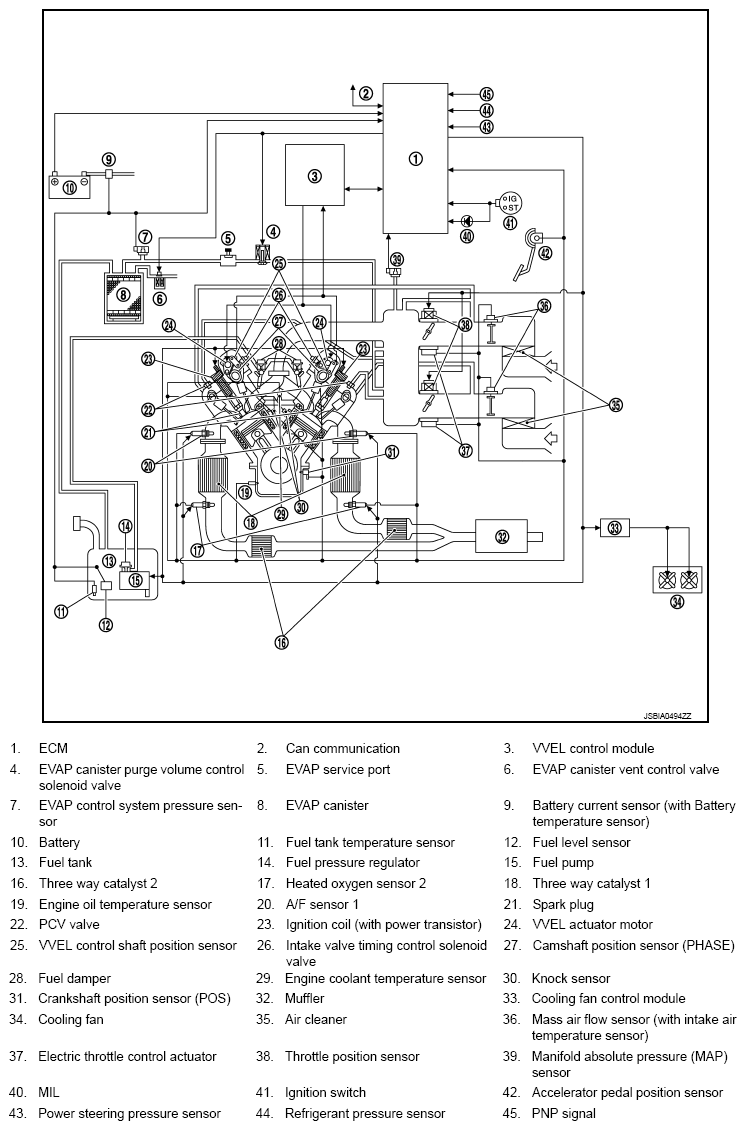

Fig 1: Engine Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
