Data Monitor

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

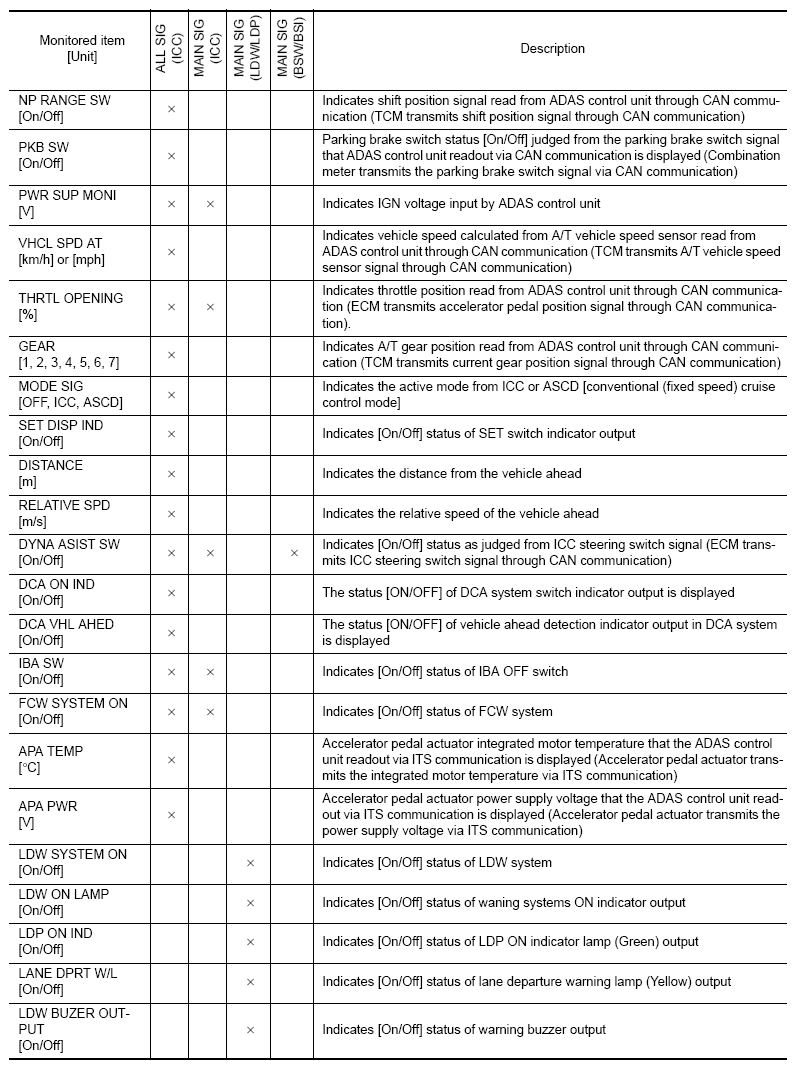

Fig 1: Self Diagnostic Result (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

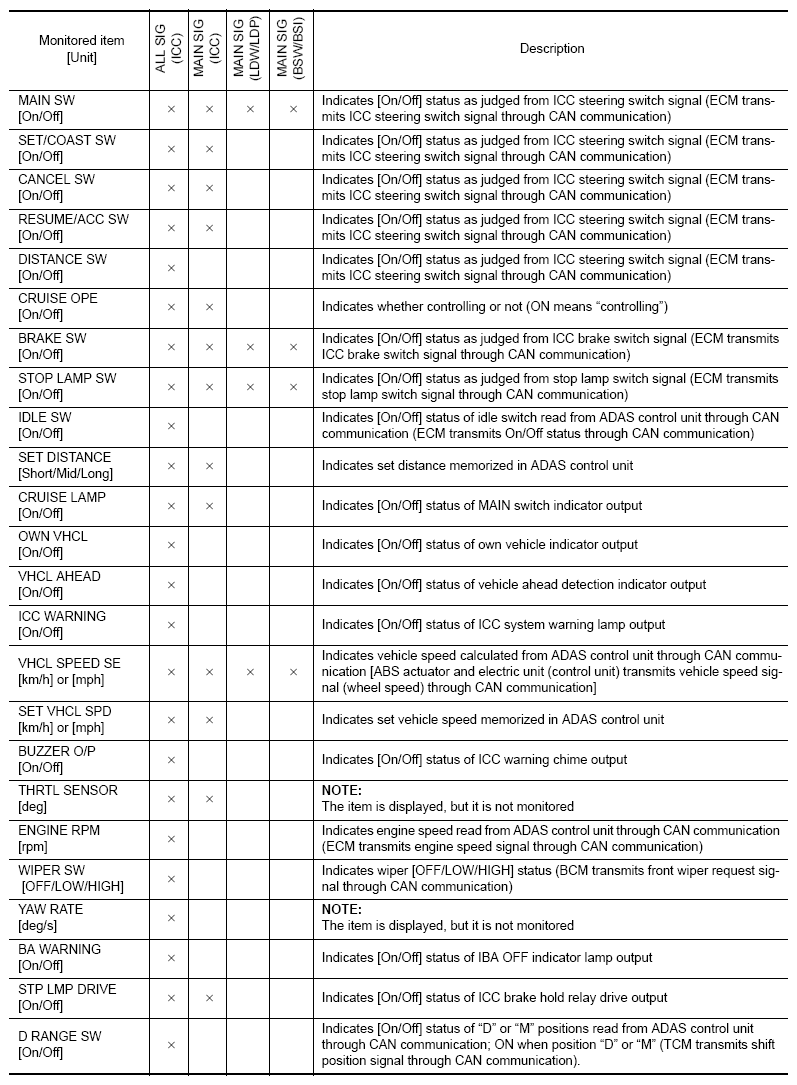

Fig 2: Self Diagnostic Result (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

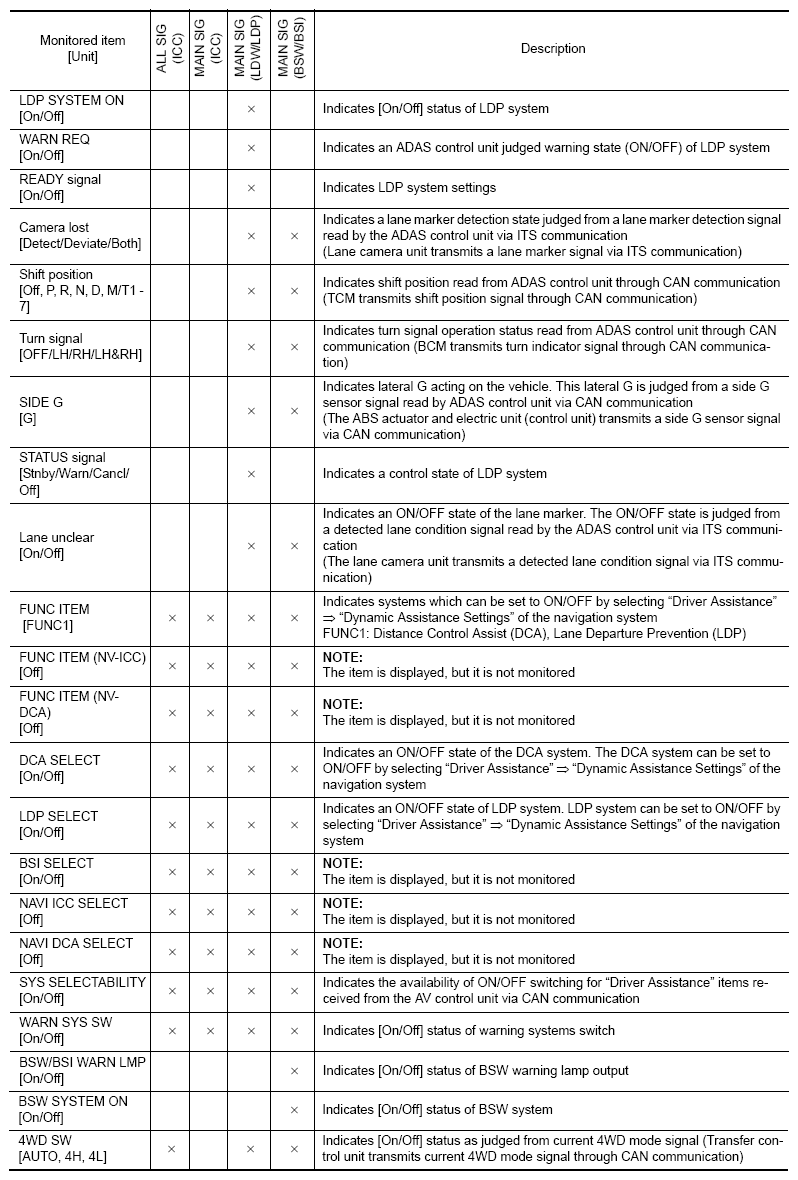

Fig 3: Self Diagnostic Result (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
