Engine Control System - Introduction, System Description And Basic Inspection (VK56VD)
›
System Description
›
Component Parts
›
Engine Control System
›
ENGINE CONTROL SYSTEM : Component Parts Location
›
Engine Compartment
Engine Compartment

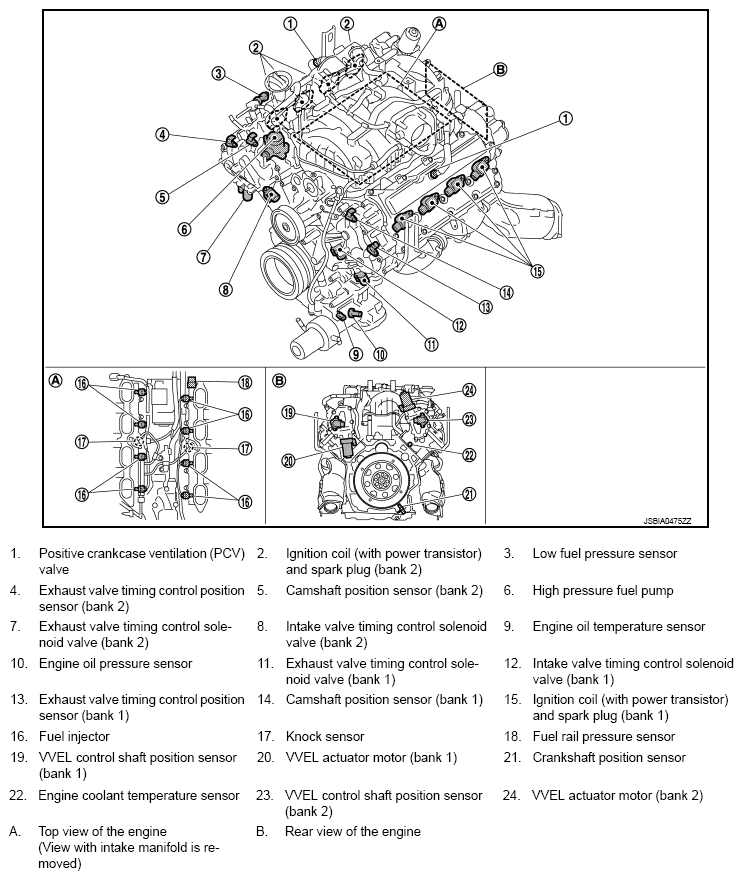

Fig 1: Identifying Engine Control System Component Parts Location - Engine Compartment
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
