Driving Pattern A

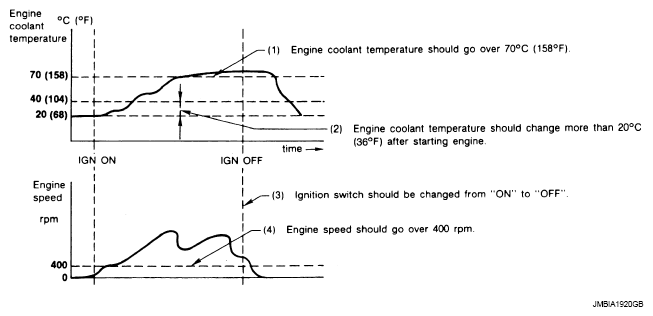

Fig 1: Driving Pattern A Reference Chart

G07020312

Courtesy of NISSAN MOTOR CO., U.S.A.

The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
The DTC will not be displayed after the A counter reaches 40.
