Exploded View

WARNING: This page is about a different car, the 2012 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

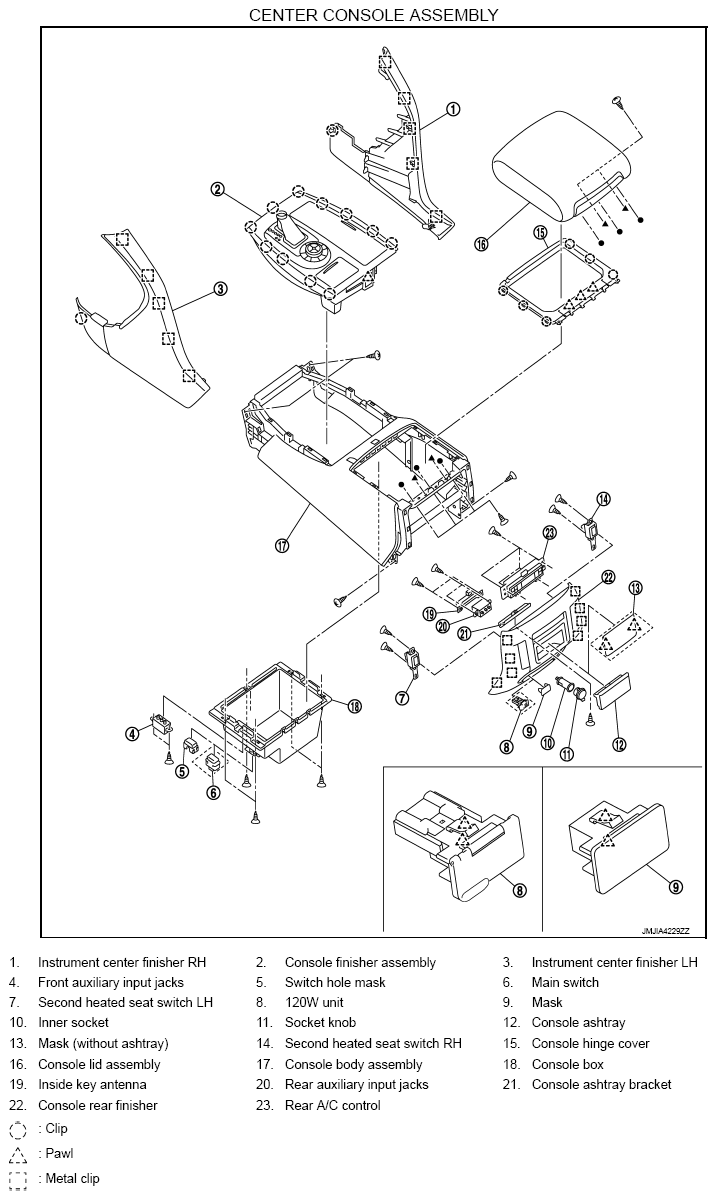

Fig 1: Exploded View Of Center Console Assembly

Courtesy of NISSAN NORTH AMERICA, INC.

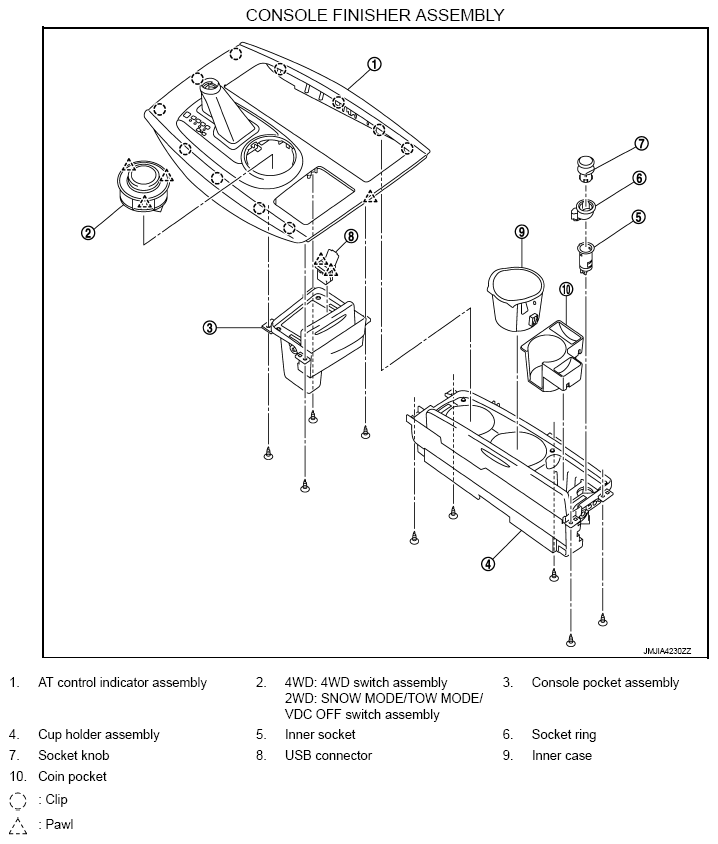

Fig 2: Exploded View Of Console Finisher Assembly

Courtesy of NISSAN NORTH AMERICA, INC.
