Drive Plate

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check drive plate and signal plate (A) for deformation or damage.

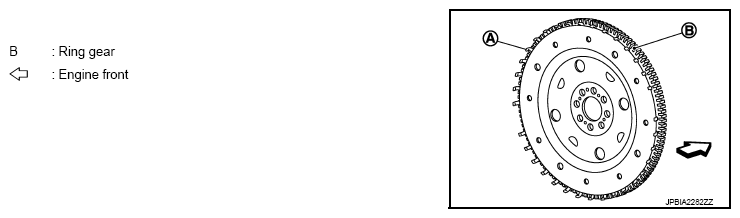

Fig 1: Checking Drive Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Never disassemble drive plate.
- Never place drive plate with signal plate facing down.
- When handling signal plate, take care not to damage or scratch it.
- Handle signal plate in a manner that prevents it from becoming magnetized.
If damage is found, replace drive plate.
