Exploded View: Disassembly

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

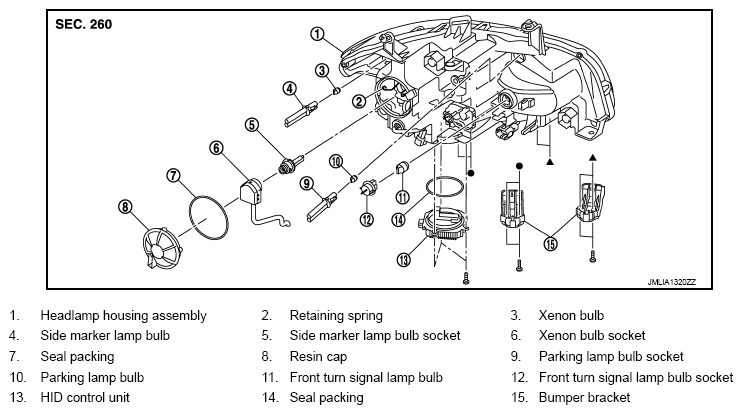

Fig 1: Disassembled View Of Front Combination Lamp

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described above.

CAUTION: HID control unit and xenon bulb socket cannot be disassembled.
