Left Side

WARNING: This page is about a different variant/trim than selected.

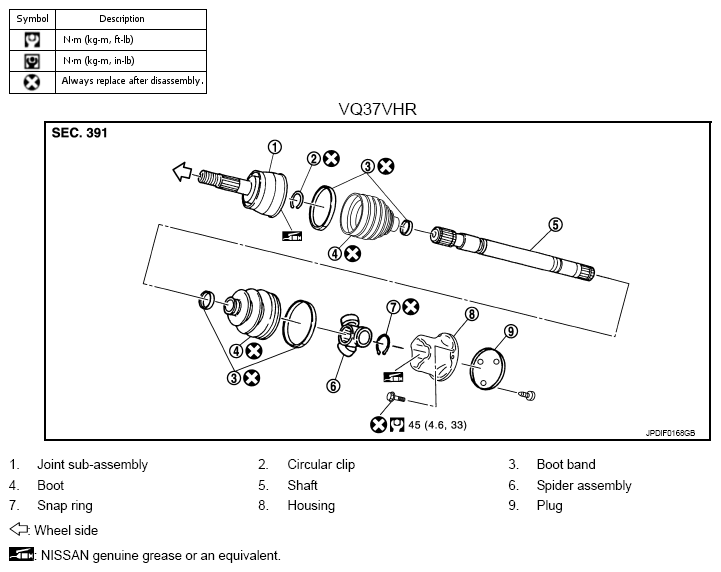

Fig 1: Exploded View Of Front Drive Shaft Boot With Torque Specifications (VQ37VHR)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

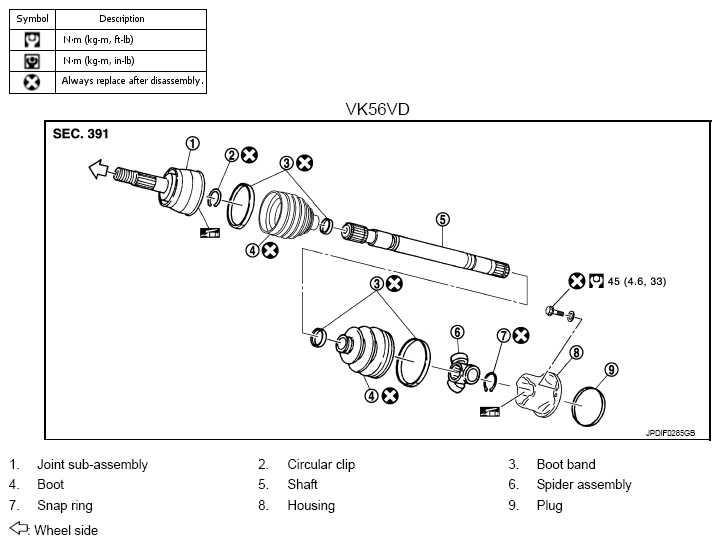

Fig 2: Exploded View Of Front Drive Shaft Boot With Torque Specifications (VK56VD)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
