AWD : Exploded View

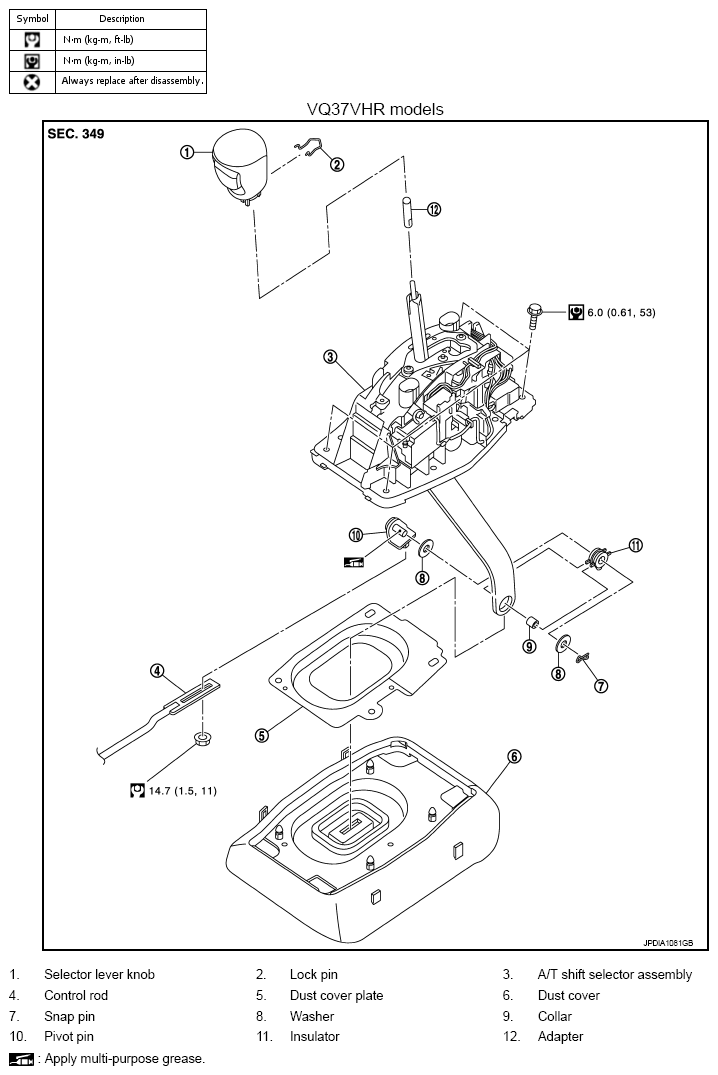

Fig 1: Exploded View Of A/T Shift Selector With Torque Specifications (AWD VQ37VHR MODEL)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

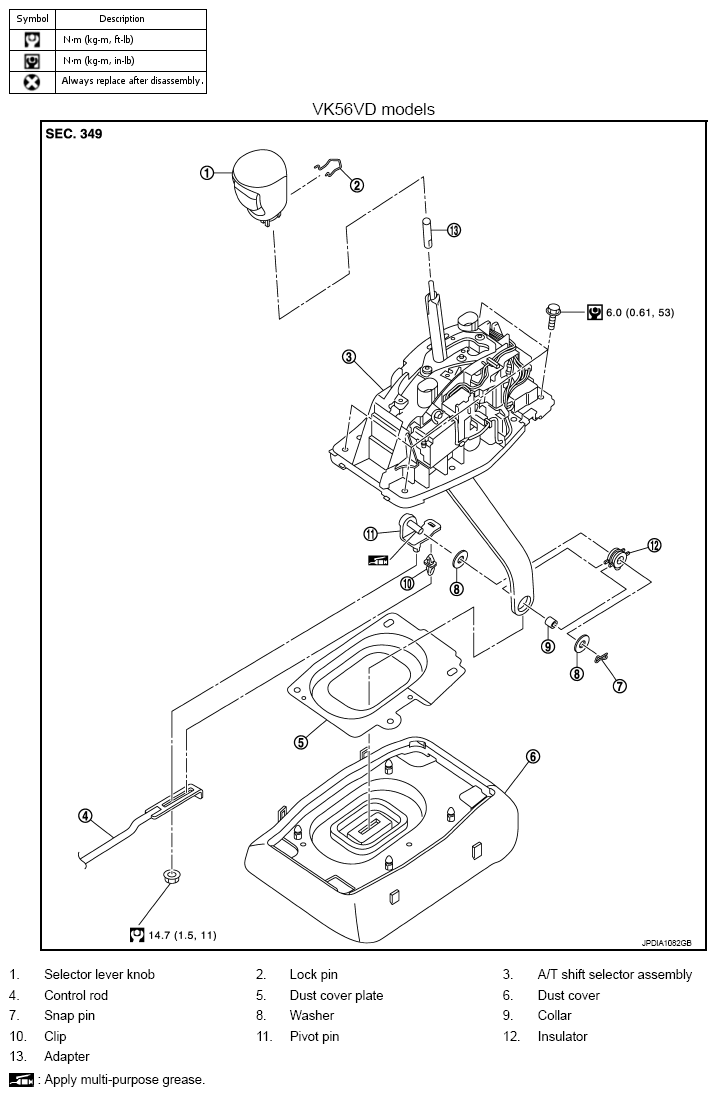

Fig 2: Exploded View Of A/T Shift Selector With Torque Specifications (AWD VK56VD MODEL)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
