How To Use This Information: Components: Notes

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubrication points and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG.

Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.

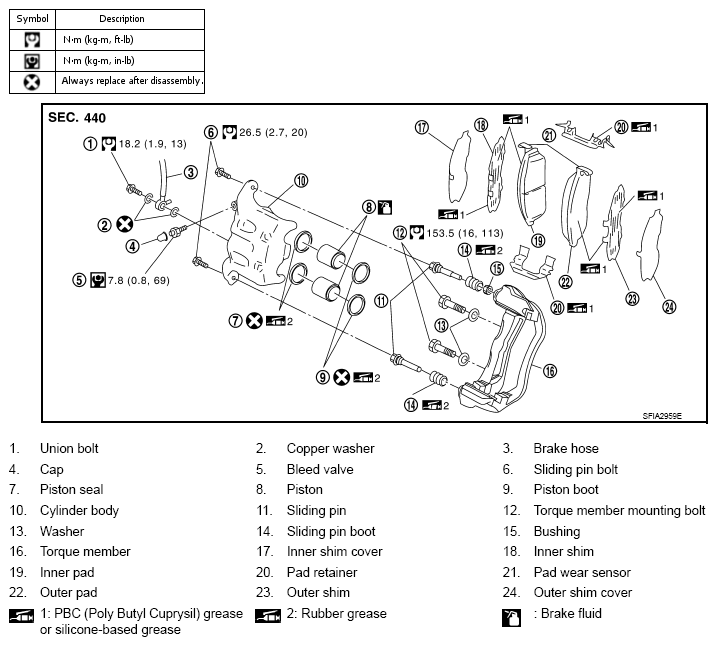

Fig 1: Cylinder Body Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to appropriate information in this article for additional symbol definitions.
