On Board Diagnosis Function: Description

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

The DTC is displayed on the information display by operating the ICC steering switch.

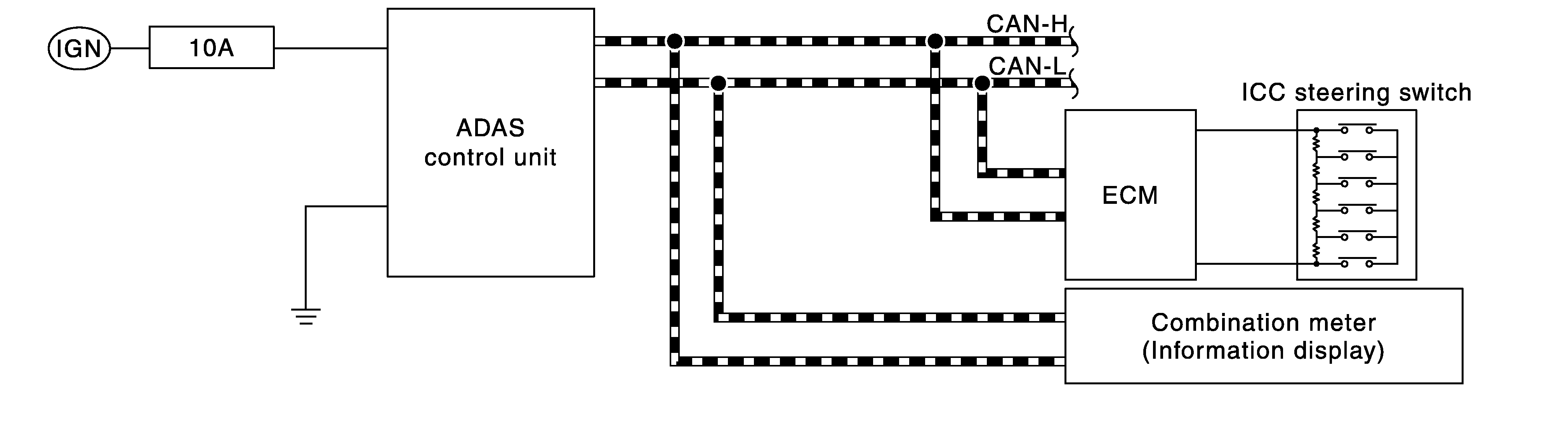

On Board Self-diagnosis System Diagram

Fig 1: On Board Self-Diagnosis System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
