Exploded View

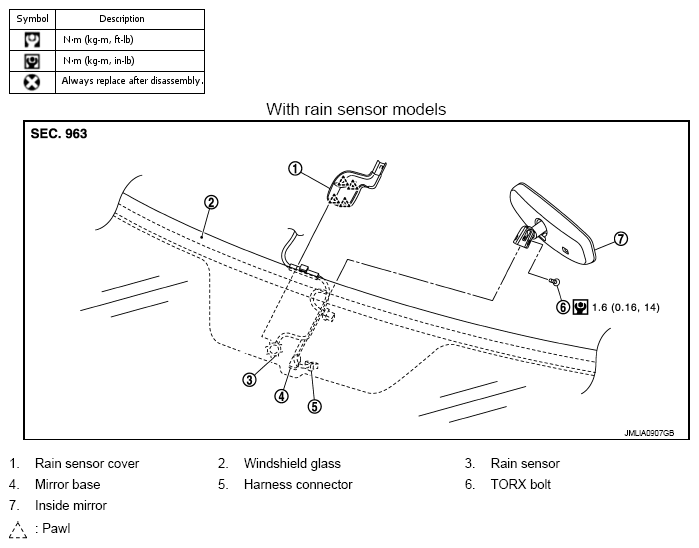

Fig 1: Inside Mirror Replacement Components With Torque Specifications (With Rain Sensor Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

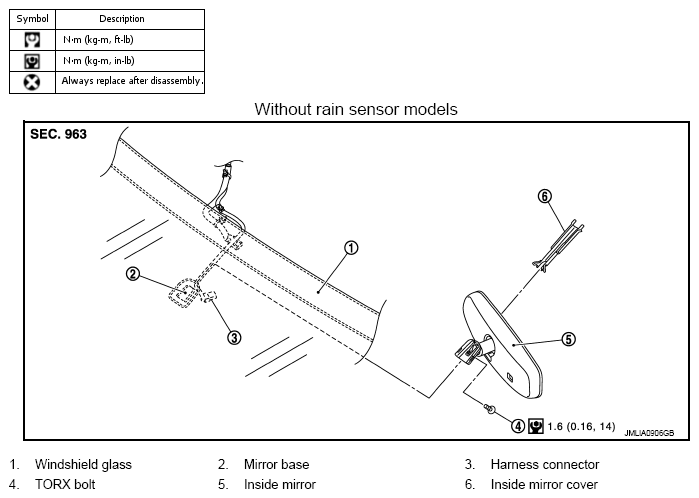

Fig 2: Inside Mirror Replacement Components With Torque Specifications (Without Rain Sensor Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
