Infiniti
›
2011
›
QX56 AWD
›
Repair and Diagnosis
›
Body & Frame
›
Mirror System - Mirrors
›
Removal And Installation
›
Outside Mirror
›
Exploded View
Exploded View

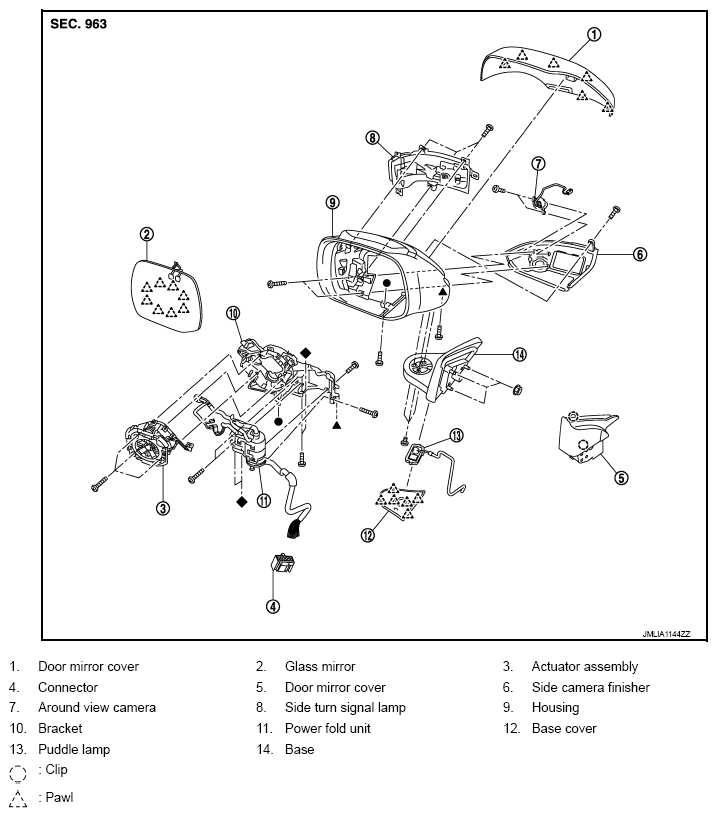

Fig 1: Identifying Outside Mirror Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
