Removal and Installation: Removal

  1. Remove the cluster lid A. Refer to "REMOVAL AND INSTALLATION ".
  2. Disengage the push-button ignition switch fixing pawl and then remove push-button ignition switch.

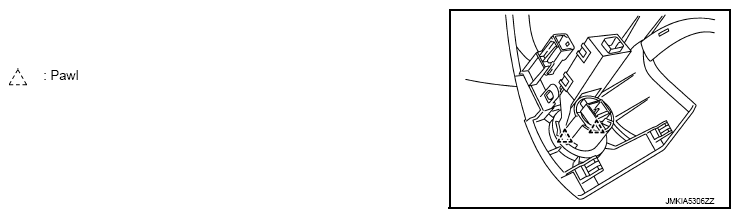

    Fig 1: Identifying Push-Button Ignition Switch Fixing Pawl
    G07024520Courtesy of NISSAN MOTOR CO., U.S.A.
