Engine Control System - Introduction
›
System Description
›
System
›
Air Conditioning Cut Control
›
AIR CONDITIONING CUT CONTROL : System Diagram
AIR CONDITIONING CUT CONTROL : System Diagram

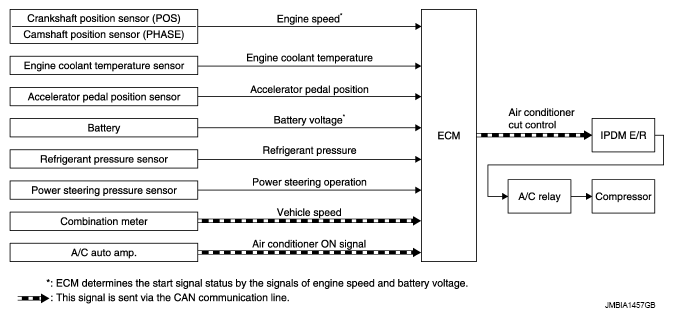

Fig 1: Air Conditioning Cut Control - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
