CONSULT-III Function and System Application*1

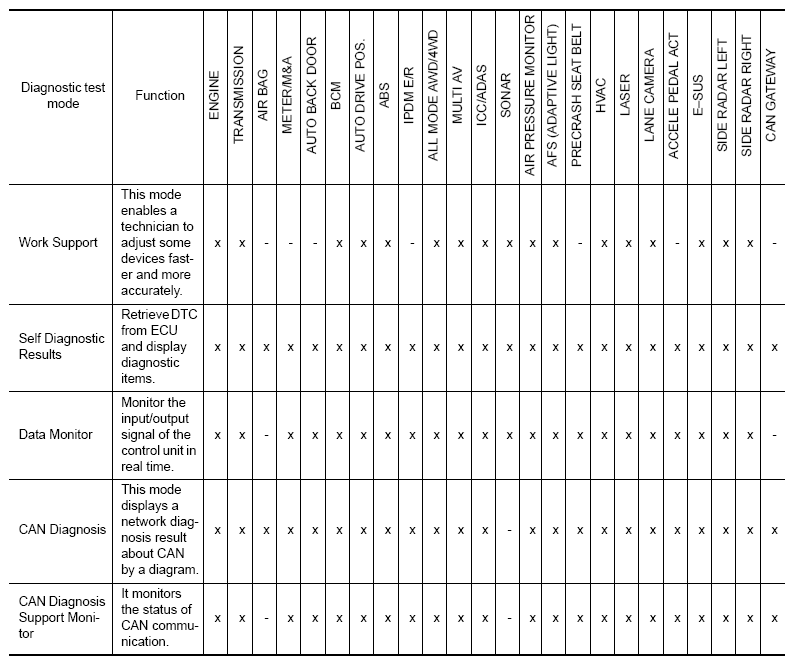

Fig 1: System Application Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

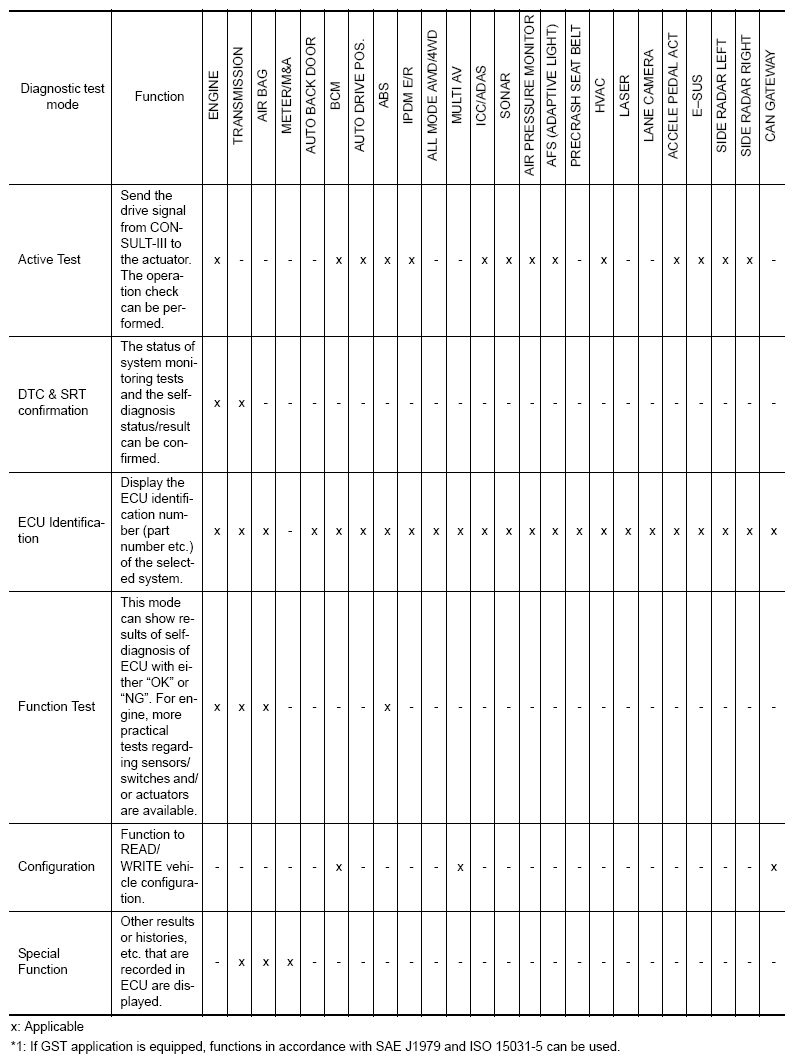

Fig 2: System Application Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
