Symptom Diagnosis
›
System Symptom
›
Symptom Table
›
Symptom Table 2
Symptom Table 2

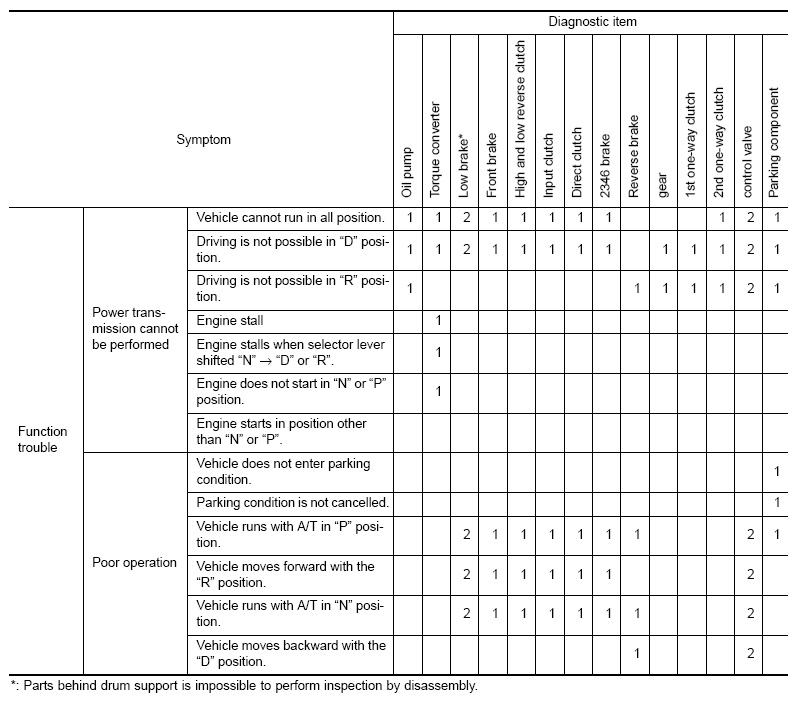

Fig 1: Problem Symptoms Chart (6 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

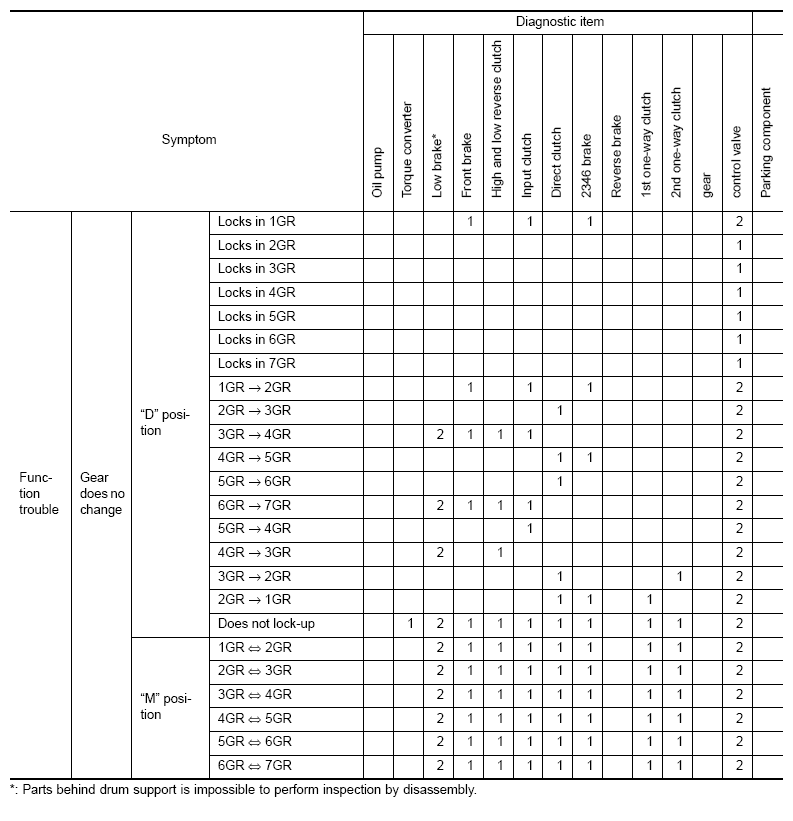

Fig 2: Problem Symptoms Chart (7 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

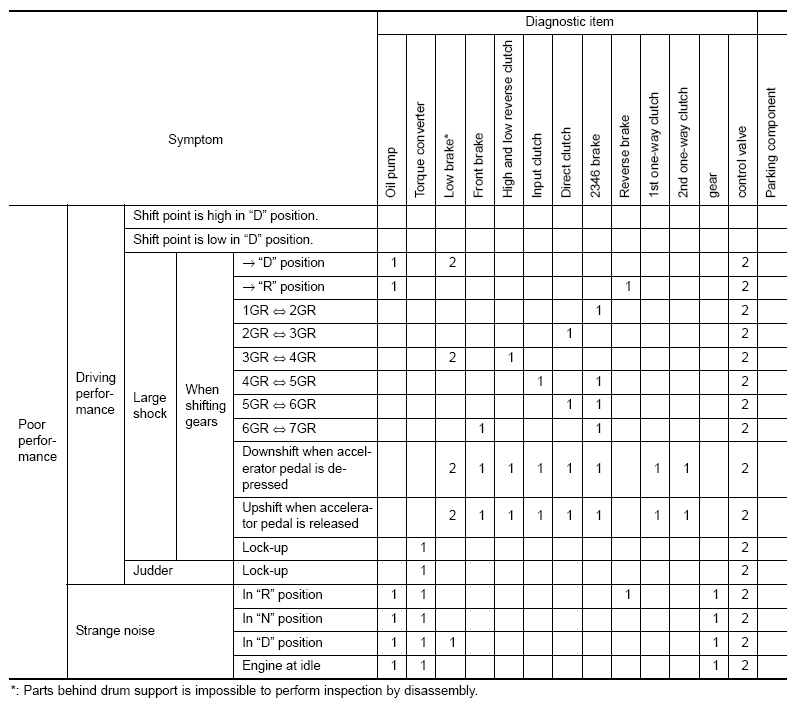

Fig 3: Problem Symptoms Chart (8 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

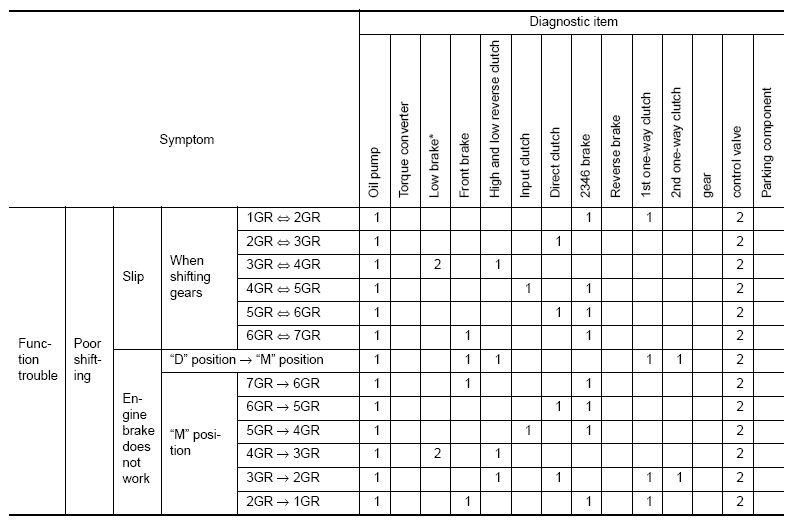

Fig 4: Problem Symptoms Chart (9 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.

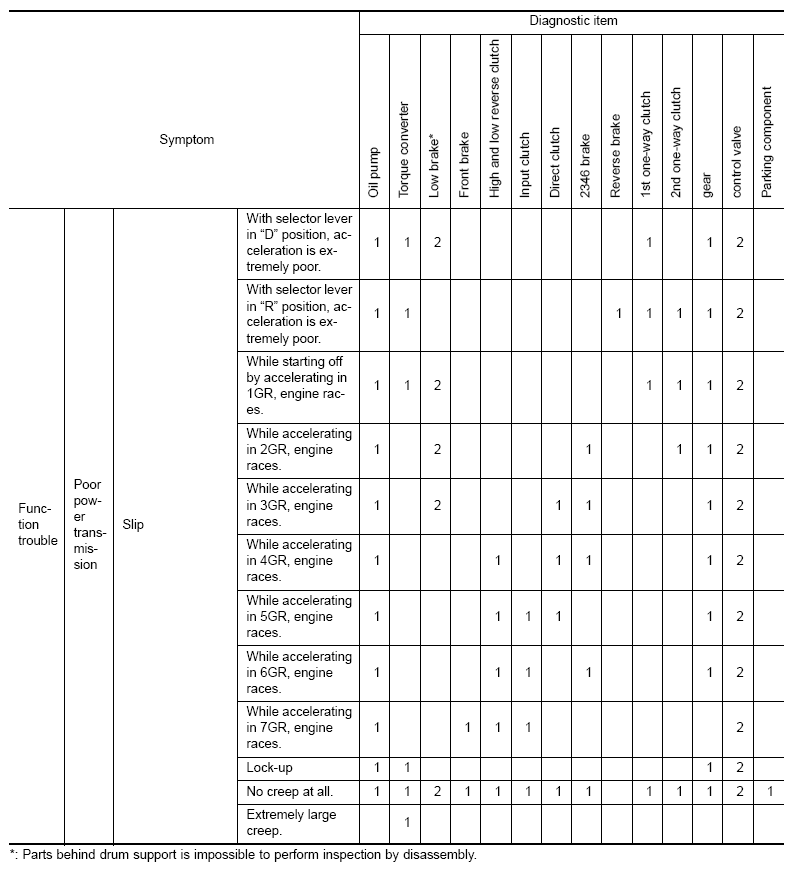

Fig 5: Problem Symptoms Chart (10 Of 10)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
