Transmission
›
Automatic Transmission
›
System Description
›
System
›
A/T Control System
›
A/T CONTROL SYSTEM : System Diagram
A/T CONTROL SYSTEM : System Diagram

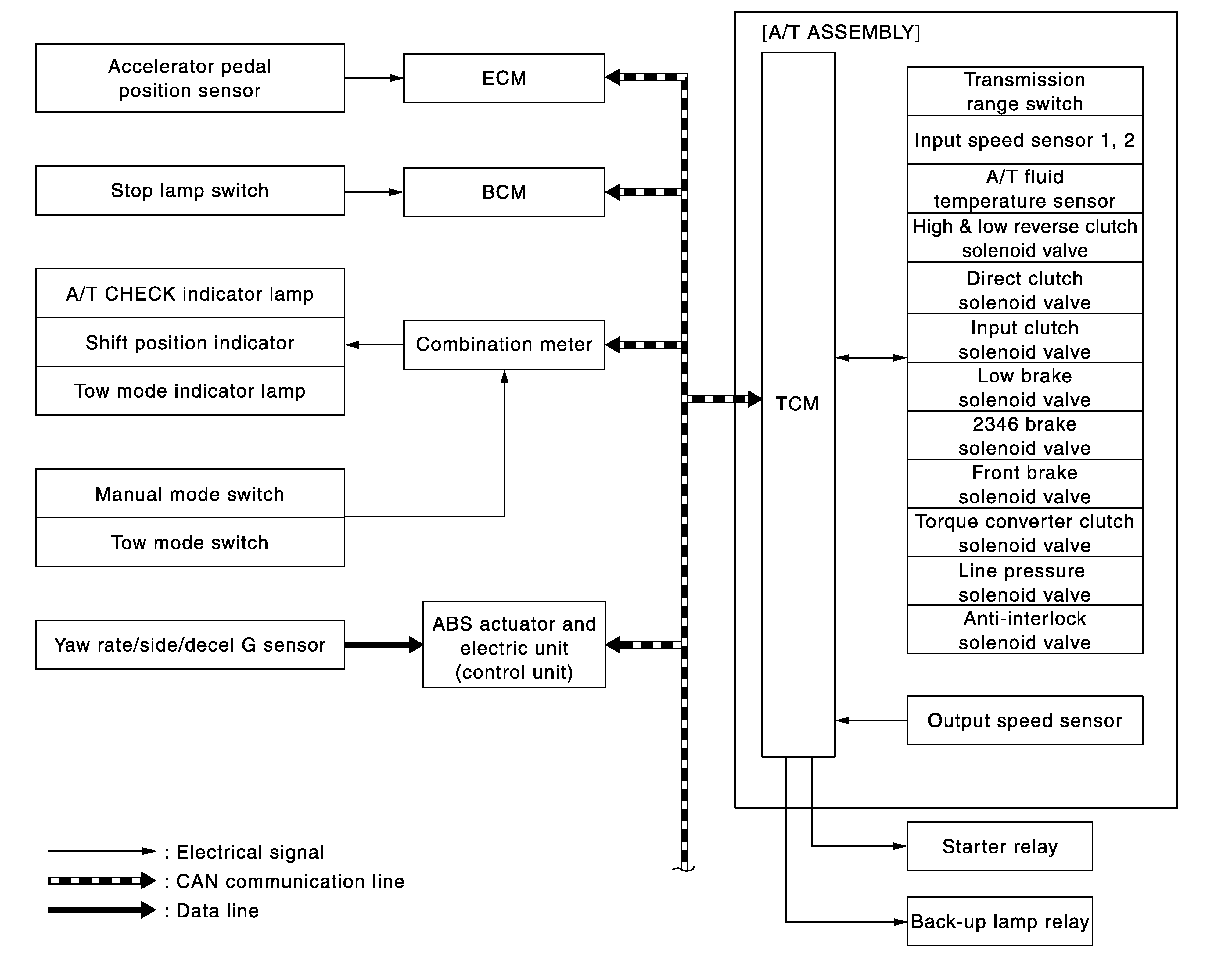

Fig 1: A/T Control System Diagram
