Removal And Installation
›
Front Door Glass
›
Exploded View
Exploded View

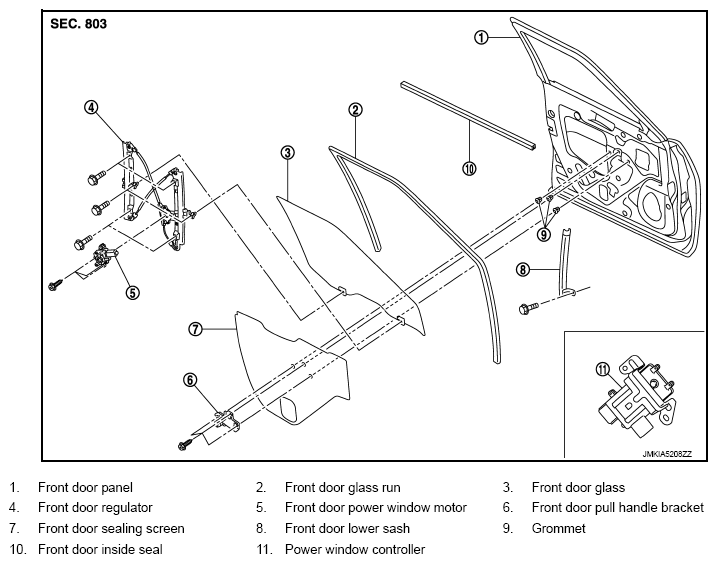

Fig 1: Identifying Front Door Glass Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
