Exploded View

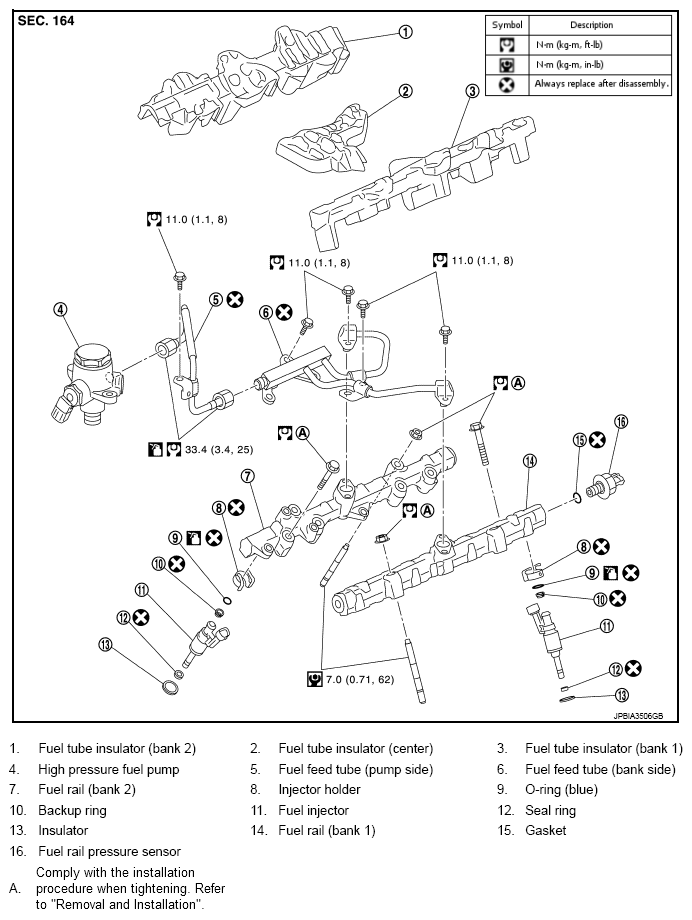

Fig 1: Fuel Injector & Fuel Tube Replacement Components With Torque Specifications
G07022746Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

CAUTION:
  • Never remove or disassemble parts unless instructed as shown in the figure.
  • Be sure to follow the tightening instruction to avoid fuel leakage.
