BCM (Body Control Module)
›
Exploded View
Exploded View
NOTE:
Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM): DESCRIPTION
".

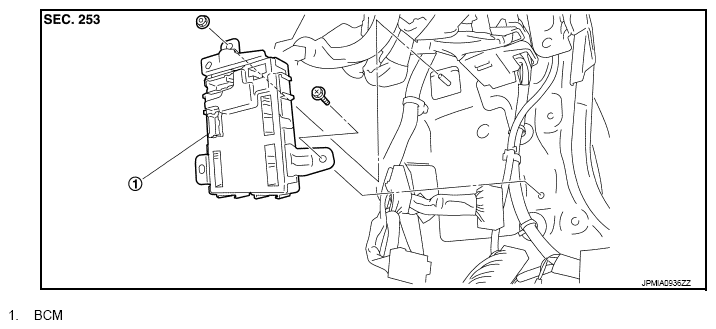

Fig 1: Identifying Body Control Module
Courtesy of NISSAN NORTH AMERICA, INC.
