Data Monitor
Data Monitor
NOTE:
SIGNAL B, SIGNAL C are displayed, but not used.

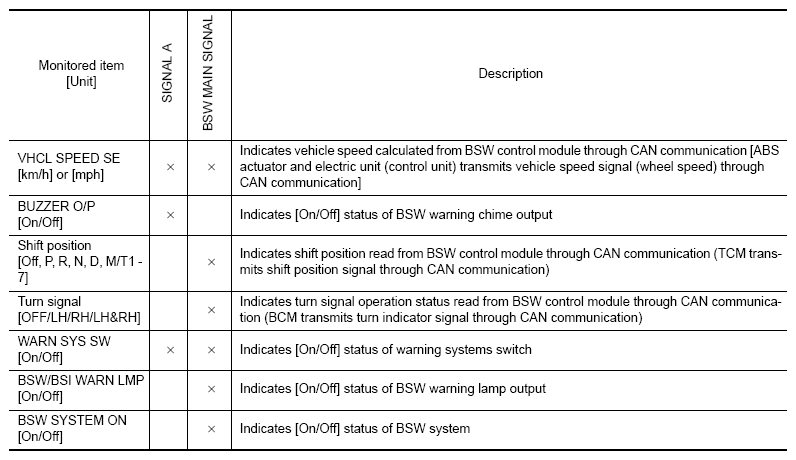

Fig 1: Data Monitored Item Chart
Courtesy of NISSAN NORTH AMERICA, INC.
