Brake Control System (VDC/TCS/Abs)
›
System Description
›
Abs
›
System Diagram
System Diagram

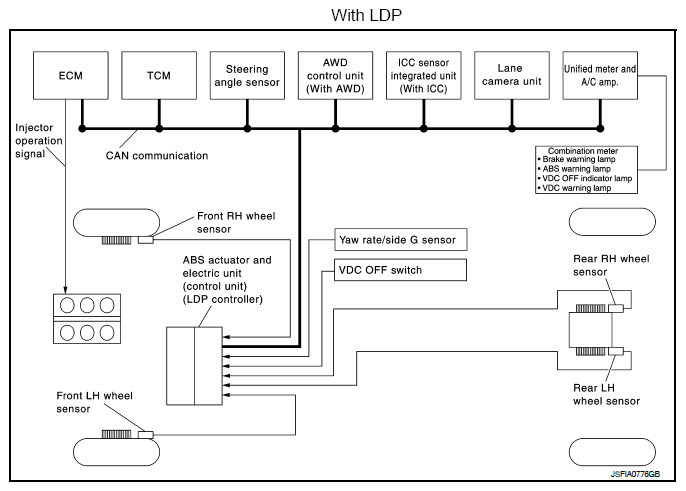

Fig 1: ABS - System Diagram (With LDP)
Courtesy of NISSAN NORTH AMERICA, INC.

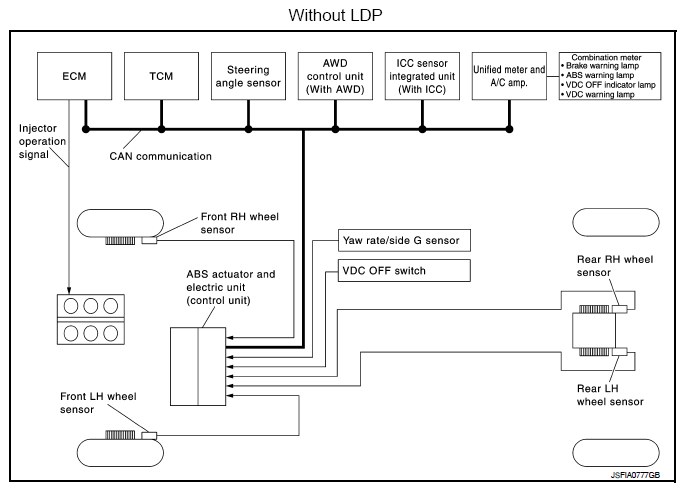

Fig 2: ABS - System Diagram (Without LDP)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
