Engine Lubrication System Schematic

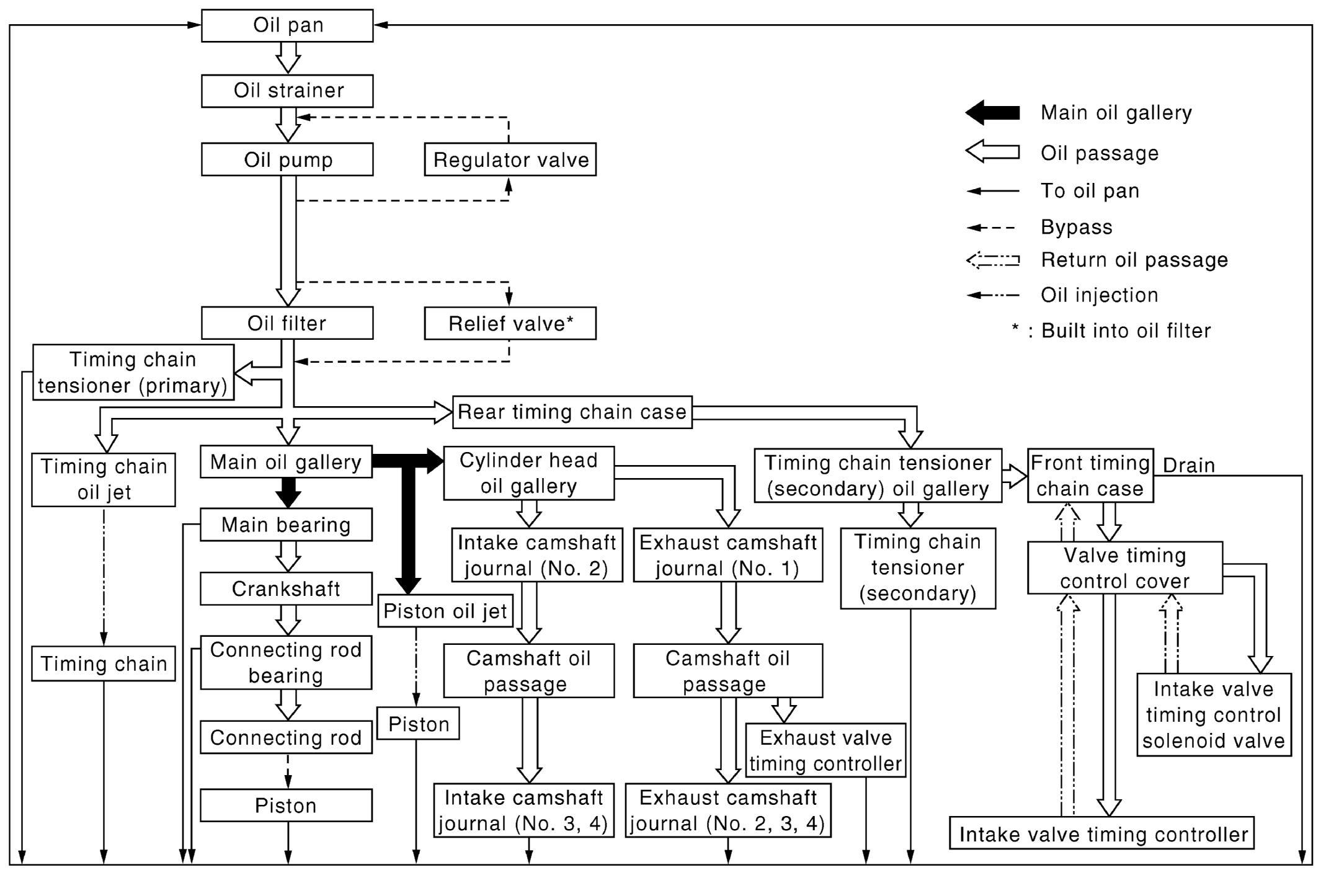

Fig 1: Engine Lubrication System Schematic
G04874687Courtesy of NISSAN NORTH AMERICA, INC.
