Connecting Rod Bend And Torsion

Check with a connecting rod aligner.

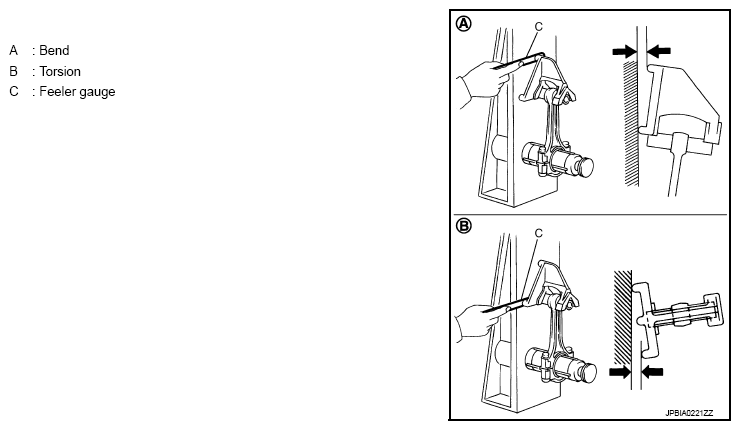

Fig 1: Measuring Connecting Rod Bend And Torsion Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.

Bend limit: Refer to "CYLINDER BLOCK ".

Torsion limit
If it exceeds the limit, replace connecting rod assembly.
